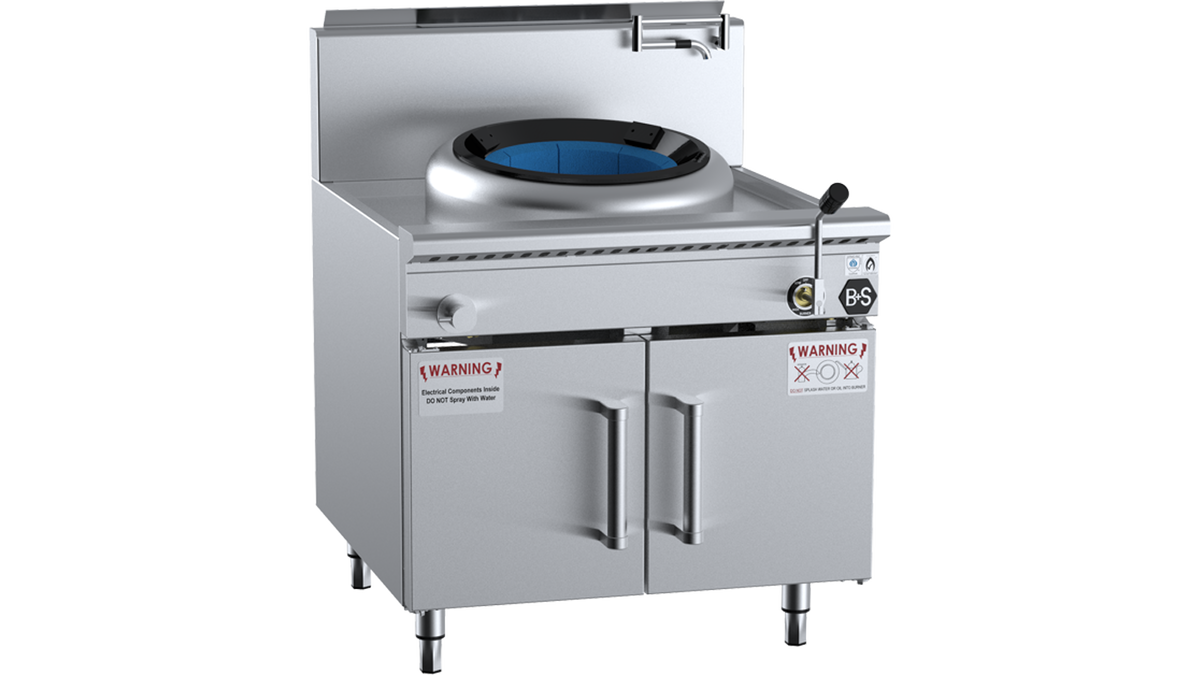

B+S Black CCF-HP1S - 800mm Hi Pac Gas Wok, Range Height 1030mm

B+S Black CCF-HP1S - 800mm Hi Pac Gas Wok, Range Height 1030mm

The B+S Black CCF-HP1S is the Hi Pac wok built to the B+S Black range profile, for kitchens that want a high output wok in line with their ovens and boiling tops. At 840 mm deep and 1030 mm high it sits level with those units, while the CCF-HP1 is 950 mm deep and 1300 mm high. The ring, burner and gas rating are the same.

Key features:

• Durable cast iron ring, 335 mm diameter
• Low noise stainless steel air forced burner, twist off for easy cleaning
• Ceramic lined combustion chamber to increase cooking speed
• No deck cooling needed, with a multi layered insulated pressed top deck, 1.5 mm thick
• German made pilot and self-diagnostic system, automatic ignition and flame failure status indicators
• Lever action gas control for flame modulation, plus a manual laundry arm and spindle
• Front waste gutter and waste shovel, with front access to all components

Specifications:

• Model: CCF-HP1S
• Dimensions: 800 W x 840 D x 1030 H mm
• Gas: 135 MJ/h natural gas, 165 MJ/h LPG
• Electrical: 10A 240V, 1.2 m plug
• Water inlet: 1/2 inch copper
• Waste: 1-1/2 inch BSP male
• Gas connection: 3/4 inch BSP male
• Supply pressure: 0.9 kPa natural gas, 2.3 kPa LPG
• Regulator: supplied inbuilt, in the combination control valve
• Gas approval: GMK 10700

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. The water and waste connections also need a licensed plumber. You will need a 10A 240V power point too, for its 1.2 m plug. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for an 800 x 840 x 1030 mm unit.
• Options: B+S also offers left and right side wings, a joining strip, a knee valve and a wok holder, plus an 800 x 50 mm plinth kit, which only this Hi Pac can take. Ask us for a price.

Compare similar models:

• B+S Black CCF-HP1: same burner and rating, taller and deeper at 950 x 1300 mm
• B+S Black CCF-HP1+1R: 1200 mm with a right rear pot and side prep table
• B+S Black UFWWD-1: 600 mm waterless wok table with a choice of burner and no power point needed

Common questions:

Is the gas rating the same on natural gas and LPG?
No. It is 135 MJ/h on natural gas and 165 MJ/h on LPG, so your gas fitter should size the supply to the figure for your gas type.

Should I choose this or the CCF-HP1?
Choose this one if the wok sits in a line of 1030 mm high equipment. The CCF-HP1 suits a position of its own, where the extra height and depth are not a problem.

If it is waterless, why does it have a water line?
Waterless means the deck needs no cooling water, which cuts water use. It still has a 1/2 inch copper water inlet and a waste, along with a laundry arm and spindle.

See all our commercial wok burners.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
