B+S Black GRP-12BM - 1200mm Gas Grill Plate Bench Mounted

B+S Black GRP-12BM - 1200mm Gas Grill Plate Bench Mounted

The GRP-12BM is the largest bench mounted grill plate in the B+S Black range, the same 1200mm wide, 20mm thick plate as the GRP-12 in a 425 mm high frame with no stand. It suits a high volume kitchen with a long run of bench and no need for an undershelf. The cooking area is 1195 x 550 mm, heated by four 22 MJ burners.

Key features:

• Cooking area of 1195mm W x 550mm D
• 20mm thick heavy duty mild steel grill plate, top welded with a smooth finish
• 4 aluminised tube burners at 22 MJ each, one per 300mm section
• Flame failure included as standard, with piezo ignition to the pilot on the grill plate burner
• Multi-setting gas valve for greater control of the flame
• Easy to clean fat spillage tray
• AISI 304 grade stainless steel with a heavy duty stainless steel frame
• Easy access to all components through the front panels

Specifications:

• Model: GRP-12BM
• Dimensions: 1200 W x 840 D x 425 H mm
• Gas: 88 MJ/h natural gas, 88 MJ/h LPG
• Cooking area: 1195 W x 550 D mm
• Grill plate: 20mm thick mild steel
• Burners: 4 x 22 MJ aluminised tube
• Gas connection: 3/4 inch BSP male
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Gas regulator: included with the unit
• Gas approval: GMK 10686

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 1200 x 840 x 425 mm unit.
• Options: B+S also offers a chrome plated grill plate for this size. Ask us for a price.

Compare similar models:

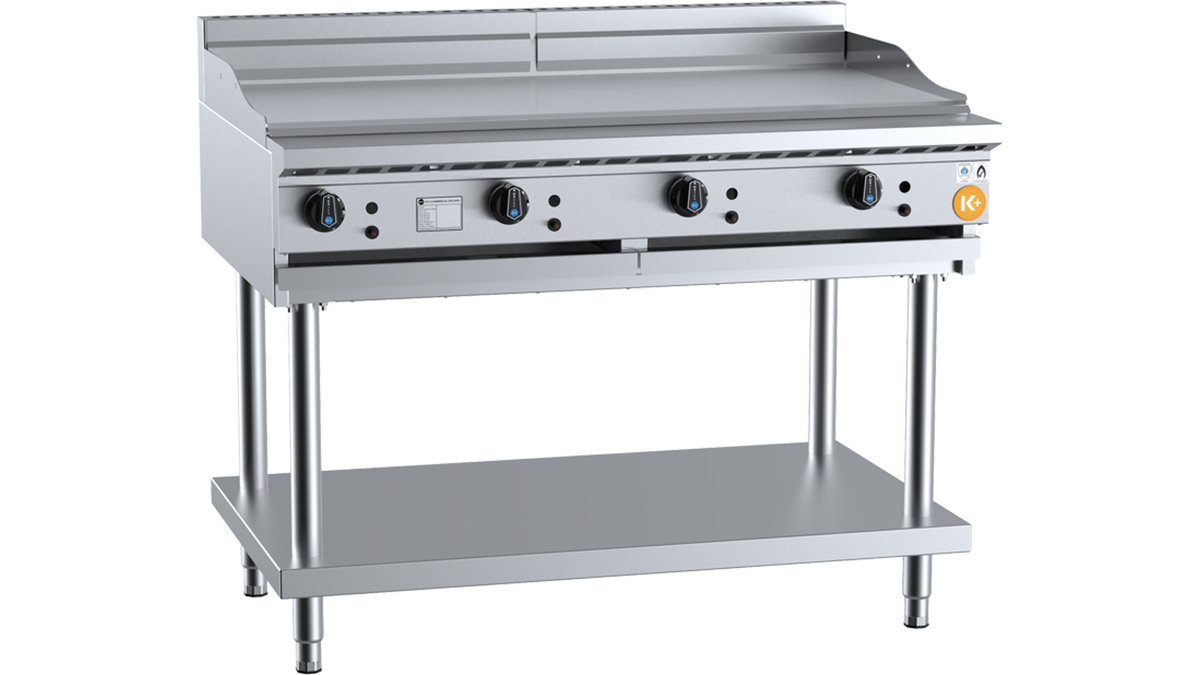

• GRP-12: the same plate on its own stand with an undershelf, 1030 mm high
• GRP-9BM: 900mm wide, 895 x 550 mm cooking area, same 20mm thick plate, 66 MJ/h
• BT-GRP6-CBR6BM: same 1200mm width, split between a 600mm grill plate and a 600mm char broiler
• BT-SB4-GRP6BM: same 1200mm width, split between four open burners and a 600mm grill plate

Common questions:

What size bench do I need?
The unit is 1200 mm wide and 840 mm deep, so you need a bench that takes that footprint, with the 425 mm unit height clear under your canopy.

Can I cook different foods across the plate?
Yes. There is 1195mm of plate with a burner under each 300mm section, and each of the four burners has its own multi-setting gas valve.

One GRP-12BM or two GRP-6BM units?
Both take 1200 mm and carry the same gas rating. The GRP-12BM gives one unbroken 20mm plate. Two GRP-6BM units give two separate 16mm plates and need two gas connections, but each piece is easier to lift onto a bench.

See all our commercial hot plates.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
