B+S K+ KNC-SW3 - 450mm Gas Soup Warmer 3 x 8L Pots

B+S K+ KNC-SW3 - 450mm Gas Soup Warmer 3 x 8L Pots

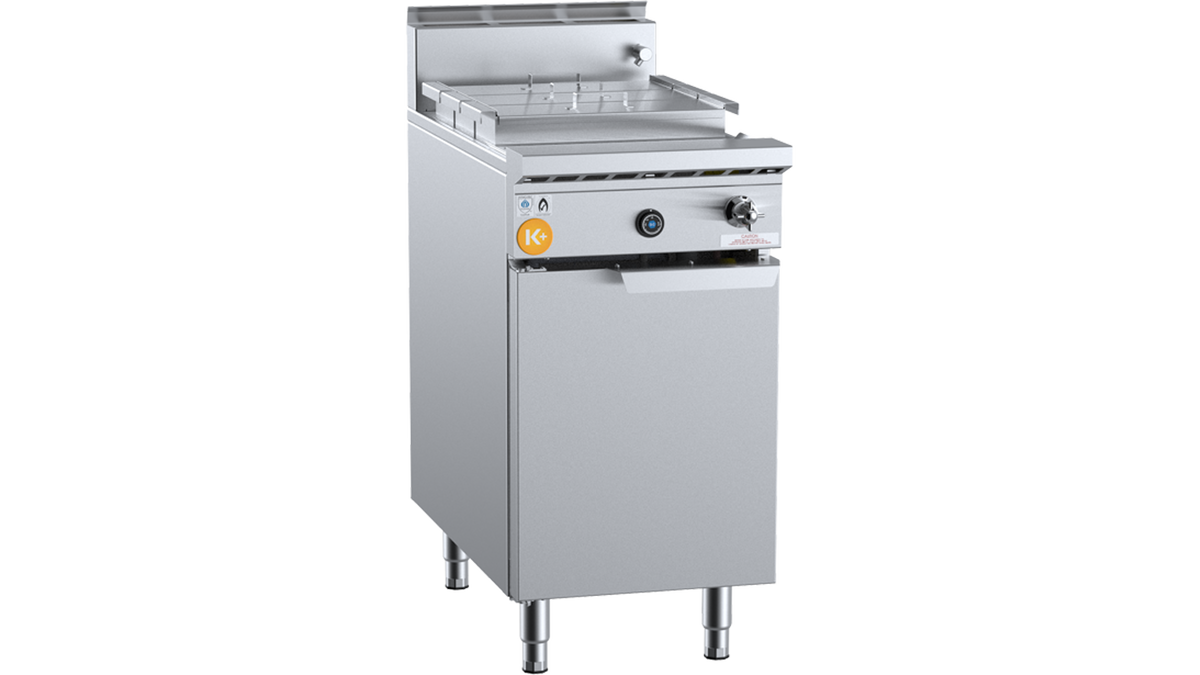

The K+ KNC-SW3 is a gas soup warmer built on the K+ noodle cooker body, with three 8 L pots in a thermostatically controlled 30 L water tank. It suits noodle houses, canteens and buffets that need soups or broths kept hot and ready to ladle. It is the same 450 mm wide as the KNC-6, but carries pots rather than baskets.

Key features:

• Three 8 L soup warmer pots provided
• AISI 316 marine grade stainless steel tank, 2 mm thick
• Efficient multi-jet target burner with thermostatically controlled water temperature
• In-built water overflow helps remove water impurities
• Manually operated water spindle to control the tank refill
• Flame failure device as standard, with piezo ignition to the pilot
• AISI grade stainless steel, with front access to all components

Specifications:

• Model: KNC-SW3
• Dimensions: 450 W x 840 D x 1030 H mm
• Gas: 70 MJ/h natural gas, 75 MJ/h LPG
• Water capacity: 30 L
• Pan: 455 mm D x 300 mm W x 120 mm H (base plate to water level mark)
• Soup pots: 3 x 8 L, provided
• Water inlet: 1/2 inch BSP female
• Drain and overflow: 1 inch BSP male
• Weight: 85 kg
• Gas connection: 3/4 inch BSP male, combination control valve with inbuilt regulator supplied
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Gas approval: GMK 10682

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. The water supply, drain and overflow also need connecting, by a licensed plumber. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 450 x 840 x 1030 mm unit, about 85 kg.
• Options: B+S also offers left and right side wing assemblies, a joining strip for lining up with other cookers and non-swivel rear castors, set of two. Ask us for a price.

Compare similar models:

• K+ KNC-6: same body with six noodle baskets for boiling, not holding

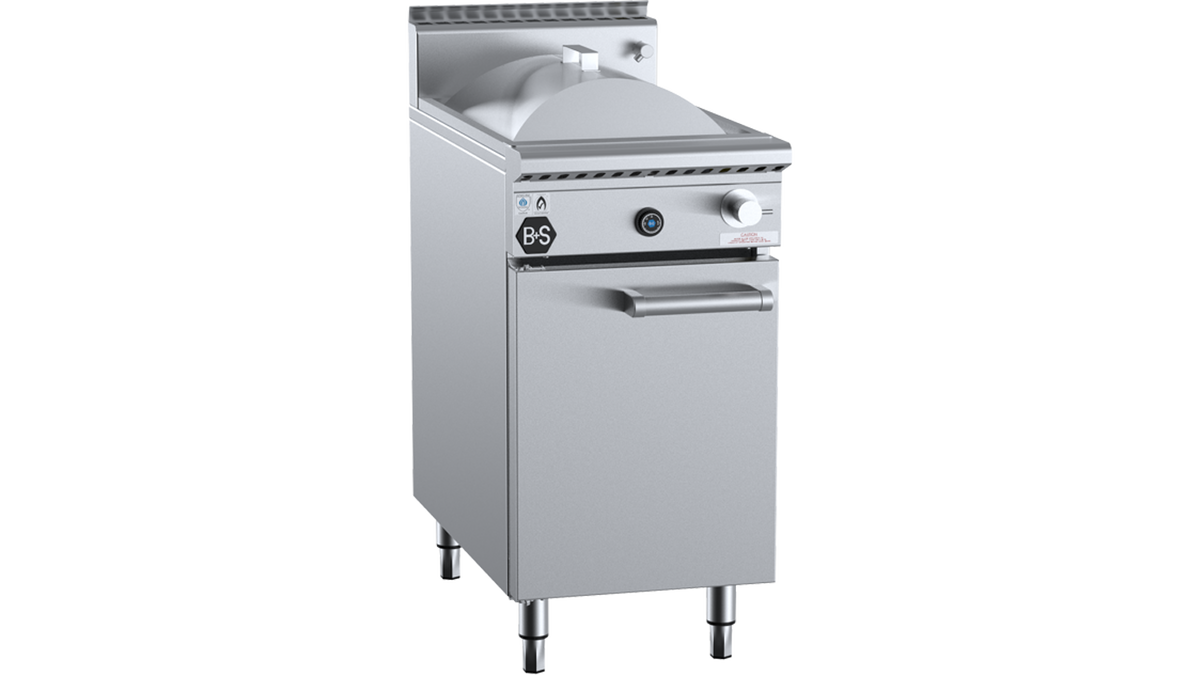

• K+ KNC-CF: same body with a cheung fun steaming insert
• B+S Black NC-SW3: three pots in the B+S Black range, with a 24 month warranty

Common questions:

How much soup does it hold?
Three 8 L pots gives you up to 24 L of soup at a time, so it holds three different soups or broths on the go.

Why does a soup warmer need a water connection?
It is built on the same 30 L water tank as the KNC-6, with the water temperature thermostatically controlled. The water inlet and spindle refill that tank, and the drain and overflow carry water away.

Can I use it to cook noodles as well?
It comes set up for pots, not baskets. The KNC-6 is the same size and gas rating if you want to run one beside it.

See all our commercial noodle cookers and steamers.

Warranty: 18-month B+S parts and labour warranty, from the date of installation.
