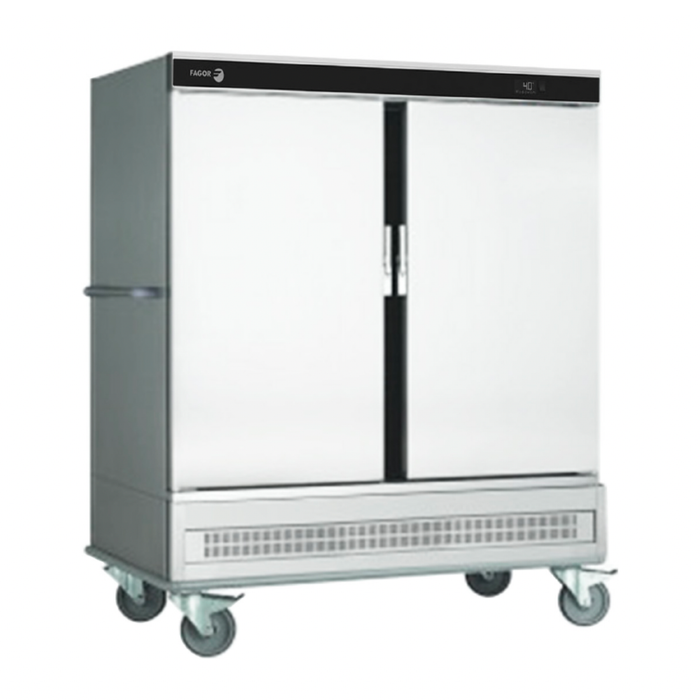

Fagor ECFF-40HC - 2 Door Refrigerated Distribution Trolley

Fagor ECFF-40HC - 2 Door Refrigerated Distribution Trolley

For large functions, banqueting and institutional catering, the Fagor ECFF-40HC is a two-door refrigerated distribution trolley that takes 40 GN 2/1 trays and holds them at +2°C to +8°C. Plate cold dishes in the kitchen, load them in, and roll the whole lot to the point of service. It is 1516mm wide, with more than double the tray capacity of the single-door ECFF-20HC.

Key features:

• Operating temperature +2°C to +8°C, climate class 4
• Refrigeration unit with fans built into the chamber, for quick cool-down and even air distribution
• Electronic controller with digital display for temperature and defrost
• Double-wall stainless steel cabinet with CFC-free polyurethane insulation, 40 kg per cubic metre density
• Two doors with self-closing hinges that shut fully once closer than 90°
• Key-lockable doors
• Four 125mm soundproofed swivel castors, two braked, with rubber corner bumpers
• 60mm guide spacing, with 10 stainless steel GN 2/1 grids supplied

Specifications:

• Model: Fagor ECFF-40HC
• Capacity: 40 GN 2/1 trays, 60mm guide spacing
• Dimensions: 1516 W x 864 D x 1775 H mm
• Weight: 182 kg
• Temperature range: +2°C to +8°C
• Climate class: 4
• Power: 0.33 kW, 240V single phase, 10 A
• Supplied: 10 x AISI-304 stainless steel GN 2/1 grids (epoxy grids available on request)
• Packed size for delivery: 1545 x 950 x 1870 mm, 193 kg

Good to know before you buy:

• Access: packed, it is 1545mm wide, 1870mm high and 193 kg. Measure doorways, lifts and corridors on your route, as it needs to move freely in service. Delivery is by tailgate truck to the front of your premises.
• Power: 240V single-phase power, rated at 10 A.
• Airflow: keep the vents clear and leave space around the trolley when it is running.
• Not included: GN containers and trays are sold separately as accessories.

Compare similar models:

• Fagor ECFF-20HC: single door, 826mm wide, 17 GN 2/1 levels
• Glacian BCC0016: refrigerated banquet cart with 16 x 2/1 GN levels

Common questions:

How many grids come with it?
Ten stainless steel GN 2/1 grids are supplied. It takes up to 40 GN 2/1 trays at 60mm spacing, and epoxy grids are available on request. Ask us for extras.

What temperature does it hold?
+2°C to +8°C, controlled by an electronic controller with a digital display that also manages defrosting.

Do the doors close by themselves?
Yes. The hinges have an automatic closing mechanism, so a door left at less than 90° swings fully shut. Both doors also lock with a key.
