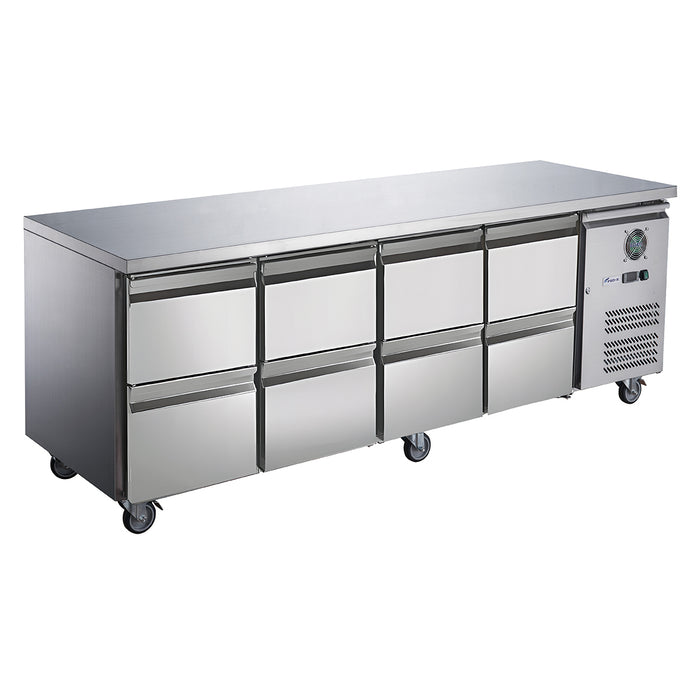

FED-X XUB7C22S4D - Eight Drawer Bench Fridge 2230 x 700mm 553L
FED-X XUB7C22S4D - Eight Drawer Bench Fridge 2230 x 700mm 553L
SKU: XUB7C22S4D
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour, and a further 2 years of parts-only cover when you register it with FED within 14 days of invoice. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 2230 W x 700 D x 850 H mm. Check doorways and access on the way in.
- Weight: 150 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 345W, 240V, 10 A plug.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
FED-X XUB7C22S4D - Eight Drawer Bench Fridge 2230 x 700mm 553L
For long prep lines and high-volume kitchens, the FED-X XUB7C22S4D packs eight heavy-duty GN 1/2 drawers under a 2230mm stainless steel bench. It offers 553 litres gross capacity, fan-forced cooling and a rating for kitchens up to 43°C, so it copes with the heat of a busy cookline. It is the largest drawer fridge in the XUB7 range and the drawer version of the four-door XUB7C22S4V.
Key features:
- Eight heavy-duty GN 1/2 drawers, two in each of the four sections
- Fan-forced cooling with EBM-PAPST evaporator and condenser fans
- Embraco/Secop compressor, Dixell digital controls and rapid temperature recovery
- Stainless steel interior and exterior with rounded corners for hygiene
- 60mm HFC- and CFC-free foam body insulation
- Tropicalised for Australian conditions
- Heavy-duty castors with front-wheel brakes; can sit against a wall
- R290 natural refrigerant
Specifications:
- Model: FED-X XUB7C22S4D
- Capacity: 553 litres gross
- Drawers: 8 x GN 1/2 size
- Dimensions: 2230 W x 700 D x 850 H mm
- Internal dimensions: 1669 W x 580 D x 564 H mm
- Weight: 150 kg
- Temperature range: -2°C to +8°C
- Maximum room temperature: 43°C
- Refrigerant: R290
- Power: 345W, 240V, 10 A plug
- Packed size for delivery: 2260 W x 730 D x 910 H mm
Good to know before you buy:
- Access: packed, it is 2260mm long, and the unit itself weighs 150 kg. It is delivered by tailgate truck to the front of your premises; standard delivery doesn't include moving it inside or unpacking, so plan the route and the manpower.
- Power: a standard 240V, 10 A power point is enough.
- Airflow: leave the vents clear and allow a little space around it so heat can get away.
Compare similar models:
- FED-X XUB7C22S4V: same length with four solid doors and shelves
- FED-X XUB7C22G4V: same length with four glass doors and LED lighting
- FED-X XUB7C18S3D: six drawers, 1795mm, 417 litres
- FED-X XCB-72: four-drawer refrigerated chef base, 1838mm, 450 litres
Common questions:
How are the eight drawers laid out?
There are four sections across the front, each with two GN 1/2 drawers, one above the other.
Can I use the top for prep?
Yes. The stainless steel top works as a bench, and the unit is 850mm high and 700mm deep.
Do you install it?
We supply the equipment only. Plug it into a standard 10 A outlet; a licensed electrician should install any new power point.
See all our chef drawers.
Warranty: 2 years parts and labour, and a further 2 years of parts-only cover when you register it with FED within 14 days of invoice.
