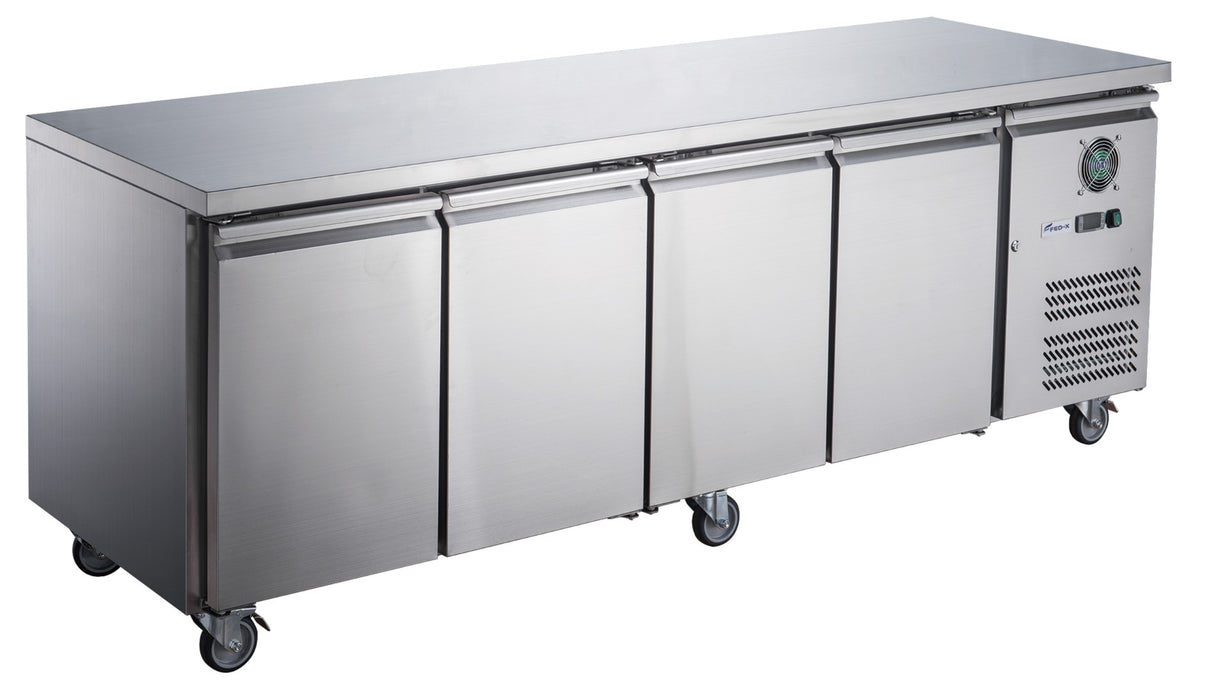

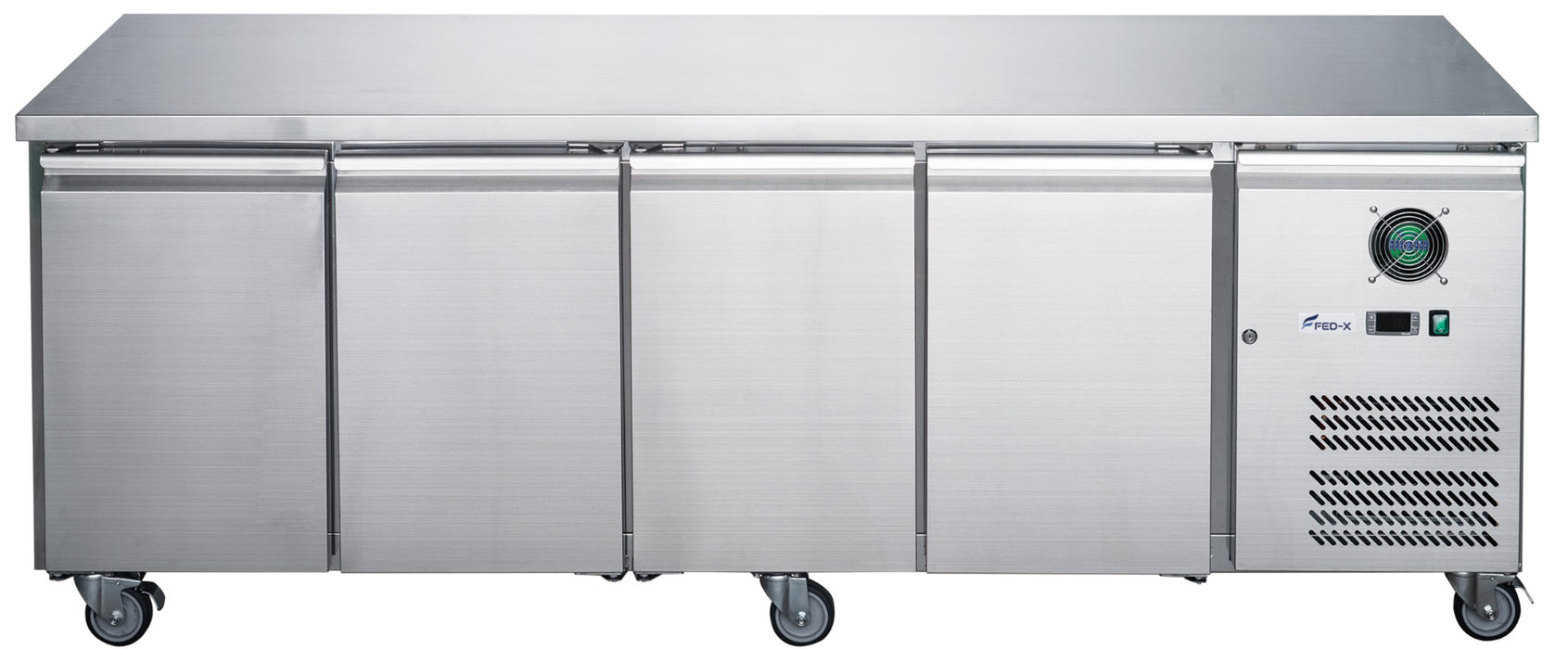

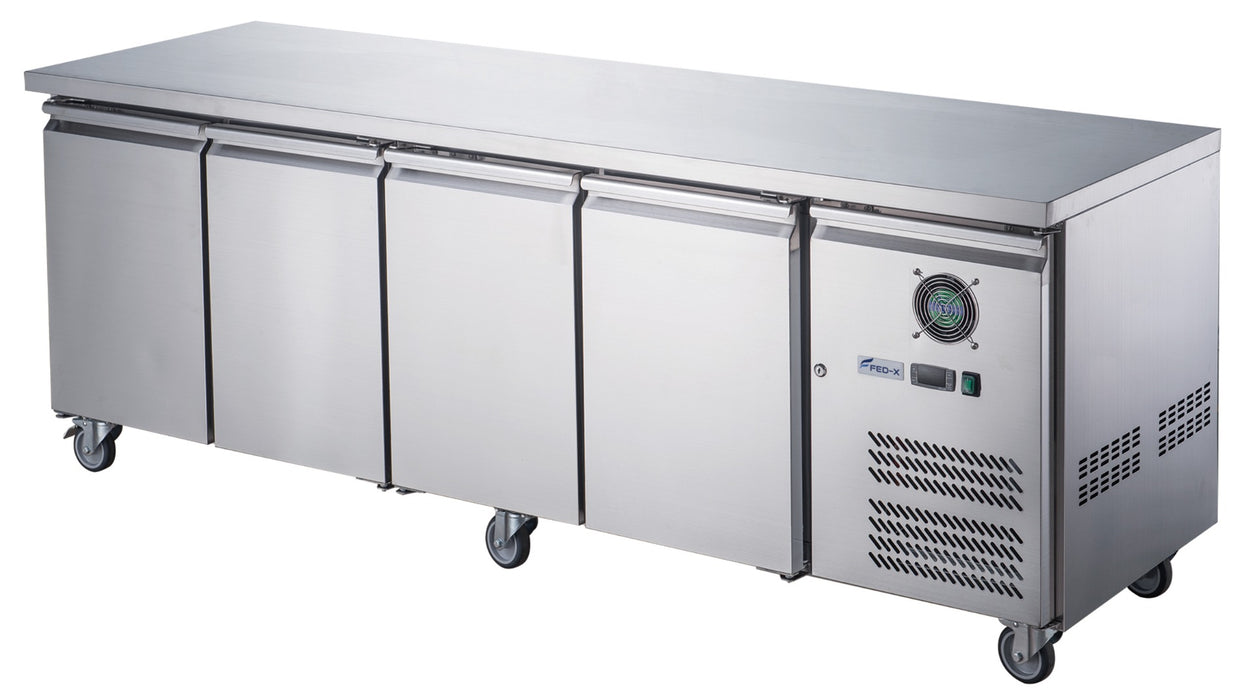

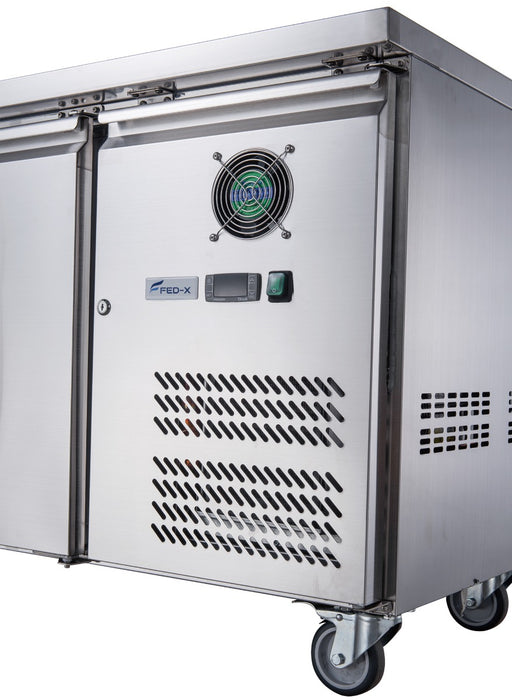

FED-X XUB7C22S4V - Four Door Bench Fridge 2230 x 700mm 553L

FED-X XUB7C22S4V - Four Door Bench Fridge 2230 x 700mm 553L

The FED-X XUB7C22S4V is the biggest solid door bench fridge in the 700mm-deep XUB7 range: four doors, 2230mm of stainless steel bench top and 553 litres of gross capacity. It suits high-volume kitchens, clubs and caterers who want a full prep line with refrigeration underneath. Fan-forced cooling holds -2°C to +8°C in rooms up to 43°C. If you prefer to see the stock, the XUB7C22G4V is the glass door version, and the XUB7C22S4D swaps the doors for eight drawers.

Key features:

• Four self-closing solid doors with heavy-duty magnetic door seals

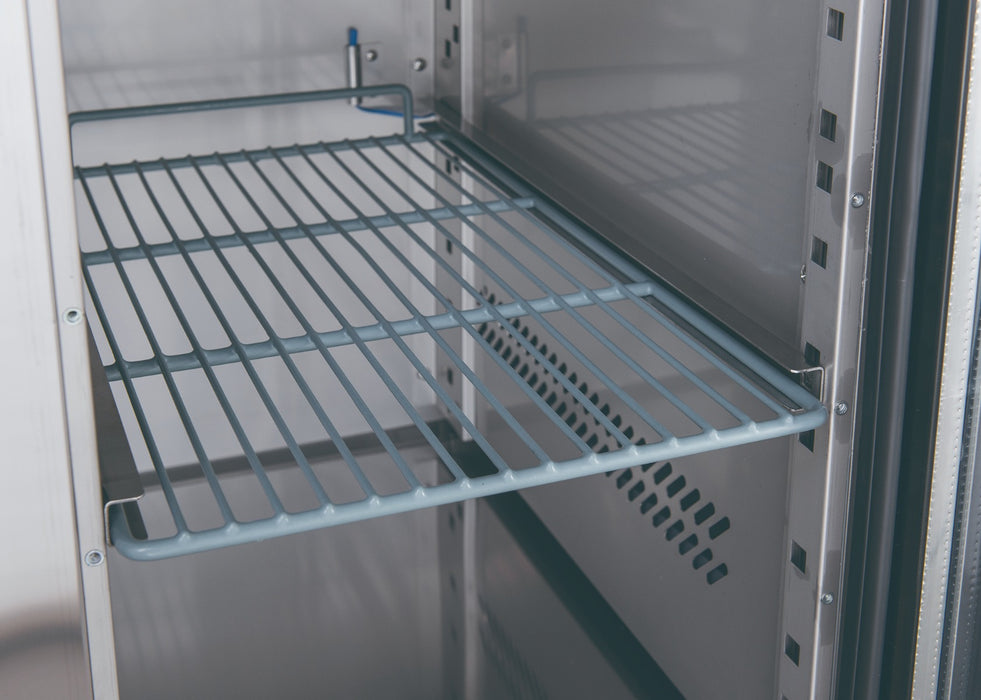

• 553 litres gross storage with one GN 1/1-compatible shelf per door (40 kg rating each)
• Fan-forced cooling with EBM-PAPST evaporator and condenser fans for fast recovery

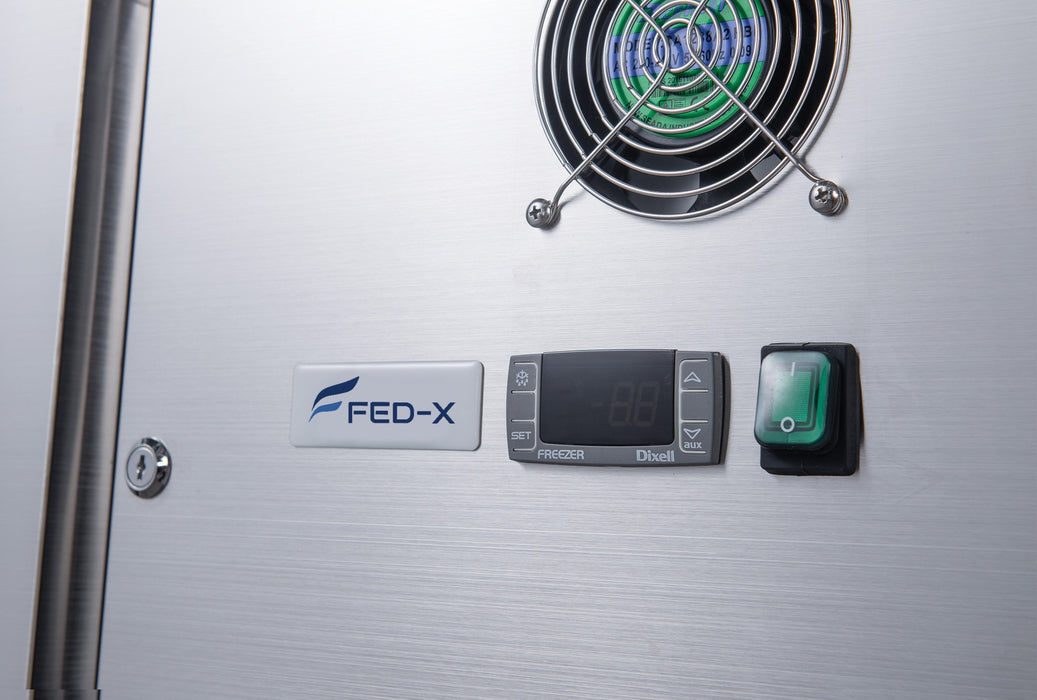

• Dixell digital controller, Embraco/Secop compressor and auto defrost
• Stainless steel inside and out, rounded internal corners for hygiene
• 60mm HFC- and CFC-free foam insulation, tropicalised for Australian conditions
• Heavy-duty castors with front-wheel brakes; can be placed against a wall
• R290 natural refrigerant

Specifications:

• Model: FED-X XUB7C22S4V
• Capacity: 553 litres gross, 415 litres net
• Dimensions: 2230 W x 700 D x 850 H mm
• Internal dimensions: 1669 W x 580 D x 564 H mm
• Weight: 150 kg
• Temperature range: -2°C to +8°C
• Maximum room temperature: 43°C
• Refrigerant: R290
• Power: 345W, 240V, 10 A plug
• Shelves: 4 (one per door), 40 kg load each
• Packed size for delivery: 2260 W x 730 D x 910 H mm

Good to know before you buy:

• Access: at 2260mm long packed and 150 kg, this is a big unit to move. It arrives by tailgate truck at the front of your premises; standard delivery doesn't include carrying it inside or unpacking, so plan the route and have enough people on hand.
• Power: a standard 10 A, 240V power point is all it needs.
• Airflow: leave the vents unobstructed and give it some breathing room, particularly in a hot kitchen.
• Options: FED offers a matching splashback top, extra shelf sets and door-replacement drawer kits. Ask us.

Compare similar models:

• FED-X XUB7C22G4V: same length with four glass doors and LED lighting
• FED-X XUB7C22S4D: same length with eight GN 1/2 drawers
• FED-X XUB7C18S3V: three-door model, 1795mm, 417 litres
• FED-X XUB6C22S4V: four-door 600mm-deep version, 449 litres

Common questions:

What's the difference between gross and net capacity?
Gross (553 litres) is the total cabinet volume. Net (415 litres) is the usable storage volume FED quotes.

Does it need three-phase power?
No. It draws 345W and runs from a standard 240V, 10 A plug.

Do you install it?
We supply the equipment only. Once it is in position you simply plug it in. If a new outlet is needed, use a licensed electrician.

See all our undercounter fridges.

Warranty: 2 years parts and labour. Register it with FED within 14 days of invoice and you get an extra 2 years of parts-only cover.
