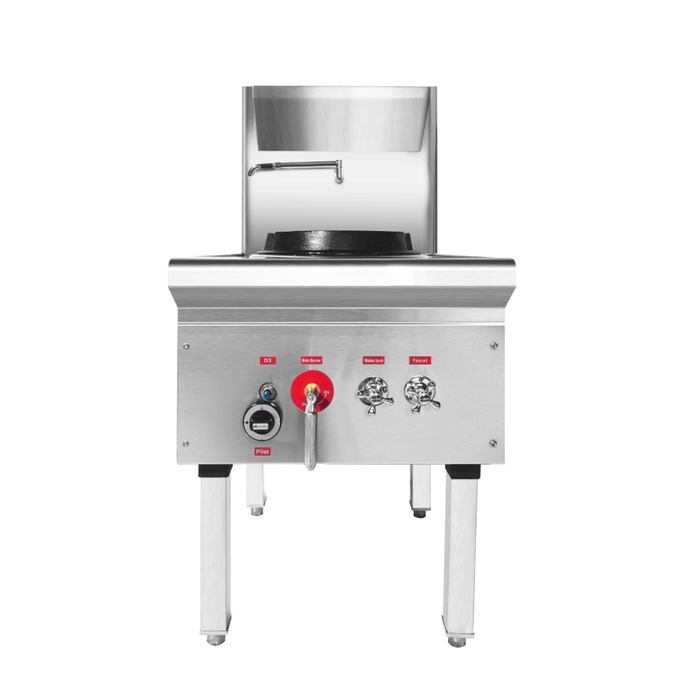

Gasmax WW-1 - Waterless Single Wok Burner

Gasmax WW-1 - Waterless Single Wok Burner

Traditional wok tables run water across the top all day to keep it cool. The Gasmax WW-1 does not: its air-gap cooling design keeps the one-piece stainless steel top cool, clean and free from buckling without running water, which saves on water bills. This single-hole model suits a cafe, takeaway or restaurant adding wok cooking, and you can choose the standard duckbill burner or a chimney burner, in natural gas or LPG. The WW-2 and WW-3 offer two and three wok holes.

Key features:

• Waterless air-gap cooling: no running water needed to keep the top cool
• One-piece pressed stainless steel wok top that FED says will never crack or leak

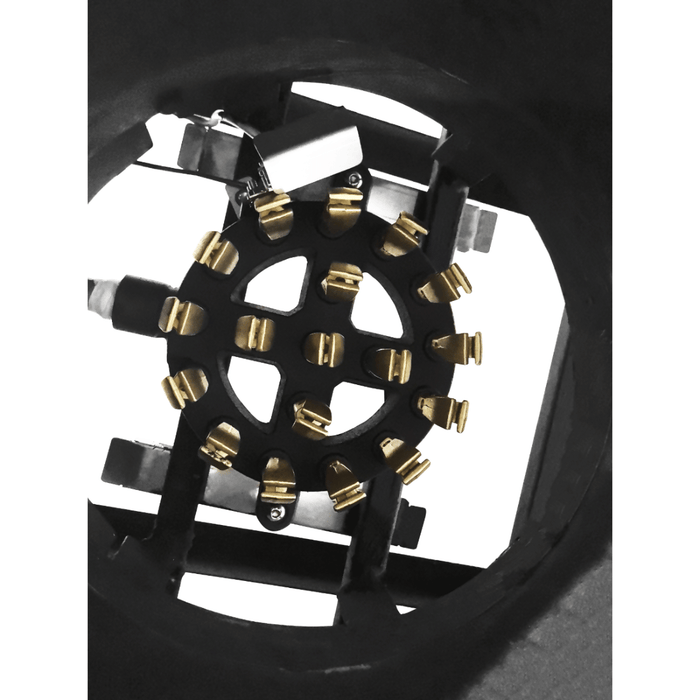

• Choice of duckbill burner (standard) or chimney burner
• Light, smooth knee-operated wok valve
• Master gas shut-off valve on the front panel
• Cast iron wok ring
• Front gutter with a filter system to keep solids out of the drain
• Legs, back and shelf detach for easier access through doorways
• Crevice-free stainless steel construction that is hygienic and easy to clean

Specifications:

• Model: Gasmax WW-1N (natural gas, duckbill), WW-1L (LPG, duckbill), WW-1NC (natural gas, chimney), WW-1LC (LPG, chimney)
• Wok holes: 1
• Gas consumption, chimney burner: 130 MJ/h natural gas, 115 MJ/h LPG
• Dimensions: 600 W x 850 D x 1300 H mm overall, with a 790mm working height
• Certification: gas approval GMK10371, Watermark certified
• Construction: stainless steel
• Packed size for delivery: 920 x 660 x 550 mm

Good to know before you buy:

• Options: choose Natural Gas or LPG, and a duckbill or chimney burner, when you order. For the duckbill burner's gas rating, ask us to confirm the current figure before your gas fitter sizes the supply.
• Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Drain: it doesn't need running water for cooling, but the front gutter drains away, so have a licensed plumber connect the drain.
• Access: the legs, back and shelf come off, and it arrives packed at about 920 x 660 x 550 mm. Delivery is by tailgate truck to the front of your premises.

Compare similar models:

• Gasmax WW-2: waterless double wok burner, 1200mm wide
• Gasmax WW-3: waterless triple wok burner, 1800mm wide
• Gasmax RB-1E: benchtop dual ring burner for stock pots

Common questions:

Duckbill or chimney burner?
The duckbill burner is the standard fitting and the chimney burner is the alternative. Both are available in natural gas or LPG. Choose the style your chefs prefer when you order.

Does a waterless wok need any water connection?
The top is cooled by air, not running water. The front gutter and filter still drain away, so plan for a drain connection by a licensed plumber.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter, and the drain by a licensed plumber, in your area.

See all our commercial wok burners.

Warranty: 1 year parts and labour.
