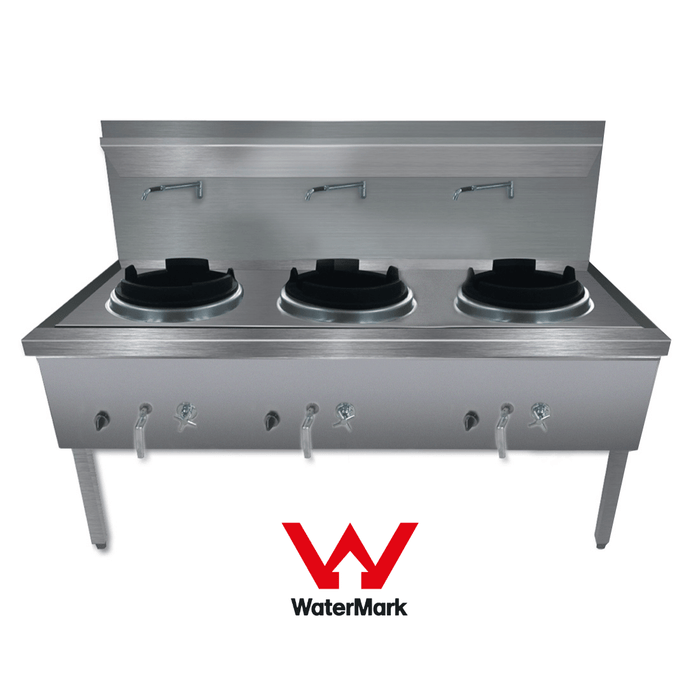

Gasmax WW-3 - Waterless Triple Wok Burner

Gasmax WW-3 - Waterless Triple Wok Burner

For high-volume Chinese, Thai and pan-Asian kitchens, the Gasmax WW-3 lines up three wok holes on an 1800mm waterless wok table. Its air-gap cooling design keeps the one-piece stainless steel top cool and free from buckling without water running across it all service, a real saving on water costs over a traditional water-cooled table. Order it with the standard duckbill burners or chimney burners, in natural gas or LPG. It is the largest of the Gasmax waterless woks, one hole more than the WW-2.

Key features:

• 3 wok holes on a waterless, air-gap cooled top
• One-piece pressed stainless steel wok top that FED says will never crack or leak
• Choice of duckbill burners (standard) or chimney burners
• Light, smooth knee-operated wok valves
• Master gas shut-off valve on the front panel
• Cast iron wok rings
• Front gutter with a filter system to keep solids out of the drain
• Legs, back and shelf detach for easier access through doorways
• Crevice-free stainless steel construction, hygienic and easy to clean

Specifications:

• Model: Gasmax WW-3N (natural gas, duckbill), WW-3L (LPG, duckbill), WW-3NC (natural gas, chimney), WW-3LC (LPG, chimney)
• Wok holes: 3
• Gas consumption, chimney burners: 390 MJ/h natural gas, 345 MJ/h LPG
• Dimensions: 1800 W x 850 D x 1300 H mm overall, with a 790mm working height
• Weight: 175 kg
• Certification: gas approval GMK10371, Watermark certified
• Construction: stainless steel
• Packed size for delivery: 920 x 1860 x 550 mm

Good to know before you buy:

• Options: choose Natural Gas or LPG, and duckbill or chimney burners, when you order. For the duckbill version's gas rating, ask us to confirm the current figure for your gas fitter.
• Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Gas supply: with chimney burners it draws up to 390 MJ/h, a very large load. Your gas fitter must confirm your meter, regulator and pipework can supply it.
• Drain: no running water is needed for cooling, but the front gutter drains away, so have a licensed plumber connect the drain.
• Access: it packs down to about 920 x 1860 x 550 mm with the legs, back and shelf removed. Delivery is by tailgate truck to the front of your premises, so plan for lifting help.

Compare similar models:

• Gasmax WW-2: waterless double wok burner, 1200mm wide
• Gasmax WW-1: waterless single wok burner, 600mm wide

Common questions:

Will it fit through my kitchen door?
The legs, back and shelf are detachable, which FED says allows easy access through any doorway. The packed size is about 920 x 1860 x 550 mm.

Duckbill or chimney burners?
Duckbill burners are standard and chimney burners are the alternative. Choose your preference, along with natural gas or LPG, when you order.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter, and the drain by a licensed plumber, in your area.

See all our commercial wok burners.

Warranty: 1 year parts and labour.
