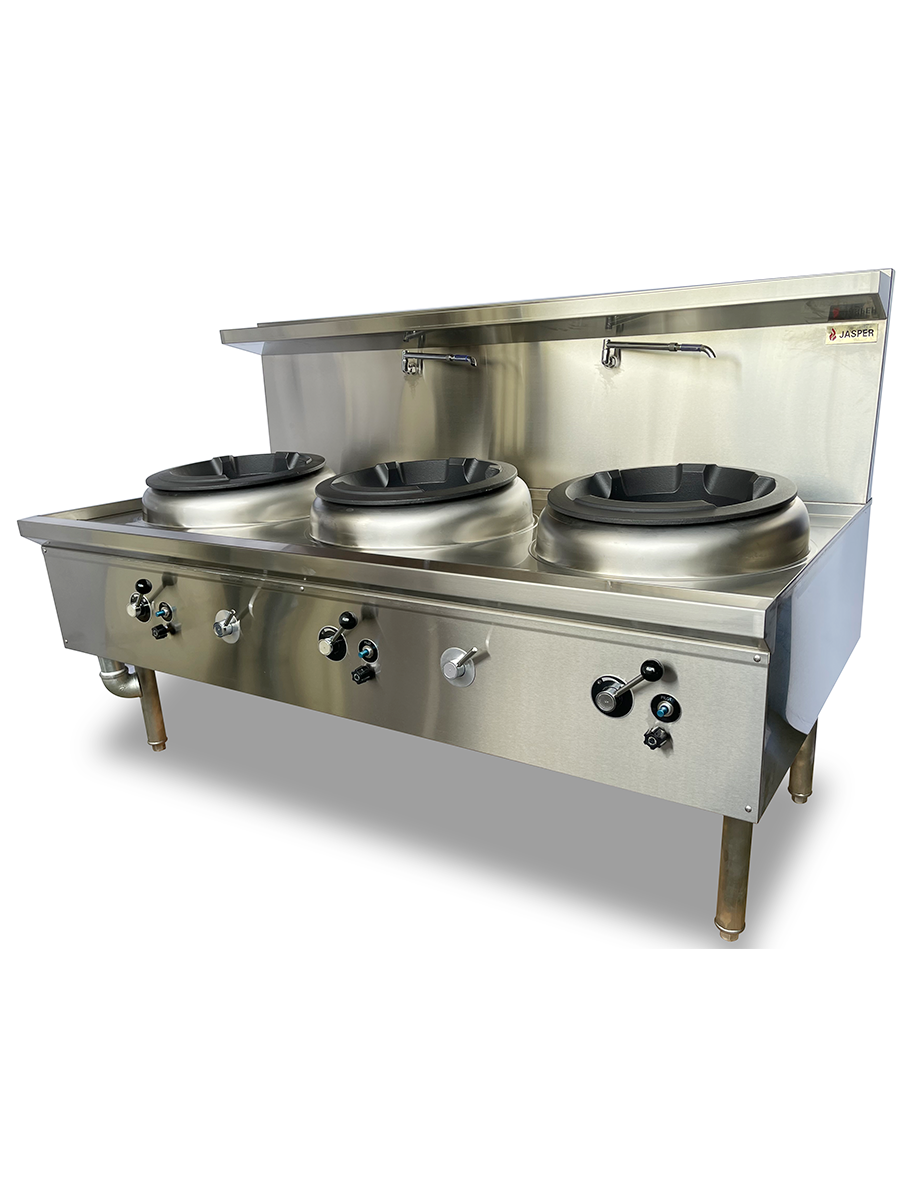

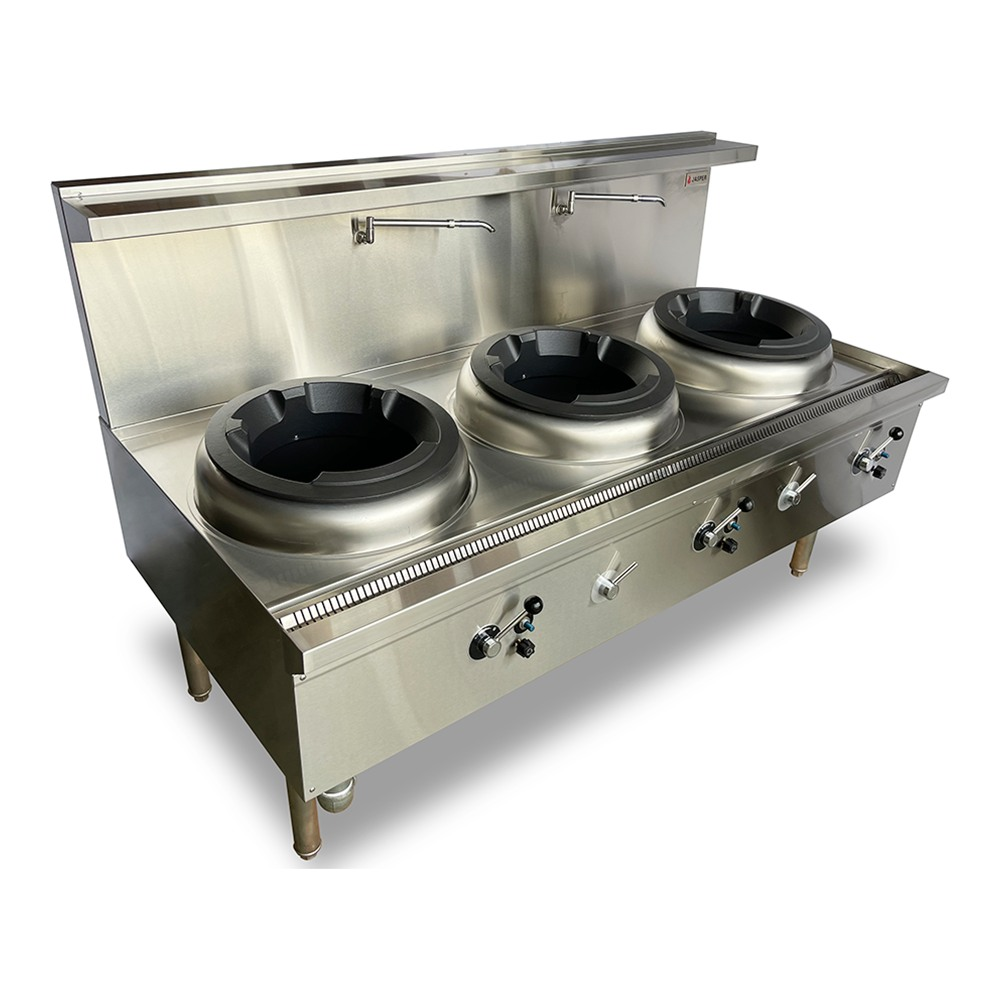

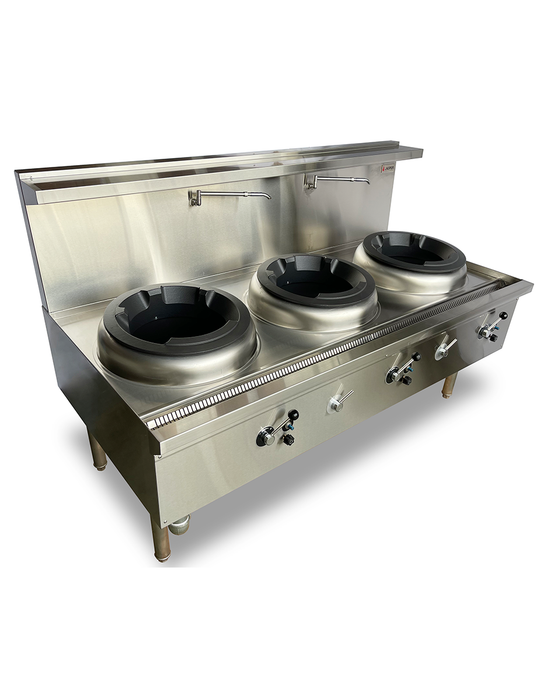

Jasper JA-3DB - Triple Wok Burner Range

Jasper JA-3DB - Triple Wok Burner Range

The Jasper JA-3DB is an 1800mm triple wok range for high-volume Asian restaurants, food courts and yum cha kitchens that run three woks at once. Each of its three 14 inch wok holes has a duckbill burner rated at 100 MJ/h on natural gas or 80 MJ/h on LPG, for 300 MJ/h or 240 MJ/h in total. It's the largest wok range in Simco's Jasper line, with the same waterless design, FailSafe flame-failure protection and high splashback with shelf as the single and double models.

Key features:

• Three 14 inch wok holes (each suits 14 to 20 inch woks)
• Three duckbill burners: 100 MJ/h each on natural gas, 80 MJ/h each on LPG
• Separate regulator and gas cock for each wok ring
• Waterless wok design, no constant water flow needed over the top
• Knee-operated water tap with swivel outlet
• FailSafe flame-failure protection
• High splashback with shelf and heavy-duty frame
• GasMark certified by IAPMO R&T Oceania (GMK10823)
• Choose Natural Gas or LPG when you order (same price)

Specifications:

• Model: Jasper JA-3DB
• Wok holes: 3 x 14 inch (nominal)
• Burners: 3 x duckbill
• Total gas output: 300 MJ/h (natural gas) or 240 MJ/h (LPG)
• Gas type: Natural Gas or LPG (choose from the Gas Type option, same price)
• Gas connection: 3/4 inch BSP (20mm) female

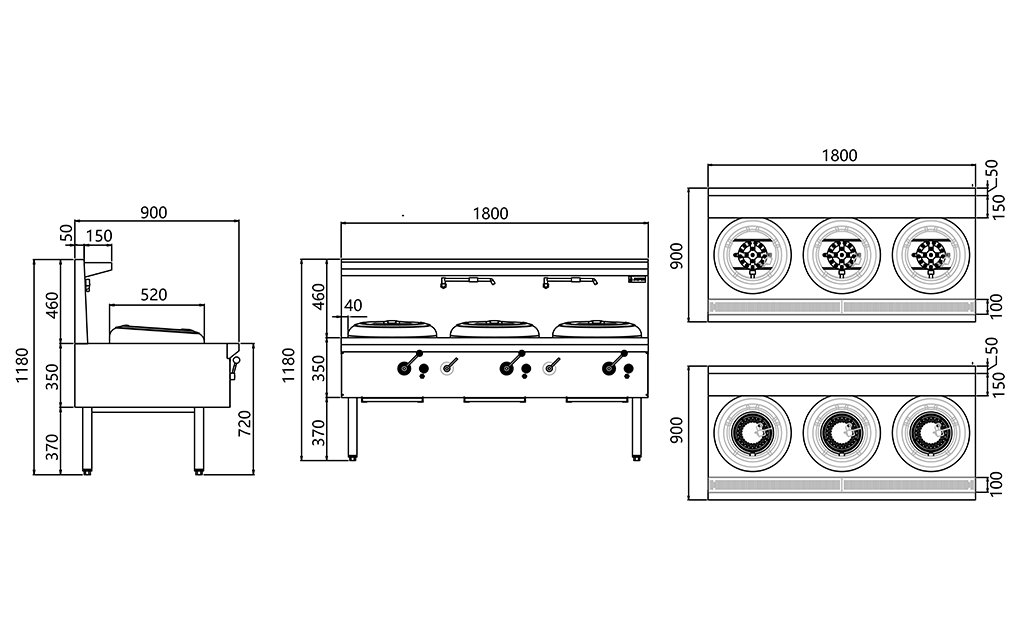

• Dimensions: 1800 W x 900 D x 1180 H mm (height over splashback)
• Bench height: 720mm (legs adjustable)
• Weight: 180 kg
• Packed size for delivery: 1880 W x 980 D x 1315 H mm, 251 kg

Good to know before you buy:

• Gas type: choose Natural Gas or LPG from the Gas Type option when you order (same price).
• Installation: it must be installed by a licensed gas fitter to AS/NZS 5601 and local regulations, under an exhaust canopy. We supply the equipment only.
• Gas supply: 300 MJ/h on natural gas is a big load. Your gas fitter should check your meter and pipework before you order.
• Water and drain: the water and drain connections must be done by a licensed plumber.
• Access: the crate is 1880mm long, 1315mm tall and 251 kg. It is delivered by tailgate truck to the front of your premises, so plan the route inside and have enough people or equipment to move it.

Compare similar models:

• Jasper JA-2DB: two 14 inch wok holes, 1200mm wide
• Jasper JA-1DB: one 14 inch wok hole, 600mm wide
• Jasper JA-NC: 600mm noodle cooker and steamer to complete the line

Common questions:

What size woks can I use?
The wok holes are 14 inch nominal, and Simco says they suit woks from 14 to 20 inches.

Is a chimney-burner version available?
Yes, Simco makes a chimney-burner triple wok range (JA-3CB). Ask us if that suits your cooking style better.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter, and the water and drain by a licensed plumber, in your area.

See all our commercial wok burners.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the unit online with Simco.
