Before it arrives
- Size: 1200 W x 900 D x 1180 H mm. Check doorways and access on the way in.
- Weight: 125 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Gas: needs a licensed gas fitter to connect. Choose natural gas or LPG when you order, where offered.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

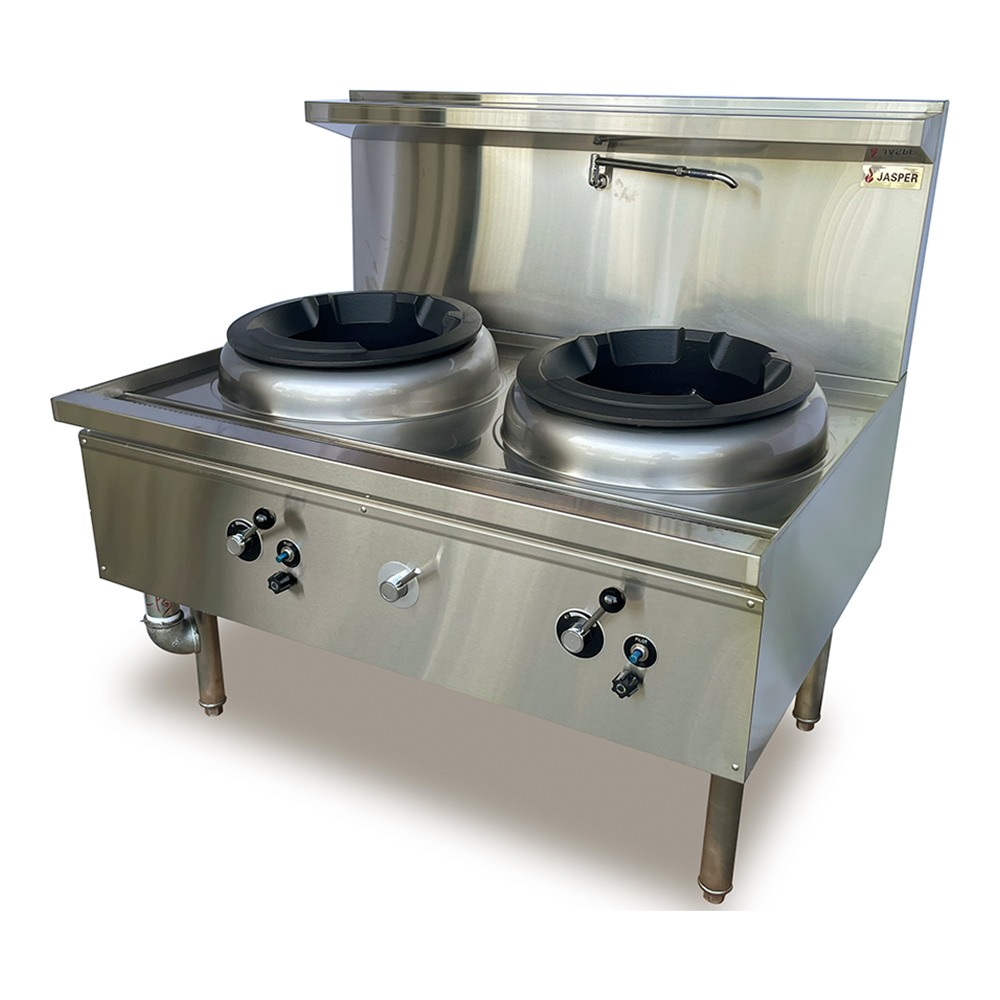

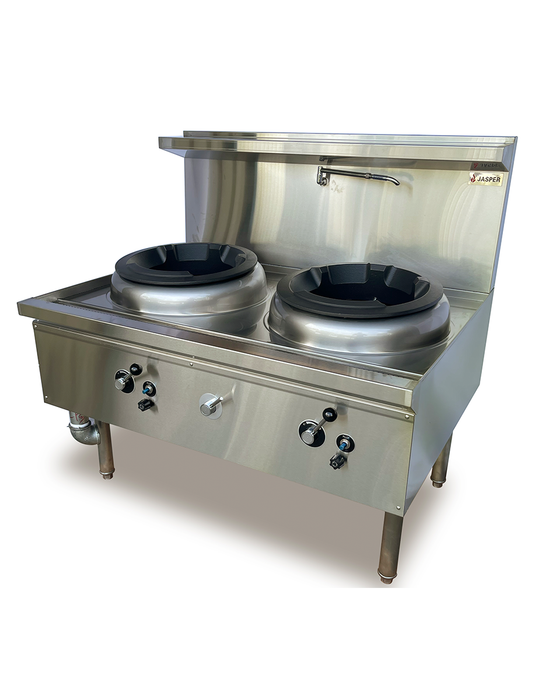

Jasper JA-2DB - Double Wok Burner Range
Two woks firing side by side is the backbone of most busy Asian kitchens, and the Jasper JA-2DB is built for exactly that. This 1200mm double wok range has two 14 inch wok holes, each over a duckbill burner, for 200 MJ/h on natural gas or 160 MJ/h on LPG in total. It sits between the single JA-1DB and the triple JA-3DB in Simco's Jasper range, with the same waterless wok design, FailSafe flame-failure protection and high splashback with shelf.
Key features:
- Two 14 inch wok holes (each suits 14 to 20 inch woks)
- Two duckbill burners: 100 MJ/h each on natural gas, 80 MJ/h each on LPG
- Each wok ring has its own regulator and gas cock
- Waterless wok design, so the top doesn't need constant water flow
- Knee-operated water tap with swivel outlet for filling and rinsing
- FailSafe flame-failure protection
- High splashback with shelf, on a heavy-duty frame
- GasMark certified by IAPMO R&T Oceania (GMK10823)
- Choose Natural Gas or LPG when you order (same price)
Specifications:
- Model: Jasper JA-2DB
- Wok holes: 2 x 14 inch (nominal)
- Burners: 2 x duckbill
- Total gas output: 200 MJ/h (natural gas) or 160 MJ/h (LPG)
- Gas type: Natural Gas or LPG (choose from the Gas Type option, same price)
- Gas connection: 3/4 inch BSP (20mm) female

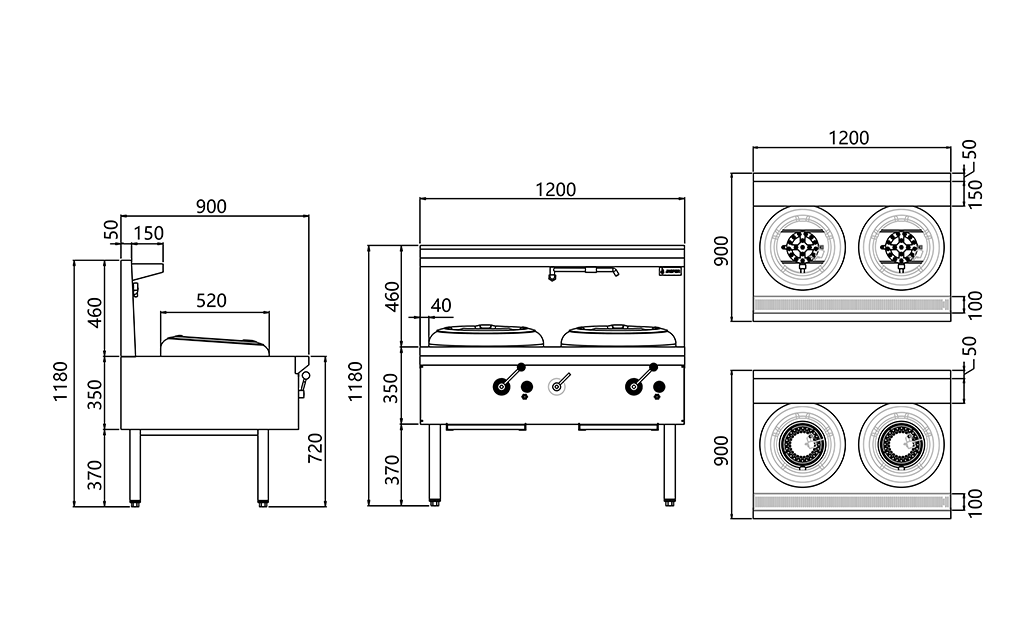

- Dimensions: 1200 W x 900 D x 1180 H mm (height over splashback)
- Bench height: 720mm (legs adjustable)
- Weight: 125 kg
- Packed size for delivery: 1280 W x 980 D x 1315 H mm, 177 kg
Good to know before you buy:
- Gas type: choose Natural Gas or LPG from the Gas Type option when you order (same price).
- Installation: a licensed gas fitter must install it to AS/NZS 5601 and local regulations, and Simco requires an exhaust canopy over it. We supply the equipment only.
- Water and drain: a licensed plumber needs to connect the water supply and drain.
- Gas supply: at 200 MJ/h on natural gas, have your gas fitter confirm your meter and pipework can keep up.
- Access: the crate is 1280mm wide, 1315mm tall and 177 kg, delivered by tailgate truck to the front of your premises. Check doorways and arrange help to move it.
Compare similar models:
- Jasper JA-1DB: single 14 inch wok hole, 600mm wide
- Jasper JA-3DB: three 14 inch wok holes, 1800mm wide
- Jasper JA-SPB: 600mm stockpot boiler to sit beside it
Common questions:
How much room do I need around it?
Simco specifies 350mm at the sides, 150mm at the back and 1500mm above from flammable surfaces, and the canopy must extend at least 150mm past the unit.
Can I get a chimney burner instead?
Simco also makes a chimney-burner version of this range (JA-2CB). Ask us about it.
Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter, and the water and drain by a licensed plumber, in your area.
See all our commercial wok burners.
Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the unit online with Simco.
