NovaChill Refrigeration SM400GZ - Single Glass Door Display Freezer Bottom Mount
NovaChill Refrigeration SM400GZ - Single Glass Door Display Freezer Bottom Mount
SKU: SM400GZ
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 4 years parts and 2 years labour (NovaChill warranty). Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 650 W x 660 D x 1930 H mm. Check doorways and access on the way in.
- Power: 240V, 10 amp plug.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
NovaChill Refrigeration SM400GZ - Single Glass Door Display Freezer Bottom Mount

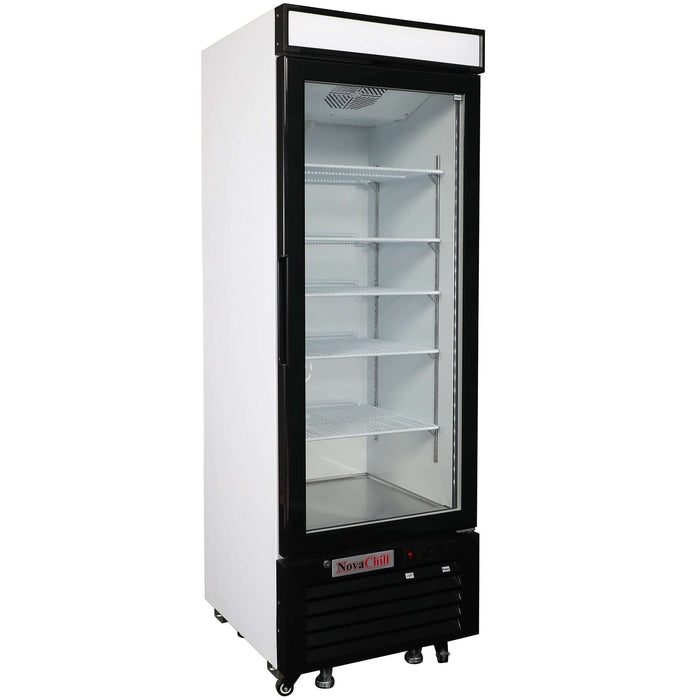

The NovaChill SM400GZ is a slim single glass door display freezer, 650mm wide, for service stations, convenience stores, cafes and takeaways that want frozen stock or bagged ice on show in a small space. It holds 400 litres behind a heated glass door and is rated for rooms up to 43°C. You can order it as a standard freezer for frozen food, or as the SM400GZ-ICE ice freezer with an ICE sign and a warmer range set for bagged ice. It is the smallest freezer in NovaChill's premium range and matches the SM400GF fridge.
Key features:
- Two versions: standard freezer or ICE freezer, same cabinet
- Heated, lockable, self-closing glass door
- 400 litres with adjustable shelves on metal clips (not plastic)
- 304-grade stainless steel internal floor
- Fan-forced cooling with automatic defrost
- Embraco compressor, bottom mounted
- Dixell digital temperature controller
- LED sign box and 2 LED door lights, 60mm insulation
- 4 inch heavy-duty castors, front wheels lockable
Specifications:
- Model: NovaChill SM400GZ (standard freezer) or SM400GZ-ICE (ice freezer)
- Capacity: 400 litres
- Dimensions: 650 W x 660 D x 1930 H mm
- Internal size: 530 W x 530 D x 1230 H mm
- Shelf size: 510 x 480 mm
- Temperature range: standard freezer -20°C to -16°C; ice freezer -15°C to -10°C
- Maximum room temperature: 43°C
- Power: 240V, 10 amp plug
- Energy use (ice freezer): 6.20 kWh per 24 hours
- Glass (ice freezer): triple glazed, heated
- Insulation: 60mm
- Compressor: Embraco, bottom mounted
Good to know before you buy:
- Version: pick Standard freezer or Ice freezer in the Version option. Both cost the same. The ice freezer comes with an ICE display sign.
- Access: the cabinet is 650mm wide, 660mm deep and 1930mm tall. It is delivered by tailgate truck to the front of your premises. Standard delivery doesn't include bringing it inside, up stairs or unpacking.
- Power: plugs into a standard 10 amp power point.
- Airflow: keep the vents clear and leave space around the cabinet. Clean the condenser monthly, as NovaChill's warranty excludes condenser fan motors on uncleaned condensers.
Compare similar models:
- NovaChill SM400GF: the matching display fridge, same cabinet size
- NovaChill SM600GZ: single door freezer, 590 litres, 2115mm tall
- NovaChill SM1300GZ: two door freezer, 1320 litres
- NovaChill Ice Box Model A: solid door bagged ice storage box, 1872 litres
Common questions:
What's the difference between the standard and ice versions?
It's the same cabinet. The standard freezer runs at -20°C to -16°C for frozen food. The ice freezer (SM400GZ-ICE) runs at -15°C to -10°C for bagged ice and has an ICE sign.
Can I sell bagged ice from it at a service station?
Yes. Choose the Ice freezer version, which NovaChill sets up for ice storage and display.
What plug does it have?
A standard 10 amp plug, running on 220–240V.
See all our commercial ice boxes and ice freezers.
Warranty: 4 years parts and 2 years labour (NovaChill warranty).
