NovaChill Refrigeration SM600GZ - Single Glass Door Display Freezer Bottom Mount
NovaChill Refrigeration SM600GZ - Single Glass Door Display Freezer Bottom Mount
SKU: SM600GZ
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 4 years parts and 2 years labour (NovaChill warranty). Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 685 W x 800 D x 2115 H mm. Check doorways and access on the way in.
- Power: 240V, 10 amp.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

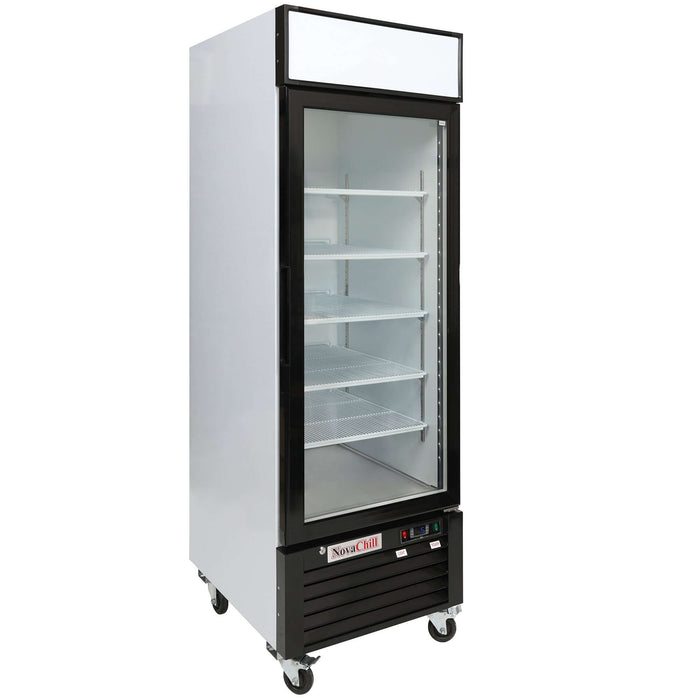

NovaChill Refrigeration SM600GZ - Single Glass Door Display Freezer Bottom Mount
The NovaChill SM600GZ is a full-height single glass door display freezer with 590 litres of space, made for supermarkets, convenience stores, butchers and service stations. It has 6 display levels behind a heated glass door, electric auto defrost and a 43°C room rating. Order it as a standard freezer for frozen food, or as the SM600GZ-ICE ice freezer with an ICE sign for selling bagged ice. It matches the SM600GF fridge and holds 190 litres more than the SM400GZ.
Key features:
- Choice of standard freezer or ICE freezer version, same cabinet
- Heated, lockable, self-closing glass door
- 590 litres over 6 display levels, with metal shelving clips (not plastic)
- 304-grade stainless steel internal floor
- Fan-forced cooling with automatic electric defrost
- Embraco compressor, bottom mounted
- Dixell digital temperature controller
- Large LED sign box and 2 LED door lights
- 60mm insulation and 4 inch heavy-duty castors (front wheels lockable)
Specifications:
- Model: NovaChill SM600GZ (standard freezer) or SM600GZ-ICE (ice freezer)
- Capacity: 590 litres
- Dimensions: 685 W x 800 D x 2115 H mm
- Internal size: 565 W x 640 D x 1300 H mm
- Shelf size: 535 x 635 mm
- Temperature range: standard freezer -20°C to -16°C; ice freezer -15°C to -10°C
- Maximum room temperature: 43°C
- Power: 240V, 10 amp
- Defrost: automatic, electric
- Energy use (ice freezer): 7.78 kWh per 24 hours
- Glass (ice freezer): triple glazed, heated
- Display: 6 levels, 1 glass door
- Compressor: Embraco, bottom mounted
Good to know before you buy:
- Version: choose Standard freezer or Ice freezer in the Version option. The price is the same, and the ice freezer comes with an ICE display sign.
- Access: the cabinet is 685mm wide, 800mm deep and 2115mm tall, so check doorways and ceiling height. It arrives by tailgate truck to the front of your premises. Standard delivery doesn't include bringing it inside, up stairs or unpacking.
- Power: plug-in on a standard 10 amp outlet.
- Airflow: keep the vents clear and leave space around the cabinet. NovaChill's warranty requires a monthly condenser clean to cover the condenser fan motor.
Compare similar models:
- NovaChill SM600GF: the matching display fridge, same size
- NovaChill SM400GZ: single door freezer, 400 litres, 650mm wide
- NovaChill SM1300GZ: two door freezer, 1320 litres
- NovaChill Ice Box Model A: solid door ice storage box, 1872 litres
Common questions:
Which version should I choose for ice?
The Ice freezer (SM600GZ-ICE). It runs at -15°C to -10°C and has an ICE sign. The standard version runs colder, at -20°C to -16°C, for frozen food.
How big are the shelves?
NovaChill lists the shelves at 535 x 635 mm, with 6 display levels in the cabinet.
Does it need a special power point?
No. It runs on 240V and plugs into a standard 10 amp outlet.
See all our commercial ice boxes and ice freezers.
Warranty: 4 years parts and 2 years labour (NovaChill warranty).
