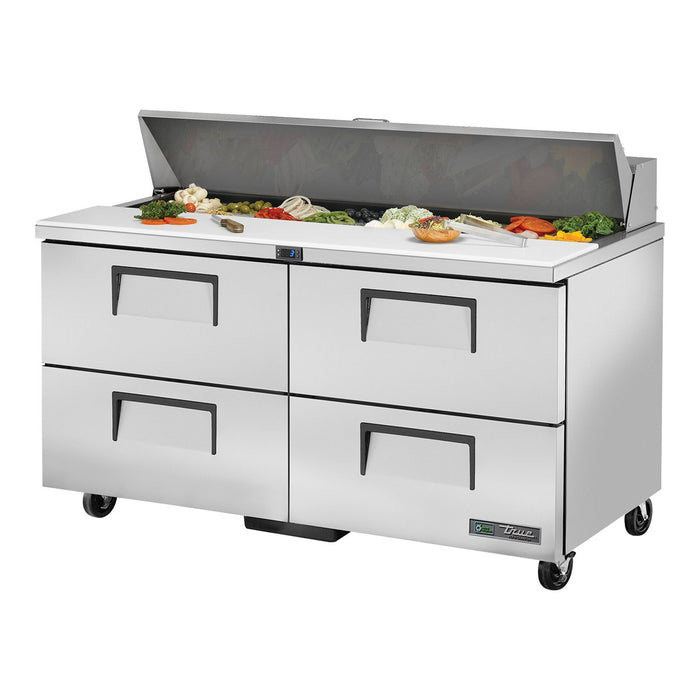

True TSSU-60-16D-4-HC - 16 x 1/6 Pan Salad Prep Fridge, 4 Drawer 1534mm
With four refrigerated drawers and no doors at all, the True TSSU-60-16D-4-HC suits a fast makeline where everything below the bench should be one pull away. Each drawer is sized for a 1/1 GN pan up to 150 mm deep, and the top carries 16 x 1/6 GN pans behind a 1534 x 299 mm cutting board. It keeps the same 1534 mm footprint and 0.5°C to 5°C pan temperature as the two-door TSSU-60-16-HC and the drawer-and-door TSSU-60-16D-2-HC, but trades shelves for drawers throughout.
Key features:
- 4 refrigerated drawers, each sized for one 1/1 GN pan up to 150 mm deep
- 16 clear polycarbonate 1/6 GN pans (100 mm deep) supplied, in two rows under an insulated hood
- Patented air-flow refrigeration designed for a consistent 0.5°C to 5°C across every pan
- True says the pan space can be set up with your own arrangement of other pan sizes
- Removable white polyethylene cutting board, high density and hygienic
- 100% front-breathing, so several units can be lined up side by side to build a longer makeline
- Patented True RCU technology to help reduce debris build-up on the condensing coil
- Stainless steel front, top and hood with aluminium sides and rear, on heavy duty lock-in-place castors
Specifications:
- Model: True TSSU-60-16D-4-HC
- Capacity: 439 litres gross
- Top pans: 16 x 1/6 GN, 100 mm deep, supplied
- Dimensions: 1534 W x 766 D x 1093 H mm (height with lid closed)
- Weight: 180 kg unpacked
- Temperature range: 0.5°C to 5°C
- Refrigerant: R290
- Power: single-phase 220–240 V, 50–60 Hz, 2.2 A running current, 506 W, supplied with a 3.35 m power cord
- Drawers: 4, each 1 x 1/1 GN up to 150 mm deep (no doors or shelves)
- Cutting board: 1534 x 299 mm
- Interior: clear-coated aluminium with a stainless steel base
- Defrost: automatic
- Castors: heavy duty lock-in-place, 127 mm diameter (158 mm height)
- Packed size for delivery: 1601 W x 832 D x 1270 H mm, 191 kg
Good to know before you buy:
- Access: at 191 kg packed and 1601 x 832 x 1270 mm in its crate, plan the route in before it arrives. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside, up stairs or unpacking.
- Fit: allow a little more than the listed size. Depth leaves out 26 mm for the rear bumpers, and width leaves out 7 mm each side for the cutting board brackets.
- Clearances: True specifies zero clearance at the back and sides, with air drawn in and pushed out at the front. Keep the front grille clear of boxes and bins.
- Pricing: This model is priced on application. Ask us for a quote.
Compare similar models:
- True TSSU-60-16D-2-HC: 2 drawers plus 1 door with 2 shelves
- True TSSU-60-16-HC: 2 solid doors with 4 shelves, 160 kg
- True TSSU-48-12D-4-HC: shorter 1229 mm, 4-drawer model with 12 pans
- True TSSU-60-18M-B-HC: Mega Top with 18 pans in three rows, 2 doors
Common questions:
Does it have any shelves?
No. All of the storage is in the four drawers, so no shelves are supplied. If you'd like shelf space as well, the TSSU-60-16D-2-HC has two drawers and a door section with two shelves.
Can it sit hard against a wall or other equipment?
Yes. It breathes entirely from the front, and True lists zero clearance at the back and sides, which is why it suits built-in counters and side-by-side makelines.
What power does it need?
Single-phase 220–240 V. It draws 2.2 A while running, is rated at 506 W and comes with a 3.35 m power cord.
See all our food prep stations.
Warranty: True 5-year parts and labour warranty, including the compressor.
