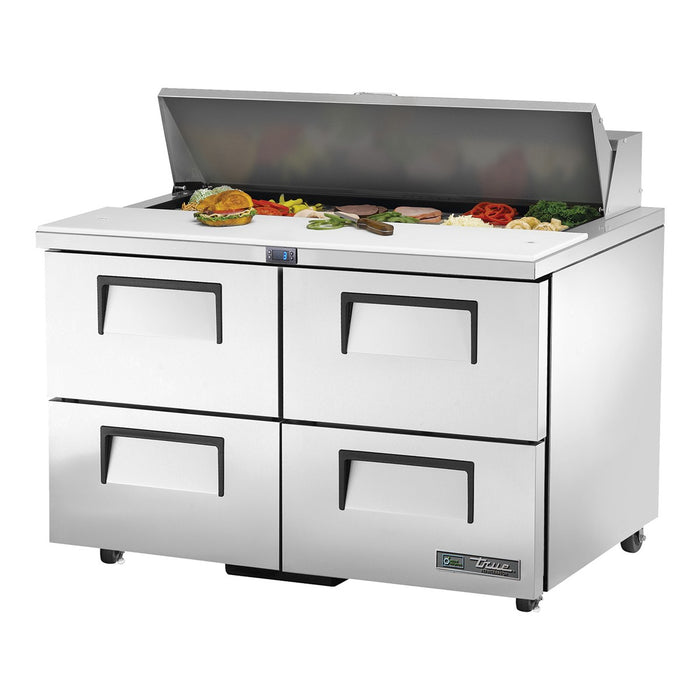

True TSSU-48-12D-4-HC - 12 x 1/6 Pan Salad Prep Fridge, 4 Drawer 1229mm
Contact us for current pricing and lead times. Click Get a Quote below.
Rather rent than pay upfront? Silver Chef Rent-Try-Buy finance is available on most of our range.Apply nowHow it works
Finance provided by Silver Chef, subject to approval.
True TSSU-48-12D-4-HC - 12 x 1/6 Pan Salad Prep Fridge, 4 Drawer 1229mm
Four refrigerated drawers and no doors make the True TSSU-48-12D-4-HC a pull-and-refill station: each drawer holds a pan of prepped backup right below the 12-pan rail it feeds. It is the all-drawer version of True's 1229mm, 12-pan TSSU, with the same 340 litres gross and 0.5°C to 5°C range as the two-door TSSU-48-12-HC. Drawers suit a busy line where staff can't stop to crouch and dig through a cupboard; if you store a lot of tall items, the door or door-and-drawer versions may suit you better.
Key features:
- 4 refrigerated drawers, each sized for one 305 x 458 mm pan up to 150 mm deep
- Supplied with 12 x 1/6 GN clear polycarbonate pans (100 mm deep) in two rows on top
- Customisable pan space for other pan sizes
- True's patented air flow, designed to keep every top pan at an even 0.5°C to 5°C
- 1229 x 299 mm removable white polyethylene prep board
- Breathes entirely from the front, so it suits built-in installation and can sit side by side with other units
- True's patented RCU feature, which helps reduce debris build-up on the condensing coil
- Supplied on 127 mm castors
Specifications:
- Model: True TSSU-48-12D-4-HC
- Capacity: 340 litres gross
- Dimensions: 1229 W x 766 D x 1093 H mm
- Weight: 121 kg
- Temperature range: 0.5°C to 5°C
- Refrigerant: R290
- Power: single-phase 220–240 V, 50/60 Hz, 2.3 A running current, 529 W, supplied with a 3.35 m power cord
- Defrost: automatic
- Drawers: 4, each holding 1 x 305 x 458 mm pan, 150 mm maximum depth
- Doors and shelves: none
- Top pans: 12 x 1/6 GN, 100 mm deep, supplied
- Castors: 127 mm diameter
- Packed size for delivery: 1302 x 833 x 1270 mm, 132 kg
Good to know before you buy:
- Access: expect a 1302 x 833 x 1270 mm crate weighing 132 kg, dropped by tailgate truck at the front of your premises. Moving it inside and unpacking aren't part of standard delivery, so plan your route through the building. Leave an extra 26 mm behind for the rear bumpers.
- Drawer layout: True notes that on its door and drawer models the drawer assembly can be located in any section of the cabinet, and the location must be given at the time of ordering. We'll check this with you.
- Power: 220–240 V single-phase, 2.3 A while running, 3.35 m power cord.
- Pricing: This model is priced on application. Ask us for a quote.
Compare similar models:
- True TSSU-48-12D-2-HC: same size with 2 drawers plus 1 door and 2 shelves
- True TSSU-48-12-HC: same size with 2 doors and 4 shelves
- True TSSU-60-16D-4-HC: 1534mm with 4 drawers that each take a 1/1 GN pan, 16 pans on top
- True TSSU-27-08D-2-HC: compact 702mm unit with 2 drawers and 8 pans
Common questions:
Does it have any shelves?
No. The cabinet is all drawers: four of them, each taking one 305 x 458 mm pan up to 150 mm deep.
Can it be built in between benches?
True designs the TSSU range to be 100% front-breathing, which it describes as ideal for built-in installation. It is 1093 mm high, so check the height of any overhead shelf or counter.
How does it differ from the TSSU-48-12D-2-HC?
Both are 1229 mm wide with 12 pans on top and 340 litres gross. The TSSU-48-12D-2-HC swaps two of the drawers for a door section with 2 shelves; this model has 4 drawers and no door.
See all our food prep stations.
Warranty: True 5-year parts and labour warranty, including the compressor.
