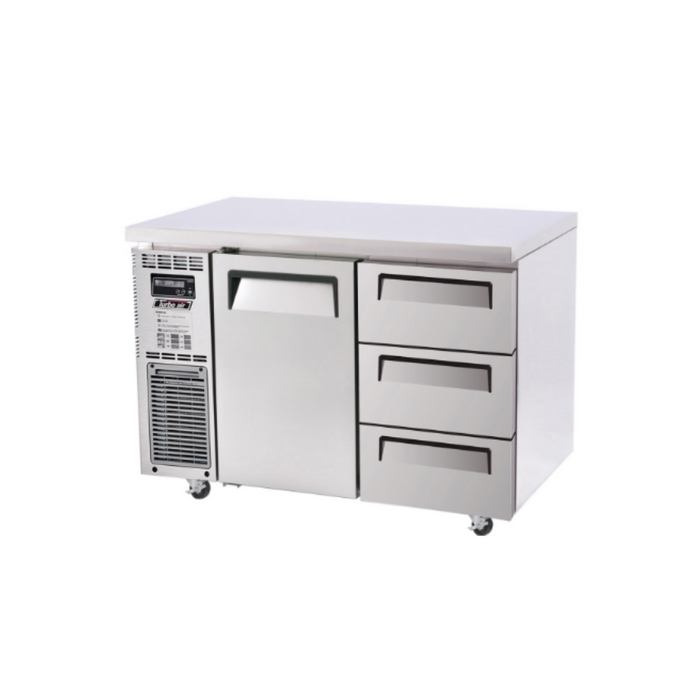

Turbo Air KUF12-3D-3-N - 1 Door 3 Drawer Underbench Freezer 1200mm 311L

Turbo Air KUF12-3D-3-N - 1 Door 3 Drawer Underbench Freezer 1200mm 311L

A single door plus three shallow drawers makes the Turbo Air KUF12-3D-3-N a flexible 1200 mm freezer for kitchens that keep a mix of boxed stock and small frozen items. Behind the door is an adjustable wire shelf, and each drawer takes a 1/1 GN pan 100 mm deep, which keeps things like portioned desserts, frozen herbs or pastry in single, easy-to-see layers. It holds -21°C to -12°C over 311 litres. Choose the KUF12-2D-2-N instead if you work with deeper 150 mm pans.

Key features:

• 1 door with 1 adjustable heavy-duty (50 kg) PE-coated wire shelf
• 3 drawers, each for 1 x 1/1 GN pan 100 mm deep (pans not included)

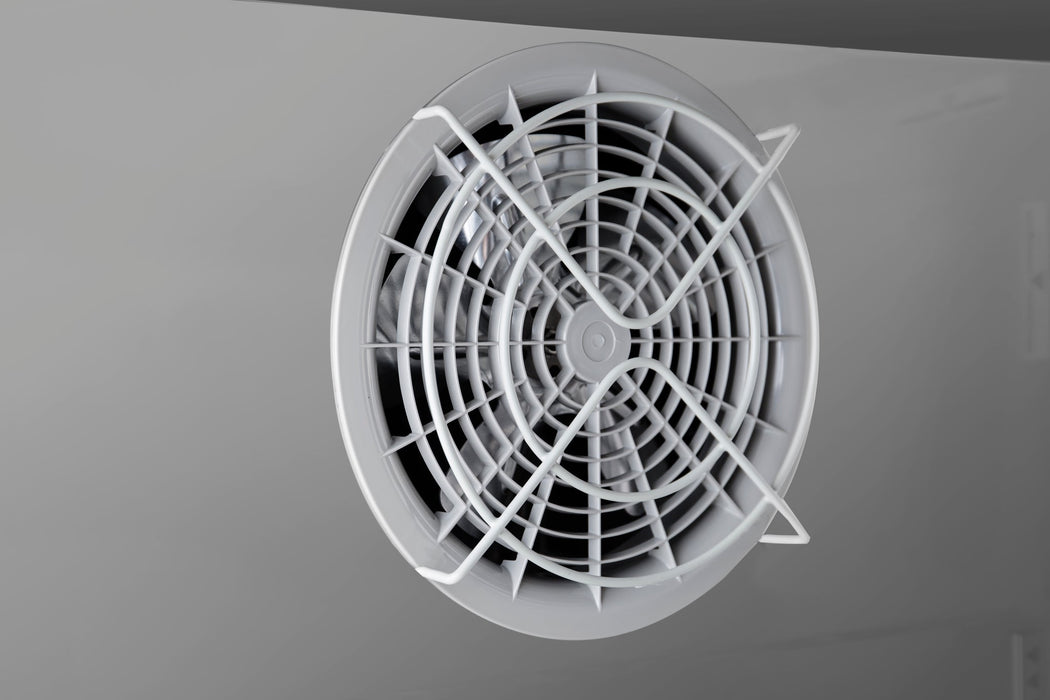

• -21°C to -12°C, with fan-forced air circulation for even temperatures

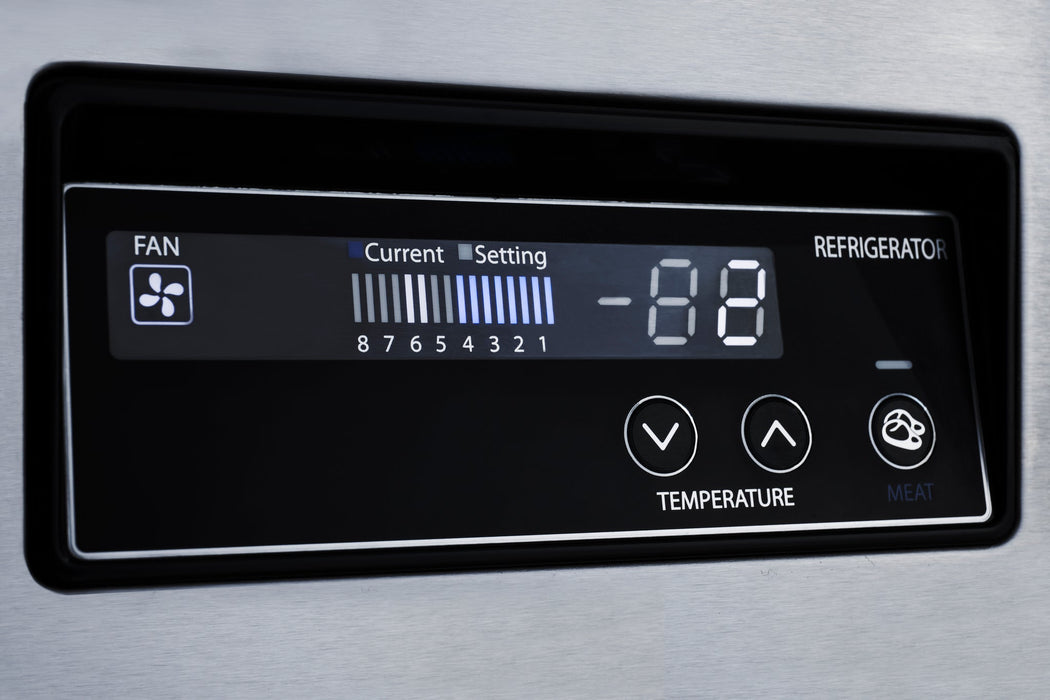

• Digital temperature control and monitor system
• Turbo Cooling & Freeze runs the compressor for up to two hours straight to pull the temperature back down after loading
• Patented self-cleaning condenser: a rotating brush passes over it 2 to 3 times a day, keeping dust from building up
• Front breathing, so it can sit closer to walls or under a bench

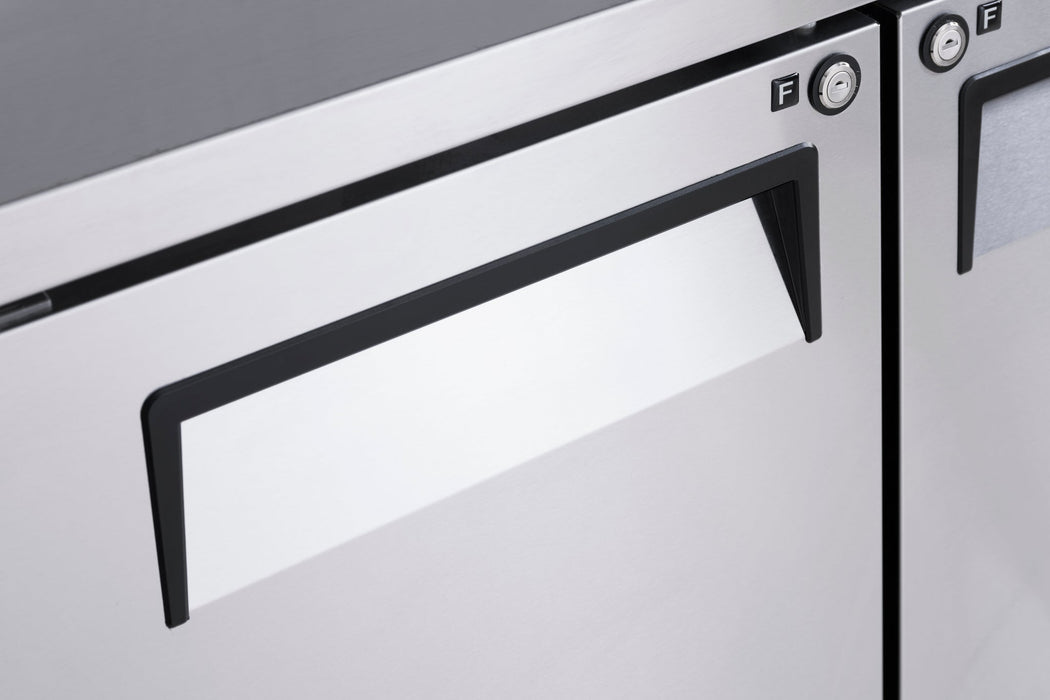

• Easy-grip recessed door handle and magnetic door gasket
• Stainless steel exterior and interior, R290 natural refrigerant, castors standard and legs optional

Specifications:

• Model: Turbo Air KUF12-3D-3-N
• Capacity: 311 litres
• Dimensions: 1200 W x 700 D x 855 H mm
• Weight: 97 kg
• Temperature range: -21°C to -12°C
• Refrigerant: R290 (hydrocarbon)
• Compressor: 2/5 HP, side-mounted on the left
• Power: 400 W, 2.5 A full load, 220–240 V single phase, 10 amp plug
• Energy use: 3.75 kWh per 24 hours (about 1,369 kWh a year)
• Layout: 1 door and 3 drawers, each drawer for 1 x 1/1 GN pan 100 mm deep
• Shelves: 1 adjustable PE-coated wire shelf behind the door
• Insulation: high-density polyurethane (cyclopentane), CFC free
• Drain water evaporation system (no extra drain needed)

Good to know before you buy:

• Access: 1200 mm wide, 700 mm deep and 97 kg. It comes by tailgate truck to the front of your premises; standard delivery doesn't include taking it inside, up stairs or unpacking, so check the doorways on the way in.
• Power: plugs into a standard 10 amp outlet, 220–240 V single phase.
• Height: Turbo Air quotes 855 mm in its catalogue and 860 mm including castors on its website.
• Not included: GN pans.

Compare similar models:

• Turbo Air KUF12-3D-6-N: 6 drawers for 100 mm deep pans and no door
• Turbo Air KUF12-2D-2-N: 1 door with 2 deeper drawers for 150 mm pans
• Turbo Air KUF9-3D-3-N: smaller 900 mm freezer with 3 drawers, 198 litres
• Turbo Air KUF15-3D-3-N: wider 1500 mm version with 1 door and 3 drawers
• Turbo Air KUR12-3D-3-N: the same layout as a fridge, 1°C to 8°C

Common questions:

What does "3D" in the model code mean?
It marks the shallow-drawer version: each drawer takes a 1/1 GN pan 100 mm deep. The "2D" models have deeper drawers for 150 mm pans. The last number is the total number of drawers.

Does it need a drain or plumbing?
No. Turbo Air uses a drain water evaporation (condensate) system, which it says removes the need for an extra drain. It just plugs into a 10 amp outlet. We supply the equipment only.

Can it sit under a bench or close to a wall?
Yes. It is front breathing, so the condenser draws in and exhausts air at the front. Keep the front grille clear and allow for the 860 mm height including castors.

See all our undercounter freezers.

Warranty: Turbo Air 3-year parts and labour warranty.
