Williams Boronia HB3USBHC / HB3RSB - 3 Door Black Colorbond Undercounter Display Fridge 2189mm 560L

Williams Boronia HB3USBHC / HB3RSB - 3 Door Black Colorbond Undercounter Display Fridge 2189mm 560L

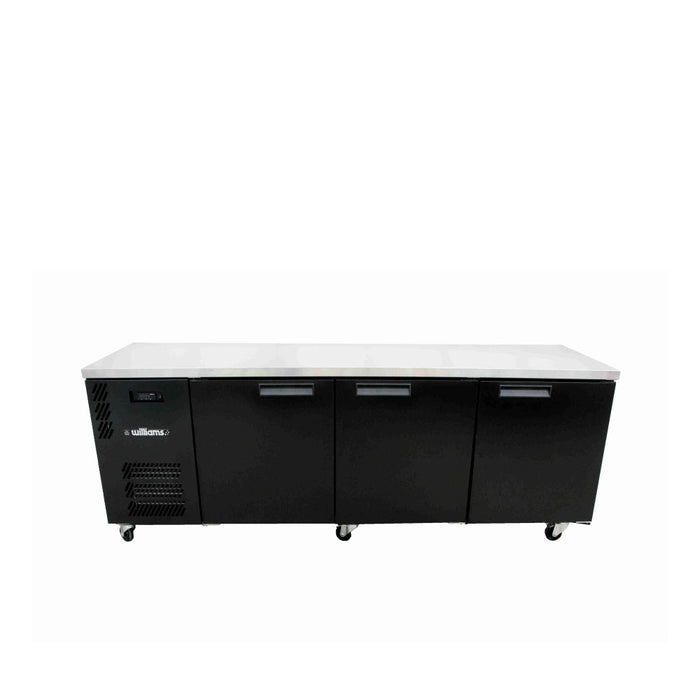

The Williams Boronia HB3USBHC puts 560 litres of cold storage behind three solid doors in a 2189mm black Colorbond cabinet, made in Australia for bars and kitchens that need a big under-counter fridge for back-up stock rather than a display. It runs on R290 hydrocarbon refrigerant, holds +1°C to +4°C in rooms up to 40°C, and is tested to EN 16825 at 5.8 kWh per day on a 10 amp plug. The HB3UGBHC is the glass door version with LED lighting, the HB3USSHC is the same solid door fridge in stainless steel, and the HB3RSB is the remote cabinet without a condensing unit.

Key features:

• Three self-closing solid doors with cylindrical locks, 560 litres inside
• R290 natural hydrocarbon refrigerant
• Black Colorbond exterior with a stainless steel countertop and internal floor
• Holds +1°C to +4°C, designed for a 40°C ambient
• Adjustable electronic controller with digital temperature display
• Six adjustable plastic-coated shelves (two per door) on strips and clips
• Anti-corrosive coating on the evaporator coil
• Front-breathing, forced-air refrigeration in a removable cassette, with auto defrost and a waste heat vaporiser (no drain needed)
• Made in Australia, on heavy-duty swivel castors with brakes, plinth-mount ready hinges

Specifications:

• Model: Williams HB3USBHC (self-contained) or HB3RSB (remote)
• Capacity: 560 litres
• Dimensions, self-contained: 2189 W x 650 D x 845 H mm on 120mm castors
• Dimensions, remote: 1970 W x 650 D x 875 H mm on 150mm legs
• Weight: 150 kg (self-contained), 140 kg (remote)
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Refrigerant: R290 hydrocarbon (self-contained), R448A (remote)
• Power: 10 amp plug with 2 m cable, 1.7 A running current (self-contained), 1.0 A (remote)
• Energy use: 5.8 kWh per 24 hours, tested to EN 16825 (climate class 4, temperature class M1)
• Remote refrigeration duty: 690 W at -5°C SST
• Doors: 3 solid doors with cylindrical locks
• Finish: black Colorbond exterior, stainless steel countertop and internal floor
• Shelves: 6 adjustable plastic-coated shelves (2 per door)
• Origin: made in Australia

Good to know before you buy:

• Access: 2189mm long, 650mm deep, 845mm high on castors and 150 kg. It is delivered by tailgate truck to the front of your premises; check that a 2.2 m cabinet fits through your doors and corners, and have two or three people to move it.
• Power: standard 10 amp power point, 2 m cable.
• Lighting: interior LED lighting is standard on glass door Boronias only. A light for the solid doors is an option.
• Remote version: the HB3RSB has no condensing unit. Your refrigeration mechanic supplies and installs a condensing unit for 690 W at -5°C SST on R448A, plus pipework and controls (solenoids not supplied). Williams can advise on sizing. We supply the equipment only.
• Airflow: front breathing, so it can be built in. Keep the front grille clear.

Compare similar models:

• Williams HB3UGBHC: the same three-door cabinet with triple-glazed glass doors and LED lighting
• Williams HB3USSHC: three solid doors in stainless steel
• Williams HB2USBHC: two solid doors, 1603mm wide, 360 litres
• Williams HB4USBHC: four solid doors, 2775mm wide, 760 litres
• Williams Cameo HC3USBHC: three solid door black Colorbond Cameo, 2017mm wide, 640 litres

Common questions:

Can I use it in a kitchen rather than a bar?
Yes. With solid doors, a stainless countertop and a 40°C ambient rating, it works as an under-counter storage fridge in a kitchen or servery as well as behind a bar.

What test standard is the energy figure based on?
Williams tests the HB3USBHC to EN 16825, the standard for professional storage cabinets, at climate class 4 and temperature class M1. Under those conditions it uses 5.8 kWh per 24 hours.

Do you install it?
We supply the equipment only. The self-contained HB3USBHC plugs into a 10 amp outlet. The remote HB3RSB must be connected to a condensing unit by a licensed refrigeration mechanic in your area.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HB3USBHC, from the date of invoice, carried out by Williams authorised service agents on the Australian mainland. The remote HB3RSB carries 12 months parts only. Warranty repairs must be logged with Williams first.
