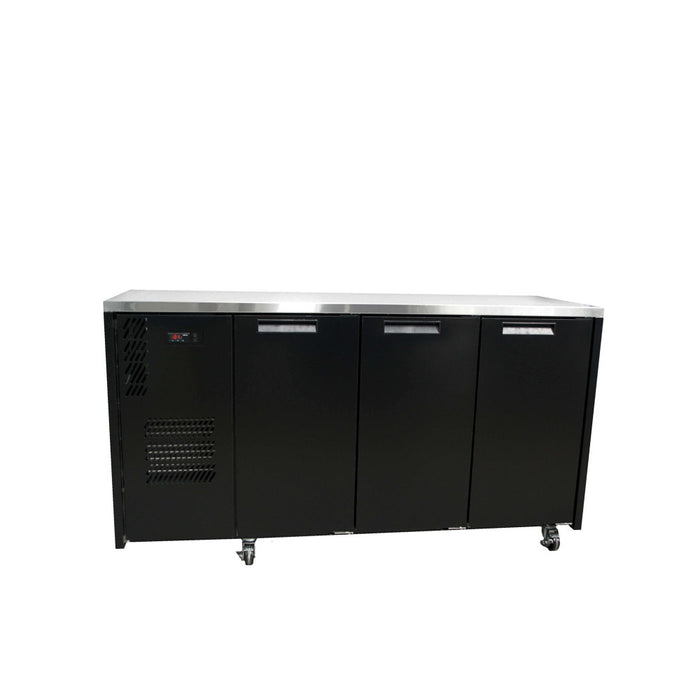

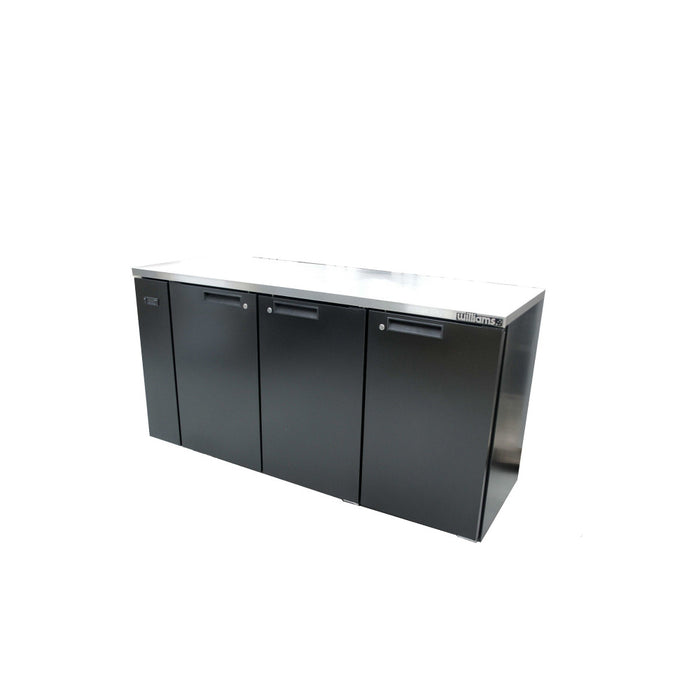

Williams Cameo HC3USBHC / HC3RSB - 3 Door Black Colorbond Undercounter Display Fridge 2017mm 640L

Williams Cameo HC3USBHC / HC3RSB - 3 Door Black Colorbond Undercounter Display Fridge 2017mm 640L

Three solid doors and 640 litres make the Williams Cameo HC3USBHC a serious cold store for a busy bar's back-up stock, holding +1°C to +4°C across a 2017mm run while the glass door fridges out front do the showing. The black Colorbond cabinet has a stainless steel countertop and internal floor, is rated for 40°C rooms and is made in Australia. The self-contained HC3USBHC runs on R290 from one 10 amp outlet; the remote HC3RSB is 1812mm wide and comes without a condensing unit. The HC3UGBHC is the lit glass door version, and the HC3USSHC the same solid door fridge in stainless steel.

Key features:

• 640 litres behind three solid, self-closing insulated doors
• Holds +1°C to +4°C, designed for 40°C ambient rooms
• Built to recover quickly after repeated door openings
• Adjustable electronic controller with digital temperature display
• Self-contained model: front breathing, R290 refrigerant, single refrigeration cassette that slides out for service
• Remote model: evaporator, TX valve, controller, three-pin plug and condensate drain fitted, ducted air flow
• Black Colorbond body with stainless steel countertop and internal floor
• 2 adjustable plastic-coated shelves per door (6 in total)
• Heavy-duty swivel castors with brakes (self-contained) or 150mm legs (remote)

Specifications:

• Model: Williams HC3USBHC (self-contained) or HC3RSB (remote)
• Capacity: 640 litres
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Self-contained HC3USBHC: 2017 W x 650 D x 1050 H mm on 120mm castors, 200 kg, R290 hydrocarbon refrigerant, 10 amp plug with 2 m cable, 1.8 A running current
• Self-contained energy use: 8.1 kWh per 24 hours, tested to EN 16825 (climate class 4, M1)
• Remote HC3RSB: 1812 W x 650 D x 1080 H mm on 150mm legs, 190 kg, R448a, 10 amp plug with 2 m cable, 1.0 A running current
• Remote refrigeration duty: 750 W at -5°C saturated suction temperature
• Doors: 3 solid doors, self-closing
• Finish: black Colorbond interior and exterior (excluding rear and underside) with stainless steel countertop and internal floor
• Shelves: 2 adjustable plastic-coated shelves per door
• Origin: made in Australia

Good to know before you buy:

• Access: the self-contained unit is 2017mm long, 650mm deep and 200 kg; the remote is 1812mm and 190 kg. Delivery is by tailgate truck to the front of your premises, so plan the move through doorways and around corners.
• Power: one standard 10 amp outlet for either version.
• Remote version: the HC3RSB is supplied without a condensing unit. A licensed refrigeration mechanic must supply, size and install the condensing unit (750 W at -5°C SST), pipework and controls. Solenoids are not fitted or supplied. Williams can advise on sizing. We supply the equipment only.
• Airflow: the self-contained model takes in and discharges air at the front grille, so no side or rear gap is needed. Keep the grille clear.
• Options: interior light for solid doors, locks, extra or stainless steel shelves, a black countertop, or legs instead of castors. Pass-through doors are available on the remote version only. Ask us.

Compare similar models:

• Williams HC3USSHC: the same three solid door fridge in stainless steel
• Williams HC3UGBHC: three door black Cameo with lit glass doors
• Williams HC2USBHC: two solid doors, 420 litres, 1497mm wide
• Williams HC4USBHC: four solid doors, 870 litres, 2537mm wide
• Williams HB3USBHC: Boronia three door solid black back bar fridge, 2189mm wide

Common questions:

How much power does it draw?
The self-contained HC3USBHC runs at about 1.8 A from a standard 10 amp outlet. Williams measured it at 8.1 kWh per 24 hours under EN 16825 test conditions (climate class 4, M1). The remote HC3RSB draws about 1.0 A for its fans, controller and lights.

Can I mix glass and solid doors on one cabinet?
Not as a stock item. The HC3USBHC has three solid doors and the HC3UGBHC three glass doors. Williams builds to order, so ask us about a custom door layout.

Do you install it?
The self-contained HC3USBHC plugs into a 10 amp outlet. The remote HC3RSB must be connected to a condensing unit by a licensed refrigeration mechanic. We supply the equipment only.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HC3USBHC (12 months parts only on the remote HC3RSB), from the date of invoice. Warranty repairs must be logged with Williams first and are carried out by Williams authorised service agents on the Australian mainland.
