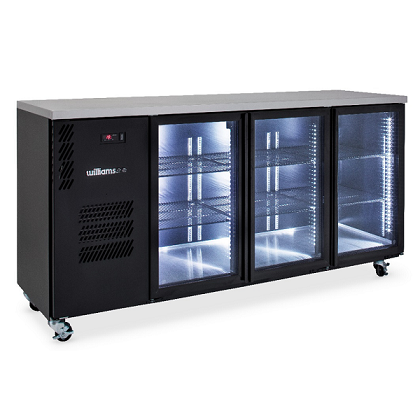

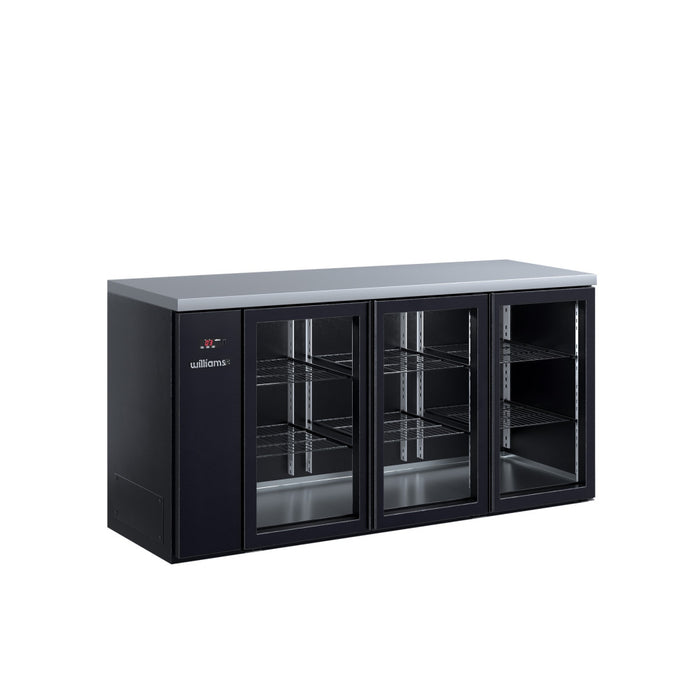

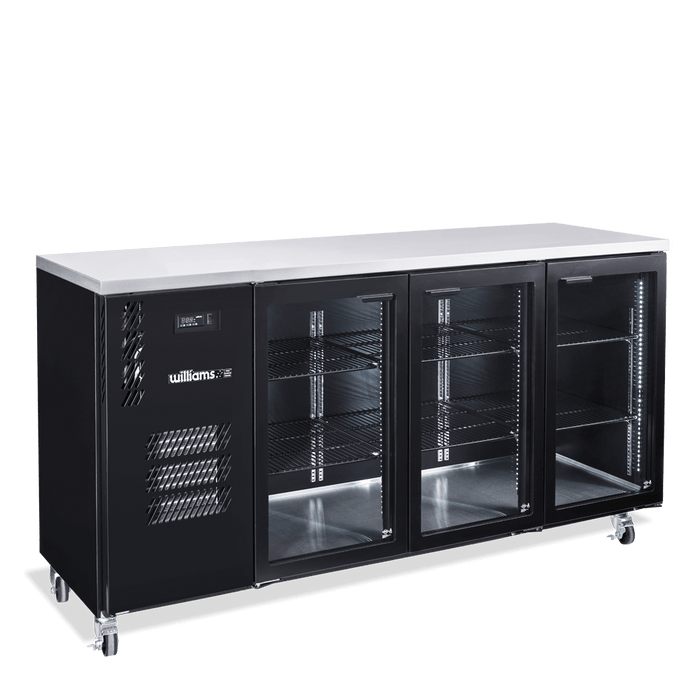

Williams Cameo HC3UGBHC / HC3RGB - 3 Door Black Colorbond Undercounter Display Fridge 2017mm 640L

Williams Cameo HC3UGBHC / HC3RGB - 3 Door Black Colorbond Undercounter Display Fridge 2017mm 640L

Three lit glass doors across 2017mm make the Williams Cameo HC3UGBHC a strong choice for a busy pub or club back bar, with 640 litres held at +1°C to +4°C and a black Colorbond finish that hides scuffs behind the bar. Williams builds it in Australia, rates it for 40°C rooms and engineers it to recover quickly after the constant door openings of a full service. The self-contained HC3UGBHC runs on R290 from a single 10 amp outlet; the remote HC3RGB is a narrower 1812mm cabinet with no condensing unit. The HC3UGSHC is the stainless steel version and the HC3USBHC has solid doors.

Key features:

• 640 litres behind three triple-glazed, self-closing glass doors
• Holds +1°C to +4°C, designed for 40°C ambient rooms
• Cool white LED strip lighting with a soft-touch on/off dimmer switch
• Adjustable electronic controller with digital temperature display
• Self-contained model: front breathing, R290 refrigerant, refrigeration in a removable cassette
• Remote model: evaporator, TX valve, controller, three-pin plug and condensate drain fitted, with ducted air flow
• Black Colorbond body with stainless steel countertop and internal floor
• 2 adjustable plastic-coated shelves per door (6 in total)
• Heavy-duty swivel castors with brakes (self-contained) or 150mm legs (remote)

Specifications:

• Model: Williams HC3UGBHC (self-contained) or HC3RGB (remote)
• Capacity: 640 litres
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Self-contained HC3UGBHC: 2017 W x 650 D x 1050 H mm on 120mm castors, 200 kg, R290 hydrocarbon refrigerant, 10 amp plug with 2 m cable, 1.8 A running current
• Self-contained energy use: 3.22 kWh per 24 hours (climate class 3, temperature class M1)
• Remote HC3RGB: 1812 W x 650 D x 1080 H mm on 150mm legs, 190 kg, R448a, 10 amp plug with 2 m cable, 1.0 A running current
• Remote refrigeration duty: 750 W at -5°C saturated suction temperature
• Doors: 3 triple-glazed glass doors, self-closing
• Finish: black Colorbond interior and exterior (excluding rear and underside) with stainless steel countertop and internal floor
• Shelves: 2 adjustable plastic-coated shelves per door
• Origin: made in Australia

Good to know before you buy:

• Access: the self-contained unit is just over 2 metres long, 650mm deep and 200 kg; the remote is 1812mm and 190 kg. Delivery is by tailgate truck to the front of your premises, so measure doorways and corners on the way to the bar.
• Power: one standard 10 amp outlet for either version.
• Remote version: the HC3RGB is supplied without a condensing unit. A licensed refrigeration mechanic must supply, size and install the condensing unit (750 W at -5°C SST), pipework and controls. Solenoids are not fitted or supplied. Williams can advise on sizing. We supply the equipment only.
• Airflow: the self-contained model takes in and discharges air through the front grille, so it can be enclosed at the sides and back. Keep the grille clear.
• Options: heated glass doors, locks, warm LED lights, extra or stainless steel shelves, a black countertop, or legs instead of castors. Ask us.

Compare similar models:

• Williams HC3UGSHC: the same three door fridge in stainless steel
• Williams HC3USBHC: three door black Cameo with solid doors
• Williams HC2UGBHC: two doors, 420 litres, 1497mm wide
• Williams HC4UGBHC: four doors, 870 litres, 2537mm wide
• Williams HCM3UGBHC: Cameo Mini three door, 850mm high with 485 litres

Common questions:

Is one refrigeration system enough for three doors?
Yes. The self-contained HC3UGBHC uses a single forced-air system in a removable cassette, rated for 40°C rooms, and Williams designs it to hold +1°C to +4°C through heavy door use.

How do the shelves adjust?
Each door has two plastic-coated shelves sitting on adjustable strips and clips, so you can set a tall slot for bottles and a shorter one for cans. Extra shelves and stainless steel shelves are options.

Do you install it?
The self-contained HC3UGBHC plugs into a 10 amp outlet. The remote HC3RGB must be connected to a condensing unit by a licensed refrigeration mechanic. We supply the equipment only.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HC3UGBHC (12 months parts only on the remote HC3RGB), from the date of invoice. Warranty repairs must be logged with Williams first and are carried out by Williams authorised service agents on the Australian mainland.
