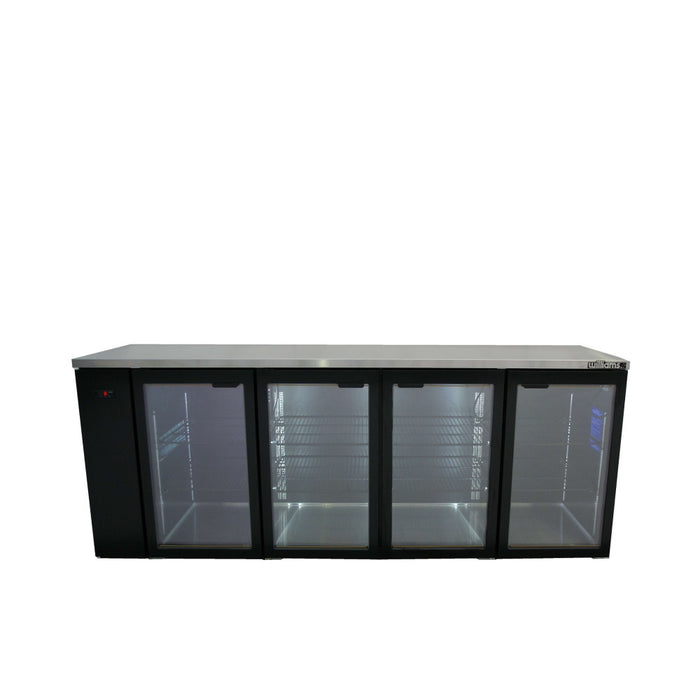

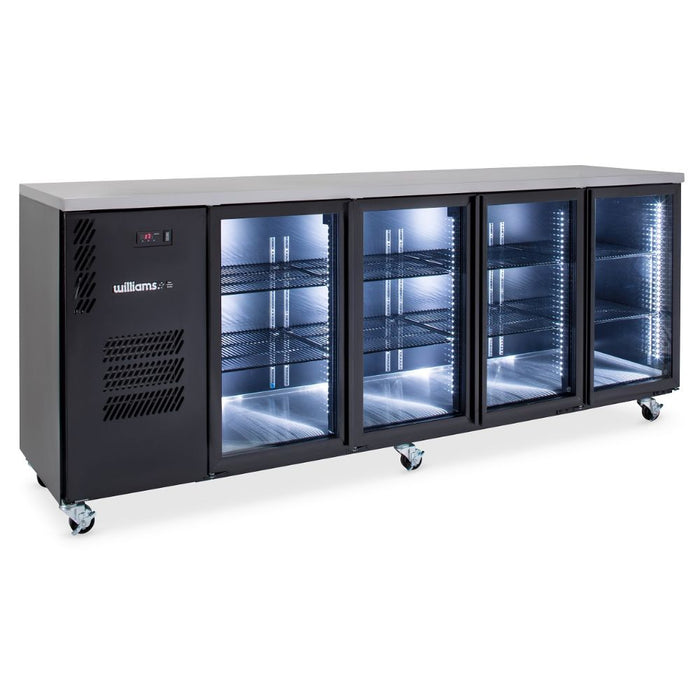

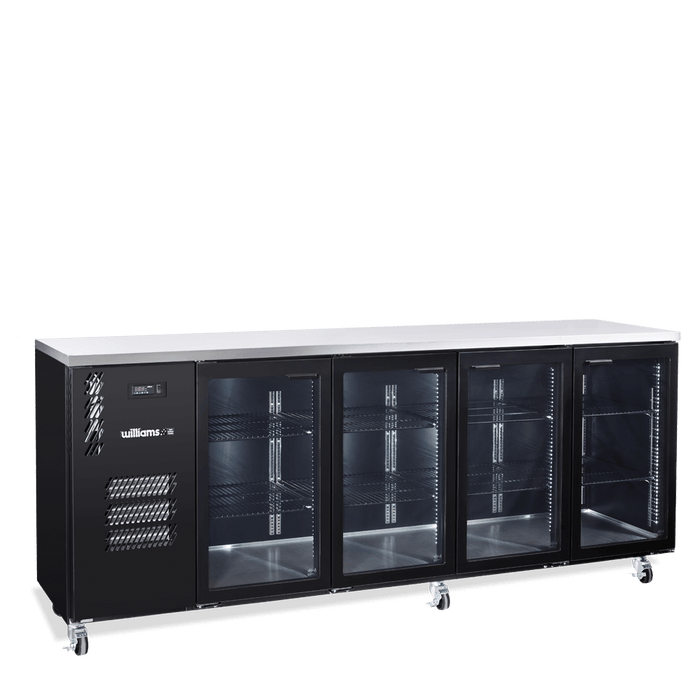

Williams Cameo HC4UGBHC / HC4RGB - 4 Door Black Colorbond Undercounter Display Fridge 2537mm 870L

Williams Cameo HC4UGBHC / HC4RGB - 4 Door Black Colorbond Undercounter Display Fridge 2537mm 870L

For a long back bar that needs one fridge rather than two, the Williams Cameo HC4UGBHC runs four lit glass doors across 2537mm and holds 870 litres of drinks at +1°C to +4°C. It is the largest self-contained Cameo, Australian made in black Colorbond with a stainless steel top, rated for 40°C rooms and still running from a single 10 amp outlet on R290 refrigerant. The remote HC4RGB is the same four door cabinet at 2340mm wide with no condensing unit. The HC4UGSHC is the stainless steel version, and the HC4USBHC swaps the glass for solid doors.

Key features:

• 870 litres behind four triple-glazed, self-closing glass doors
• Holds +1°C to +4°C, designed for 40°C ambient rooms
• Engineered to maintain temperature through continual door opening at service
• Cool white LED strip lighting with a soft-touch on/off dimmer switch
• Adjustable electronic controller with digital temperature display
• Self-contained model: front breathing, R290 refrigerant, single refrigeration cassette that slides out for service
• Remote model: evaporator, TX valve, controller, three-pin plug and condensate drain fitted, ducted air flow
• Black Colorbond body with stainless steel countertop and internal floor
• 2 adjustable plastic-coated shelves per door (8 in total); castors with brakes or 150mm legs on the remote

Specifications:

• Model: Williams HC4UGBHC (self-contained) or HC4RGB (remote)
• Capacity: 870 litres
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Self-contained HC4UGBHC: 2537 W x 650 D x 1050 H mm on 120mm castors, 230 kg, R290 hydrocarbon refrigerant, 10 amp plug with 2 m cable, 2.8 A running current
• Self-contained energy use: 4.29 kWh per 24 hours (climate class 3, temperature class M1)
• Remote HC4RGB: 2340 W x 650 D x 1080 H mm on 150mm legs, 220 kg, R448a, 10 amp plug with 2 m cable, 1.3 A running current
• Remote refrigeration duty: 900 W at -5°C saturated suction temperature
• Doors: 4 triple-glazed glass doors, self-closing
• Finish: black Colorbond interior and exterior (excluding rear and underside) with stainless steel countertop and internal floor
• Shelves: 2 adjustable plastic-coated shelves per door
• Origin: made in Australia

Good to know before you buy:

• Access: the self-contained unit is 2537mm long, 650mm deep and 230 kg; the remote is 2340mm and 220 kg. It is delivered by tailgate truck to the front of your premises only, so plan the path to the bar, including any lift, before ordering.
• Power: one standard 10 amp outlet for either version.
• Remote version: the HC4RGB is supplied without a condensing unit. A licensed refrigeration mechanic must supply, size and install the condensing unit (900 W at -5°C SST), pipework and controls. Solenoids are not fitted or supplied. Williams can advise on sizing. We supply the equipment only.
• Airflow: the self-contained model breathes through the front grille only, so it can be built in hard against joinery at the sides and back. Keep the grille clear.
• Options: heated glass doors, locks, warm LED lights, extra or stainless steel shelves, a black countertop, or legs instead of castors. Ask us.

Compare similar models:

• Williams HC4UGSHC: the same four door fridge in stainless steel
• Williams HC4USBHC: four door black Cameo with solid doors
• Williams HC3UGBHC: three doors, 640 litres, 2017mm wide
• Williams HC5RGB: five door remote-only Cameo, 1100 litres, 2866mm wide
• Williams HCM4UGBHC: Cameo Mini four door, 850mm high with 658 litres

Common questions:

Is there a five door self-contained Cameo?
No. Four doors is the largest self-contained size. The five door HC5RGB is remote only, so it needs a condensing unit installed elsewhere.

Can I switch the lights off when the bar is closed?
Yes. A soft-touch on/off dimmer switch for the LED strip lighting is standard on the glass door models.

Do you install it?
The self-contained HC4UGBHC plugs into a 10 amp outlet. The remote HC4RGB must be connected to a condensing unit by a licensed refrigeration mechanic. We supply the equipment only.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HC4UGBHC (12 months parts only on the remote HC4RGB), from the date of invoice. Warranty repairs must be logged with Williams first and are carried out by Williams authorised service agents on the Australian mainland.
