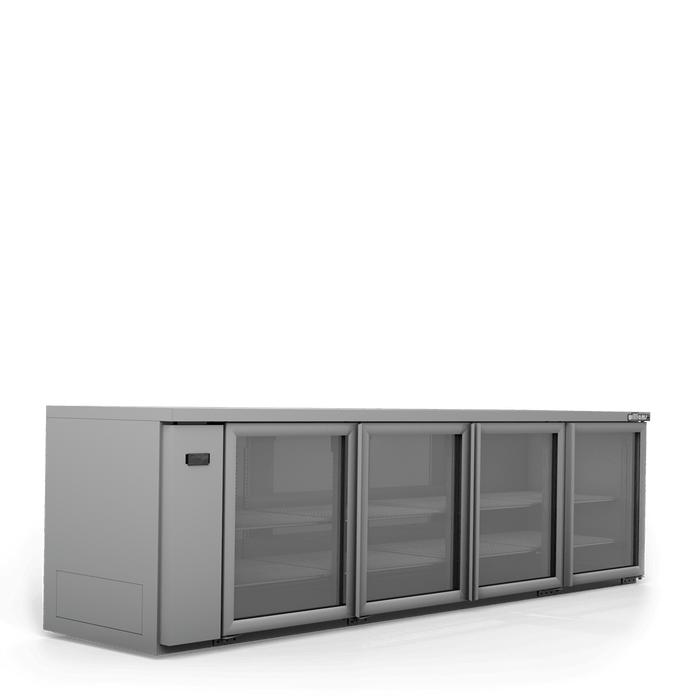

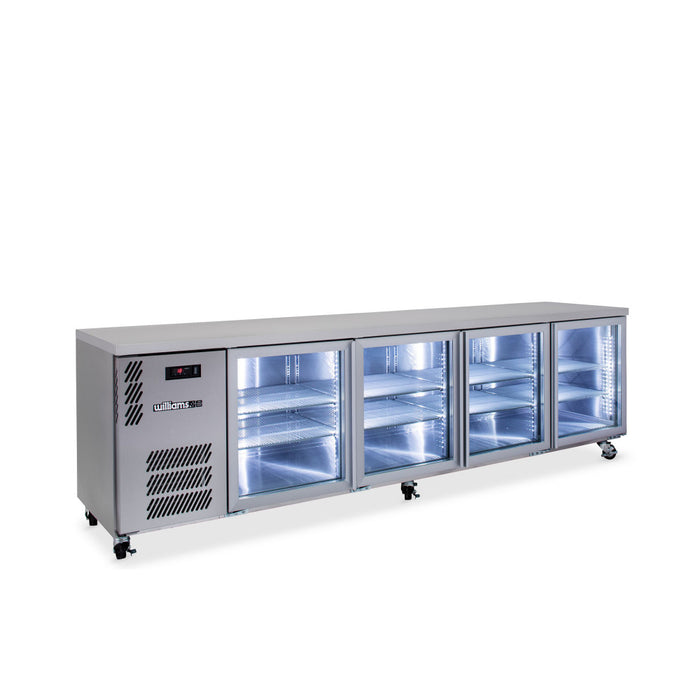

Williams Boronia HB4UGSHC / HB4RGS - 4 Door Stainless Steel Undercounter Display Fridge 2775mm 760L

Williams Boronia HB4UGSHC / HB4RGS - 4 Door Stainless Steel Undercounter Display Fridge 2775mm 760L

Built for the longest bars, the Williams Boronia HB4UGSHC is the four-door stainless steel glass door model in Williams' Australian-made Boronia range, with 760 litres of chilled display across 2775mm. It runs on R290 hydrocarbon refrigerant (the HC in the code), holds +1°C to +4°C in rooms up to 40°C, uses 3.68 kWh a day, and plugs into a 10 amp outlet like every other Boronia. The HB4UGBHC is the same fridge in black Colorbond, the HB4USSHC has solid doors, and the HB4RGS is the remote cabinet for venues running a central condensing unit.

Key features:

• Stainless steel interior and exterior (excluding rear and underside) with a stainless floor
• 760 litres behind four triple-glazed, self-closing glass doors with cylindrical locks
• R290 natural hydrocarbon refrigerant
• Holds +1°C to +4°C in room temperatures up to 40°C
• Adjustable electronic controller with digital temperature display
• Cool white LED strip lighting with a soft-touch on/off dimmer
• Eight adjustable plastic-coated shelves, two per door, on strips and clips
• Front-breathing refrigeration in a removable cassette, with auto defrost and waste heat vaporiser so no drain is needed
• Made in Australia, on heavy-duty swivel castors with brakes

Specifications:

• Model: Williams HB4UGSHC (self-contained) or HB4RGS (remote)
• Capacity: 760 litres
• Dimensions, self-contained: 2775 W x 650 D x 845 H mm on 120mm castors
• Dimensions, remote: 2555 W x 650 D x 875 H mm on 150mm legs
• Weight: 170 kg (self-contained), 160 kg (remote)
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Refrigerant: R290 hydrocarbon (self-contained), R448A (remote)
• Power: 10 amp plug with 2 m cable, 2.6 A running current (self-contained), 1.6 A (remote)
• Energy use: 3.68 kWh per 24 hours (temperature class M1, climate class 3)
• Remote refrigeration duty: 850 W at -5°C SST
• Doors: 4 triple-glazed glass doors with cylindrical locks
• Finish: stainless steel interior and exterior, excluding rear and underside
• Shelves: 8 adjustable plastic-coated shelves (2 per door)
• Origin: made in Australia

Good to know before you buy:

• Access: 2775mm long, 650mm deep, 845mm high on castors and 170 kg. Delivered by tailgate truck to the front of your premises; a 2.8 m cabinet needs a clear path through doors and corners, and three people to move it.
• Power: standard 10 amp power point, 2 m cable.
• Finish: the rear and underside are not stainless as standard. A stainless rear and underside is an option.
• Remote version: the HB4RGS comes without a condensing unit. Your refrigeration mechanic supplies and installs a condensing unit for 850 W at -5°C SST on R448A, with pipework and controls (no solenoids supplied). Williams can advise on sizing. We supply the equipment only.
• Airflow: front breathing. Keep the front grille clear and it can be built into the bar.

Compare similar models:

• Williams HB4UGBHC: the same four-door fridge in black Colorbond
• Williams HB4USSHC: stainless four-door Boronia with solid doors
• Williams HB3UGSHC: three glass doors, 2189mm wide, 560 litres
• Williams Cameo HC4UGSHC: four-door stainless Cameo, 2537mm wide, 1000 litres

Common questions:

What refrigerant does it use?
The self-contained HB4UGSHC runs on R290, a natural hydrocarbon refrigerant, which is what the HC in the model code stands for. The remote HB4RGS is designed for R448A, charged by your refrigeration mechanic when the condensing unit is connected.

Can I run the HB4UGSHC on a remote condensing unit instead?
Not this one. Choose the HB4RGS variant, which is the same 760 litre cabinet supplied without a condensing unit and rated at 850 W at -5°C SST. The warranty on the remote cabinet is 12 months parts only.

Do you install it?
We supply the equipment only. The self-contained HB4UGSHC plugs into a 10 amp outlet. The remote HB4RGS must be connected to a condensing unit by a licensed refrigeration mechanic in your area.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HB4UGSHC, from the date of invoice, carried out by Williams authorised service agents on the Australian mainland. The remote HB4RGS carries 12 months parts only. Warranty repairs must be logged with Williams first.
