Williams Boronia HB4USSHC / HB4RSS - 4 Door Stainless Steel Undercounter Display Fridge 2775mm 760L

Williams Boronia HB4USSHC / HB4RSS - 4 Door Stainless Steel Undercounter Display Fridge 2775mm 760L

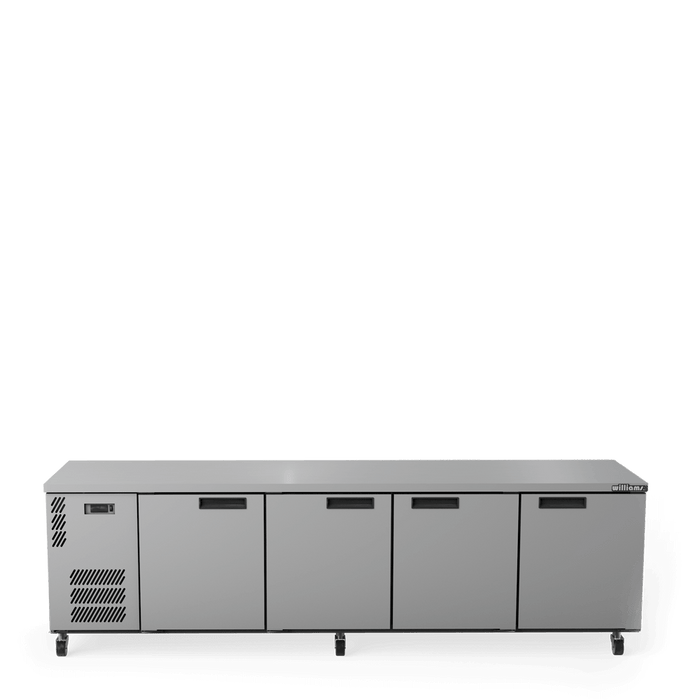

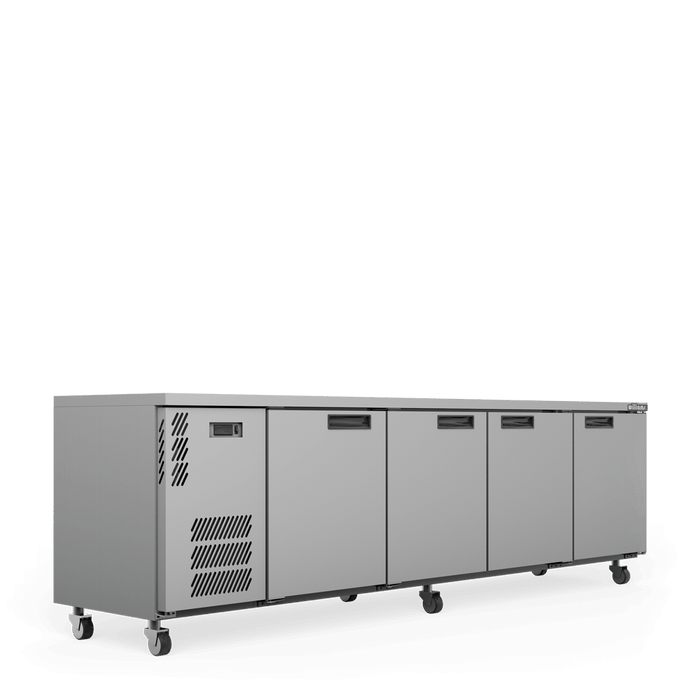

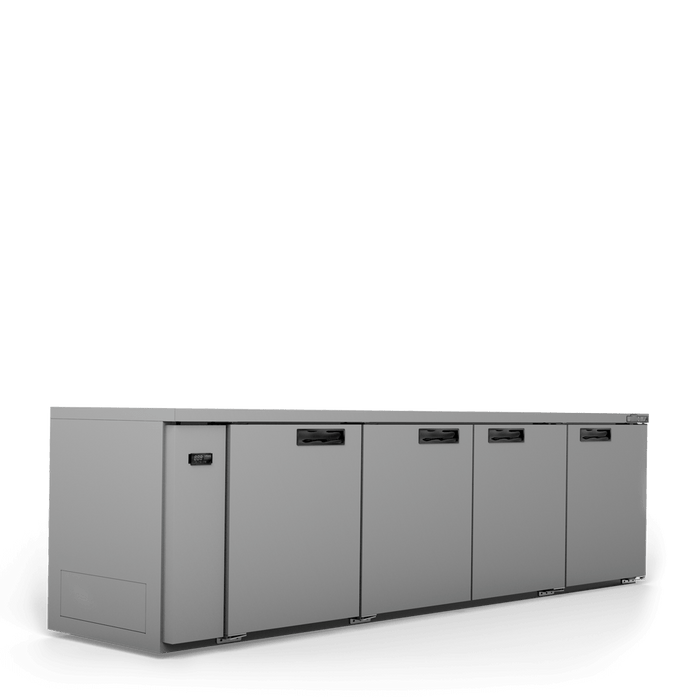

The Williams Boronia HB4USSHC is the largest solid door model in the Boronia range: a 2775mm stainless steel cabinet with four doors and 760 litres of under-counter storage, made in Australia for high-volume bars, kitchens and function venues. It runs on R290 hydrocarbon refrigerant, holds +1°C to +4°C in rooms up to 40°C, is tested to EN 16825 at 6.6 kWh per day, and plugs into a 10 amp outlet. The HB4UGSHC is the glass door version with LED lighting, the HB4USBHC is the same solid door fridge in black Colorbond, and the HB4RSS is the remote cabinet for venues with a central condensing unit.

Key features:

• Stainless steel interior and exterior (excluding rear and underside)
• Four self-closing solid doors with cylindrical locks, 2775mm wide
• 760 litres at +1°C to +4°C, rated for a 40°C ambient
• R290 natural hydrocarbon refrigerant
• Adjustable electronic controller with digital temperature display
• Eight adjustable plastic-coated shelves (two per door) on strips and clips
• Front-breathing refrigeration in a removable cassette for easy service access
• Auto defrost with waste heat recovery vaporiser, no drain connection required
• Made in Australia, on heavy-duty swivel castors with brakes

Specifications:

• Model: Williams HB4USSHC (self-contained) or HB4RSS (remote)
• Capacity: 760 litres
• Dimensions, self-contained: 2775 W x 650 D x 845 H mm on 120mm castors
• Dimensions, remote: 2555 W x 650 D x 875 H mm on 150mm legs
• Weight: 170 kg (self-contained), 160 kg (remote)
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Refrigerant: R290 hydrocarbon (self-contained), R448A (remote)
• Power: 10 amp plug with 2 m cable, 2.6 A running current (self-contained), 1.6 A (remote)
• Energy use: 6.6 kWh per 24 hours, tested to EN 16825 (climate class 4, temperature class M1)
• Remote refrigeration duty: 850 W at -5°C SST
• Doors: 4 solid doors with cylindrical locks
• Finish: stainless steel interior and exterior, excluding rear and underside
• Shelves: 8 adjustable plastic-coated shelves (2 per door)
• Origin: made in Australia

Good to know before you buy:

• Access: 2775 W x 650 D x 845 H mm on castors and 170 kg, delivered in one piece by tailgate truck to the front of your premises. Measure the entrance and any corners for a 2.8 m cabinet and have three people on hand to move it.
• Power: plugs into a standard 10 amp power point.
• Finish: the rear and underside are not stainless as standard; a stainless rear and underside is an option.
• Remote version: the HB4RSS is supplied without a condensing unit. A licensed refrigeration mechanic supplies and installs a condensing unit for 850 W at -5°C SST on R448A, plus pipework and controls (no solenoids supplied). Williams can advise on sizing. We supply the equipment only.
• Airflow: front breathing. Keep the front grille clear.

Compare similar models:

• Williams HB4UGSHC: the same stainless cabinet with glass doors and LED lighting
• Williams HB4USBHC: four solid doors in black Colorbond
• Williams HB3USSHC: three solid doors, 2189mm wide, 560 litres
• Williams Cameo HC4USSHC: four solid door stainless Cameo, 2537mm wide, 870 litres

Common questions:

How much power does it draw?
The HB4USSHC runs at 2.6 A on a 10 amp plug and uses 6.6 kWh per 24 hours when tested to EN 16825 at climate class 4, temperature class M1.

Can I add more shelves?
Yes. It comes with two plastic-coated shelves per door on adjustable strips and clips. Extra plastic-coated shelves and a stainless steel shelf upgrade are available; ask us for a price.

Do you install it?
We supply the equipment only. The self-contained HB4USSHC plugs into a 10 amp outlet. The remote HB4RSS must be connected to a condensing unit by a licensed refrigeration mechanic in your area.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HB4USSHC, from the date of invoice, carried out by Williams authorised service agents on the Australian mainland. The remote HB4RSS carries 12 months parts only. Warranty repairs must be logged with Williams first.
