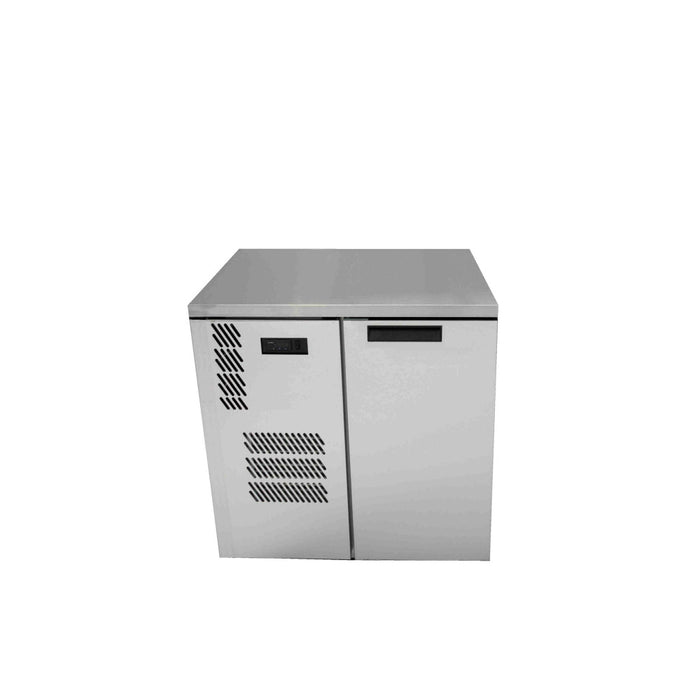

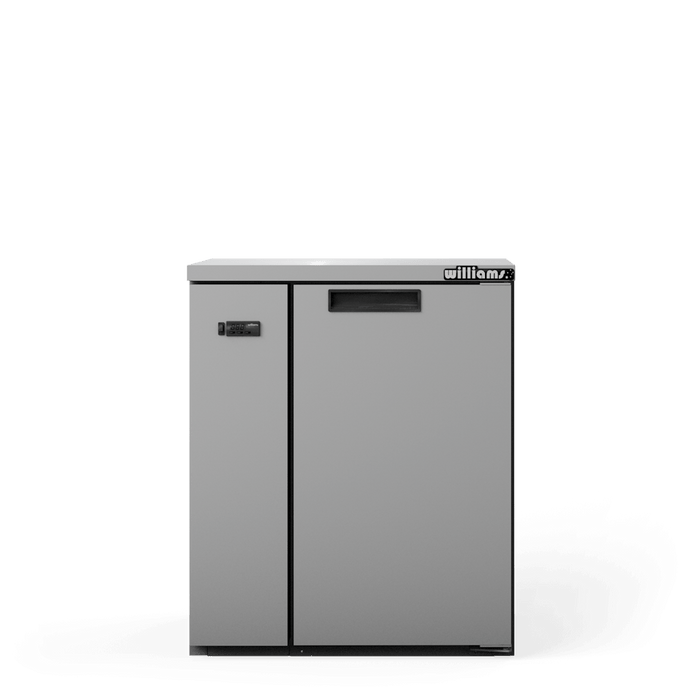

Williams Cameo HC1USS / HC1RSS - 1 Door Stainless Steel Undercounter Display Fridge 977mm 200L

Williams Cameo HC1USS / HC1RSS - 1 Door Stainless Steel Undercounter Display Fridge 977mm 200L

The Williams Cameo HC1USS is a one door, 200 litre undercounter fridge with a solid stainless steel door, made for the working side of a bar or a cafe servery where you want cold storage that wipes clean and does not need a glass display. The cabinet is stainless steel inside and out (excluding rear and underside), holds +1°C to +4°C and is rated for 40°C rooms. Choose the self-contained HC1USS, 977mm wide on R134a refrigerant from a 10 amp outlet, or the remote HC1RSS, a 772mm cabinet supplied without a condensing unit. The HC1UGS is the glass door version, and the HC1USB is the same solid door fridge in black.

Key features:

• Stainless steel interior and exterior, excluding rear and underside
• 200 litres behind a solid, self-closing insulated door
• +1°C to +4°C operation, designed for 40°C ambient rooms
• Adjustable electronic controller with digital temperature display
• Self-contained model is front breathing with a removable refrigeration cassette
• Remote model fitted with evaporator, TX valve, controller, three-pin plug and condensate drain
• 2 adjustable plastic-coated shelves on strips and clips
• Heavy-duty swivel castors with brakes (self-contained) or 150mm legs (remote)
• Australian made by Williams

Specifications:

• Model: Williams HC1USS (self-contained) or HC1RSS (remote)
• Capacity: 200 litres
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Self-contained HC1USS: 977 W x 650 D x 1050 H mm on 120mm castors, 160 kg, R134a, 10 amp plug with 2 m cable, 1.7 A running current
• Self-contained energy use: 2.83 kWh per 24 hours, tested to EN 16825 (climate class 4, M1)
• Remote HC1RSS: 772 W x 650 D x 1080 H mm on 150mm legs, 120 kg, R448a, 10 amp plug with 2 m cable, 0.7 A running current
• Remote refrigeration duty: 350 W at -5°C saturated suction temperature
• Door: 1 solid door, self-closing
• Finish: stainless steel interior and exterior, excluding rear and underside
• Shelves: 2 adjustable plastic-coated shelves
• Origin: made in Australia

Good to know before you buy:

• Access: 977mm wide and 160 kg as a self-contained unit, or 772mm and 120 kg as a remote. Delivery is by tailgate truck to the front of your premises and does not include bringing it inside.
• Power: standard 10 amp outlet for either version.
• Remote version: the HC1RSS needs a condensing unit (350 W at -5°C SST), pipework and controls supplied, sized and installed by a licensed refrigeration mechanic. Solenoids are not fitted or supplied. Williams can advise on condensing unit sizing. We supply the equipment only.
• Airflow: the self-contained unit draws and discharges air through the front grille, so keep it clear. It needs no gap at the sides or back.
• Options: an interior light for the solid door, locks, stainless steel shelves, pass-through doors, a stainless rear and underside, or legs instead of castors. Ask us.

Compare similar models:

• Williams HC1USB: the same solid door fridge in black Colorbond with a stainless top
• Williams HC1UGS: one door stainless Cameo with a lit glass door
• Williams HC2USSHC: two solid doors, 420 litres, 1497mm wide
• Williams HB1USS: Boronia one door solid stainless back bar fridge, 1017mm wide, 180 litres

Common questions:

Can I use it as a general undercounter fridge in the kitchen?
It is built as a back bar cabinet with a stainless countertop and internal floor, and it holds +1°C to +4°C, so it works for chilled drinks and packaged stock. It is front breathing, so it can sit in a run of benches.

Why is the one door model on R134a when the others use R290?
Williams builds the one door Cameo on R134a. One practical result is that pass-through doors, which are only offered on non-hydrocarbon models, can be specified on this size.

Do you install it?
The self-contained HC1USS plugs into a 10 amp power point. The remote HC1RSS must be connected to a condensing unit by a licensed refrigeration mechanic. We supply the equipment only.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HC1USS (12 months parts only on the remote HC1RSS), from the date of invoice. Warranty repairs must be logged with Williams first and are carried out by Williams authorised service agents on the Australian mainland.
