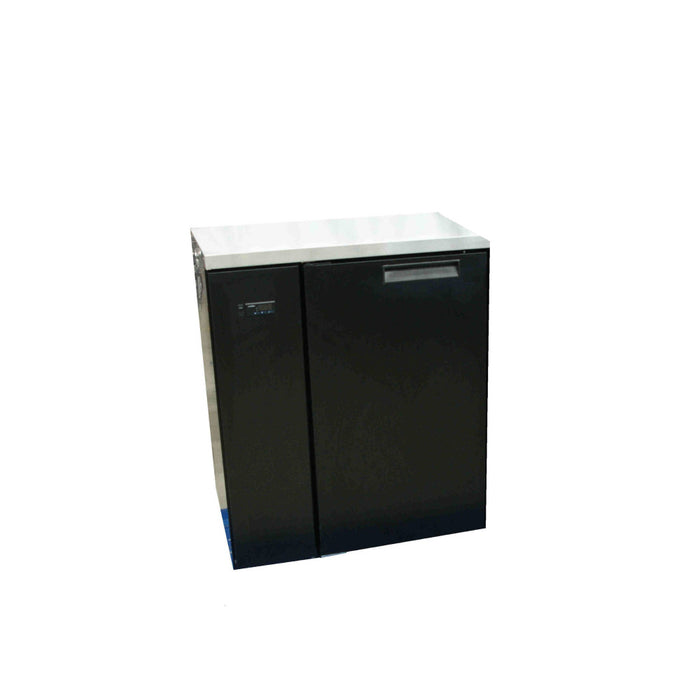

Williams Cameo HC1USB / HC1RSB - 1 Door Black Colorbond Undercounter Display Fridge 977mm 200L

Williams Cameo HC1USB / HC1RSB - 1 Door Black Colorbond Undercounter Display Fridge 977mm 200L

Not every bar fridge needs to be seen into. The Williams Cameo HC1USB is the solid door version of the one door Cameo: 200 litres of back-up stock, mixers or kegs of juice held at +1°C to +4°C behind an insulated black Colorbond door, with no glass to keep clean and no interior light as standard. It is Australian made, rated for 40°C rooms and plugs into a 10 amp outlet. The self-contained HC1USB is 977mm wide with the refrigeration in an end compartment and uses R134a; the remote HC1RSB is 772mm wide and comes without a condensing unit. For a glass door, see the HC1UGB.

Key features:

• 200 litres behind a solid, self-closing insulated door
• Holds +1°C to +4°C, designed for 40°C ambient rooms
• Adjustable electronic controller with digital temperature display
• Self-contained model is front breathing, with the refrigeration in a removable cassette
• Remote model has evaporator, TX valve, controller, three-pin plug and condensate drain fitted
• Black Colorbond body with stainless steel countertop and internal floor
• 2 adjustable plastic-coated shelves on strips and clips
• Heavy-duty swivel castors with brakes (self-contained) or 150mm legs (remote)
• Interior LED light available as an option

Specifications:

• Model: Williams HC1USB (self-contained) or HC1RSB (remote)
• Capacity: 200 litres
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Self-contained HC1USB: 977 W x 650 D x 1050 H mm on 120mm castors, 160 kg, R134a refrigerant, 10 amp plug with 2 m cable, 1.7 A running current
• Self-contained energy use: 2.83 kWh per 24 hours, tested to EN 16825 (climate class 4, M1)
• Remote HC1RSB: 772 W x 650 D x 1080 H mm on 150mm legs, 120 kg, R448a, 10 amp plug with 2 m cable, 0.7 A running current
• Remote refrigeration duty: 350 W at -5°C saturated suction temperature
• Door: 1 solid door, self-closing
• Finish: black Colorbond interior and exterior (excluding rear and underside) with stainless steel countertop and internal floor
• Shelves: 2 adjustable plastic-coated shelves
• Origin: made in Australia

Good to know before you buy:

• Access: the self-contained unit is 977mm wide, 650mm deep and 160 kg; the remote is 772mm wide and 120 kg. Delivery is by tailgate truck to the front of your premises, so check the doorway and the space under the counter.
• Power: standard 10 amp outlet for either version.
• Remote version: the HC1RSB is supplied without a condensing unit. A licensed refrigeration mechanic must supply, size and install the condensing unit (350 W at -5°C SST), pipework and controls. Solenoids are not fitted or supplied. Williams can advise on sizing. We supply the equipment only.
• Lighting: solid door Cameos have no interior light as standard. An LED light for solid doors is an option if you want to see stock at a glance.
• Options: interior light, locks, extra shelves, pass-through doors, right-hand services or legs instead of castors. Ask us.

Compare similar models:

• Williams HC1USS: the same solid door fridge in stainless steel
• Williams HC1UGB: one door black Cameo with a lit glass door for display
• Williams HC2USBHC: two solid doors, 420 litres, 1497mm wide
• Williams HB1USB: Boronia one door solid black back bar fridge, 1017mm wide, 180 litres

Common questions:

Why choose a solid door over glass?
A solid door suits stock you do not need to show, such as mixers, back-up bottles or prep items, and it does not need a lit display. The glass door HC1UGB is the better pick when customers choose from the fridge.

Does it have a light inside?
Not as standard. The LED light with dimmer switch is fitted to glass door models only. A light for solid doors can be added as an option.

Do you install it?
The self-contained HC1USB plugs into a 10 amp outlet. The remote HC1RSB must be connected to a condensing unit by a licensed refrigeration mechanic. We supply the equipment only.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HC1USB (12 months parts only on the remote HC1RSB), from the date of invoice. Warranty repairs must be logged with Williams first and are carried out by Williams authorised service agents on the Australian mainland.
