Williams Cameo HC1UGB / HC1RGB - 1 Door Black Colorbond Undercounter Display Fridge 977mm 200L

Williams Cameo HC1UGB / HC1RGB - 1 Door Black Colorbond Undercounter Display Fridge 977mm 200L

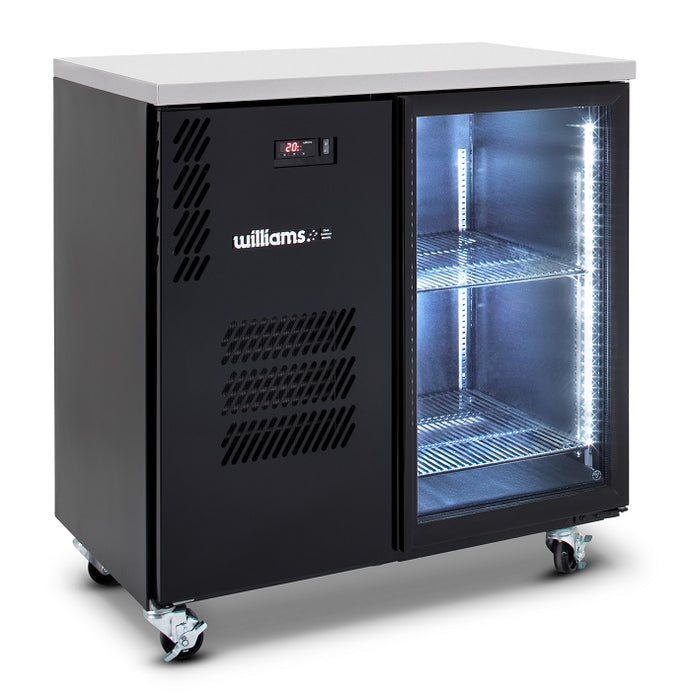

The Williams Cameo HC1UGB is the single door member of the Cameo back bar family: 200 litres of lit, chilled drinks display at +1°C to +4°C behind one triple-glazed glass door, in a black Colorbond cabinet with a stainless steel countertop and internal floor. It is made in Australia, rated for 40°C rooms and plugs into a 10 amp outlet. Choose the self-contained HC1UGB, which has its refrigeration built into a compartment at one end (977mm wide overall), or the remote HC1RGB, a narrower 772mm cabinet supplied without a condensing unit for sites that run central plant. Unlike the larger two to four door Cameos, the one door self-contained model uses R134a refrigerant, which also means it can be ordered with pass-through doors.

Key features:

• 200 litres behind a triple-glazed, self-closing glass door
• Holds +1°C to +4°C and is designed for 40°C ambient rooms
• Cool white LED strip lighting with a soft-touch on/off dimmer switch
• Adjustable electronic controller with digital temperature display
• Self-contained version is front breathing, with the refrigeration system in a removable cassette
• Remote version comes with evaporator, TX valve, controller, three-pin plug and condensate drain fitted
• Black Colorbond body with stainless steel countertop and internal floor
• 2 adjustable plastic-coated shelves on strips and clips
• Heavy-duty swivel castors with brakes on the self-contained model; 150mm legs on the remote

Specifications:

• Model: Williams HC1UGB (self-contained) or HC1RGB (remote)
• Capacity: 200 litres
• Temperature range: +1°C to +4°C
• Maximum room temperature: 40°C
• Self-contained HC1UGB: 977 W x 650 D x 1050 H mm on 120mm castors, 160 kg, R134a refrigerant, 10 amp plug with 2 m cable, 2.1 A running current
• Self-contained energy use: 2.83 kWh per 24 hours, tested to EN 16825 (climate class 4, M1)
• Remote HC1RGB: 772 W x 650 D x 1080 H mm on 150mm legs, 120 kg, R448a, 10 amp plug with 2 m cable for the fans, controller and lights, 0.7 A running current
• Remote refrigeration duty: 350 W at -5°C saturated suction temperature
• Door: 1 triple-glazed glass door, self-closing
• Finish: black Colorbond interior and exterior (excluding rear and underside) with stainless steel countertop and internal floor
• Shelves: 2 adjustable plastic-coated shelves
• Origin: made in Australia

Good to know before you buy:

• Access: the self-contained unit is 977mm wide, 650mm deep and 160 kg; the remote is 772mm wide and 120 kg. Delivery is by tailgate truck to the front of your premises and does not include bringing it inside.
• Power: both versions plug into a standard 10 amp outlet.
• Remote version: the HC1RGB is the same cabinet without a condensing unit. A licensed refrigeration mechanic must supply, size and install a suitable condensing unit (350 W duty at -5°C SST), pipework and controls. Solenoids are not fitted or supplied. Williams can advise on condensing unit sizing. We supply the equipment only.
• Airflow: the self-contained model breathes through the front grille, so keep it clear. It needs no side or rear gap.
• Options: pass-through doors, heated glass doors, locks, warm LED lights, extra shelves, right-hand services or legs instead of castors can be specified when you order. Ask us.

Compare similar models:

• Williams HC1UGS: the same one door fridge in stainless steel
• Williams HC1USB: one door black Cameo with a solid door instead of glass
• Williams HC2UGBHC: two doors, 420 litres, 1497mm wide, R290 refrigerant
• Williams HB1UGB: Boronia one door black back bar fridge, 1017mm wide, 180 litres

Common questions:

Why is the self-contained unit wider than the remote?
The HC1UGB carries its own refrigeration system in a compartment at one end, which adds about 205mm to the width. The remote HC1RGB leaves that out, so it is 772mm wide and relies on a condensing unit elsewhere.

Can I have a door on both sides so staff can load from behind?
Yes. Pass-through doors are an option on this one door model because it uses R134a rather than R290, and on the remote version. Pass-through adds about 70mm to the depth and may lower the ambient rating. Ask us for details.

Do you install it?
The self-contained HC1UGB plugs into a 10 amp outlet. The remote HC1RGB must be connected to a condensing unit by a licensed refrigeration mechanic. We supply the equipment only.

See all our bar fridges.

Warranty: Williams 24-month parts and labour warranty on the self-contained HC1UGB (12 months parts only on the remote HC1RGB), from the date of invoice. Warranty repairs must be logged with Williams first and are carried out by Williams authorised service agents on the Australian mainland.
