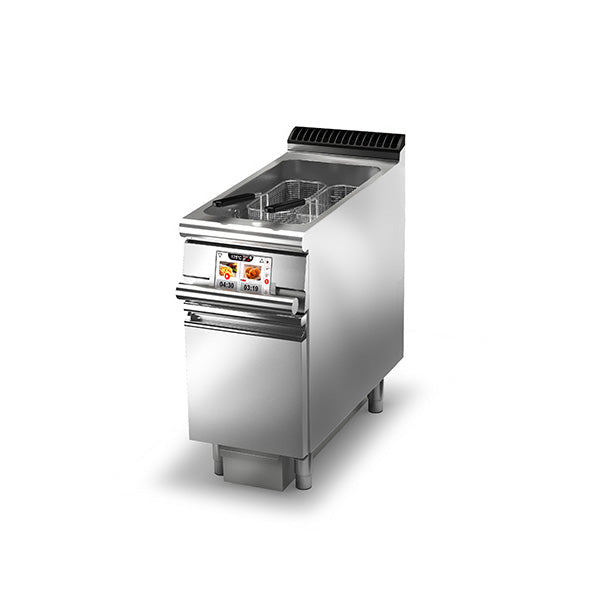

Baron Q90FREV/E422F - Queen 9 EVO Electric Deep Fryer 22L with Oil Filtration

Baron Q90FREV/E422F - Queen 9 EVO Electric Deep Fryer 22L with Oil Filtration

Filtering oil by hand is a messy end-of-shift job, and the Baron Q90FREV/E422F builds it into the fryer. This 22 litre, 22 kW EVO fryer has an on-board oil filtration system with a stainless steel first-stage filter and a washable second filter, plus automatic oil loading and draining. You still get the EVO's 7 inch touch screen, ±1°C control and up to 30 programs, which makes it a strong choice for high-volume kitchens that want to look after their oil. The E422FA adds automatic basket lifts.

Key features:

• Built-in oil filtration: AISI 304 stainless steel mechanical filter with holes of about 1 mm, then a washable, heat-resistant technopolymer filter
• Automatic oil loading and draining system with oil pump
• 22 litre pressed stainless steel tank with a large cold zone and foam overflow area
• 22 kW element with power-modulated heating
• 7 inch touch screen: 0 to 185°C with ±1°C accuracy, HACCP alarms, tank cleaning cycle, preheat and 100°C standby
• Up to 30 frying programs with pictures, loadable by USB stick
• Oil-use control software (OLC) and a melt cycle up to 100°C
• Element swings up more than 90° for cleaning, safety thermostat at 230°C
• Supplied with 2 baskets, a lid and a residue plate

Specifications:

• Model: Baron Q90FREV/E422F
• Oil capacity: 22 litres, 1 tank
• Tank size: 340 x 420 x 325 mm
• Temperature range: 0–185°C, accuracy ±1°C
• Oil filtration: built in, two-stage mechanical filters
• Dimensions: 400 W x 900 D x 900 H mm
• Weight: 78 kg
• Power: 400V three phase (3N), 50–60 Hz, 22 kW
• Construction: AISI 304 stainless steel, 2 mm (20/10) worktop, IPX5 rated
• Origin: Italy
• Packed weight for delivery: 88.6 kg

Good to know before you buy:

• Power: 22 kW on three-phase power. It must be connected by a licensed electrician. We supply the equipment only.
• Ventilation: install it under a suitable exhaust canopy for oil vapour and heat.
• Filters: the second-stage technopolymer filter is washable, so build cleaning it into your closing routine.
• Access: 88.6 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking.

Compare similar models:

• Baron Q90FREV/E422: same EVO fryer without built-in filtration
• Baron Q90FREV/E422FA: adds automatic basket lifts to filtration
• Baron Q90FRI/E422: standard 22 litre Queen 9 fryer, 18 kW, dial thermostat

Common questions:

How does the filtration work?
Oil passes through a stainless steel filter with holes of about 1 mm, then a washable technopolymer filter that copes with high temperatures. An automatic system drains and reloads the oil.

Are baskets included?
Yes. It comes with 2 baskets, a lid and a residue plate. Extra full and half baskets are available. Ask us for prices.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.

See all our commercial deep fryers.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
