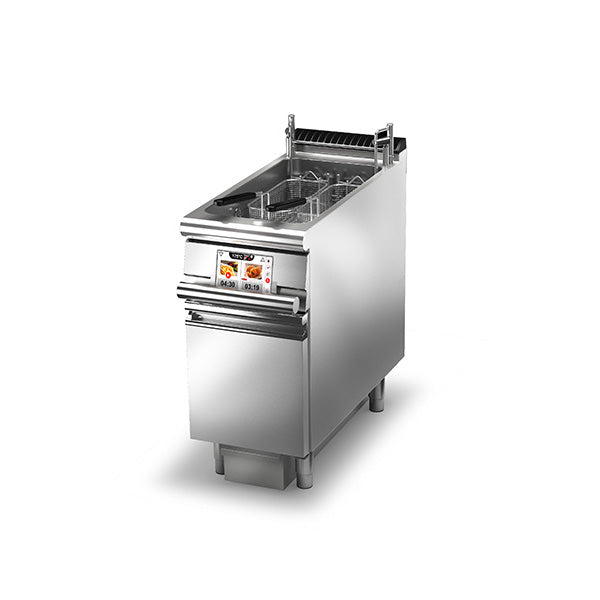

Baron Q90FREV/E422FA - Queen 9 EVO Electric Deep Fryer 22L with Filtration and Basket Lift

Baron Q90FREV/E422FA - Queen 9 EVO Electric Deep Fryer 22L with Filtration and Basket Lift

The Baron Q90FREV/E422FA is the top model in the EVO fryer range, adding two automatic basket lifts to built-in oil filtration. Each basket lift works on its own, so you can fry two foods with different cooking times at once, and the baskets lift clear to a height of 120 mm. With a 22 litre tank, 22 kW of power-modulated heating and a 7 inch touch screen, it suits high-volume kitchens that want consistent results with less hands-on work.

Key features:

• Pair of independently operated automatic basket lifts that raise baskets to 120 mm
• Built-in oil filtration: stainless steel filter with holes of about 1 mm plus a washable, heat-resistant technopolymer filter
• Automatic oil loading and draining with oil pump
• 22 litre pressed tank with large cold zone and foam overflow area
• 22 kW element with power-modulated heating, swings up more than 90° for cleaning
• 7 inch touch screen: 0 to 185°C with ±1°C accuracy, up to 30 programs, HACCP alarms, cleaning cycle, preheat and 100°C standby
• Software that recognises which programs can run together and warns about incompatible ones
• Oil-use control software (OLC), melt cycle up to 100°C, safety thermostat at 230°C
• Supplied with 2 baskets, a lid and a residue plate

Specifications:

• Model: Baron Q90FREV/E422FA
• Oil capacity: 22 litres, 1 tank
• Tank size: 340 x 420 x 325 mm
• Temperature range: 0–185°C, accuracy ±1°C
• Basket lift: 2 independent automatic lifts, 120 mm lift height
• Oil filtration: built in, two-stage mechanical filters
• Dimensions: 400 W x 900 D x 900 H mm
• Weight: 84 kg
• Power: 400V three phase (3N), 50–60 Hz, 22 kW
• Construction: AISI 304 stainless steel, 2 mm (20/10) worktop, IPX5 rated
• Origin: Italy
• Packed weight for delivery: 94.2 kg

Good to know before you buy:

• Power: 22 kW on three-phase power. It must be connected by a licensed electrician. We supply the equipment only.
• Ventilation: install it under a suitable exhaust canopy for oil vapour and heat.
• What's included: 2 baskets, a lid and a residue plate. Extra full (QCF22/23) and half (QCF22/23P) baskets are available.
• Access: 94.2 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking.

Compare similar models:

• Baron Q90FREV/E422F: same EVO with oil filtration, without basket lifts
• Baron Q90FREV/E422: EVO touch screen fryer without filtration or basket lifts
• Baron Q90FRI/E822: standard twin-tank fryer, 2 x 22 litres, 36 kW

Common questions:

Can the two baskets run different programs?
Yes. The two basket lifts work independently, so you can cook two foods with different frying times at the same time. The software also warns you if two programs aren't compatible.

Do I still need to filter the oil by hand?
No. It has a built-in two-stage filtration system with automatic oil draining and loading. The second filter is washable.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.

See all our commercial deep fryers.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
