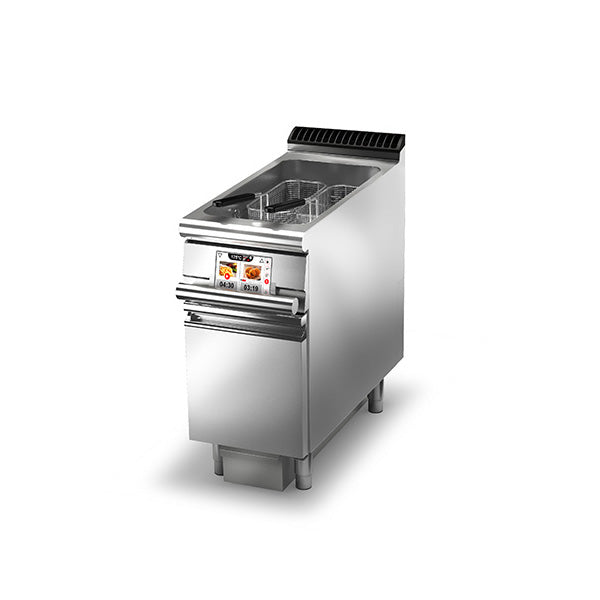

Baron Q90FREV/E422 - Queen 9 EVO Electric Deep Fryer 22L

Baron Q90FREV/E422 - Queen 9 EVO Electric Deep Fryer 22L

The Baron Q90FREV/E422 is the entry model in Baron's high-performance EVO fryer range: a 22 litre, 22 kW electric fryer controlled from a 7 inch touch screen. Power-modulated heating holds the oil within ±1°C of your set point, and up to 30 frying programs keep results consistent from cook to cook. It suits busy restaurants, hotels and quick-service kitchens; the E422F adds built-in oil filtration, and the E422FA adds filtration plus automatic basket lifts.

Key features:

• 22 litre pressed stainless steel tank with rounded internal corners, a large cold zone and a foam overflow area
• 22 kW stainless steel element with power-modulated heating that varies power by time and temperature
• 7 inch high-resolution touch screen: 0 to 185°C with ±1°C accuracy, HACCP alarms, tank cleaning cycle, preheat and 100°C standby
• Up to 30 frying programs with pictures, which can be shared between fryers by USB stick
• Melt cycle up to 100°C for solid fats
• Software that flags programs that can't run at the same time, plus oil-use monitoring (OLC)
• Heating element swings up more than 90° so the tank is easy to clean
• Safety thermostat at 230°C and a wide front recess to catch oil and foam overflow
• Supplied with 2 baskets, a lid and a residue plate

Specifications:

• Model: Baron Q90FREV/E422
• Oil capacity: 22 litres, 1 tank
• Tank size: 340 x 420 x 325 mm
• Temperature range: 0–185°C, accuracy ±1°C
• Dimensions: 400 W x 900 D x 900 H mm
• Weight: 60 kg
• Power: 400V three phase (3N), 50–60 Hz, 22 kW
• Construction: AISI 304 stainless steel, 2 mm (20/10) worktop, IPX5 rated
• Origin: Italy
• Packed weight for delivery: 70 kg

Good to know before you buy:

• Power: 22 kW on three-phase power. It must be connected by a licensed electrician. We supply the equipment only.
• Ventilation: install it under a suitable exhaust canopy for oil vapour and heat.
• What's included: 2 baskets, a lid and a residue plate. Extra full (QCF22/23) and half (QCF22/23P) baskets are available.
• Access: 70 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking.

Compare similar models:

• Baron Q90FREV/E422F: same EVO fryer with built-in oil filtration
• Baron Q90FREV/E422FA: EVO with oil filtration and automatic basket lifts
• Baron Q90FRI/E422: standard 22 litre fryer with dial thermostat, 18 kW
• Baron Q90FRI/G423: Queen 9 gas fryer, 23 litres

Common questions:

What makes the EVO different from the standard Q90FRI/E422?
The EVO adds a 7 inch touch screen with up to 30 programs, ±1°C electronic control, power-modulated heating and 22 kW instead of 18 kW. The standard model uses a thermostat dial up to 190°C.

Can I copy programs to another fryer?
Yes. Frying programs can be loaded by USB stick, so several EVO fryers can share the same settings.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.

See all our commercial deep fryers.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
