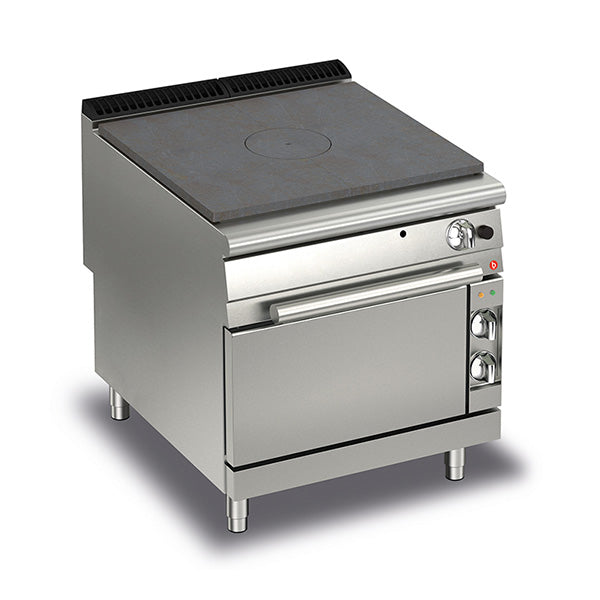

Baron Q90TPF/GE800 - Queen 9 Gas Target Top Range with Electric Oven 800mm

Baron Q90TPF/GE800 - Queen 9 Gas Target Top Range with Electric Oven 800mm

The Baron Q90TPF/GE800 combines a gas target top with an electric oven in one 800mm, 900mm-deep Queen 9 unit. The 50.4 MJ/h central burner heats the brushed cast iron plate to about 500°C in the centre, cooler at the edges, while the oven uses top and bottom elements on a 6 kW three-phase supply, adjustable from 100 to 300°C. It suits kitchens that want solid-top cooking with an electric oven; the Q90TPF/G800 is the all-gas version.

Key features:

• Brushed cast iron target plate with a removable central disc
• High-power central gas burner, 50.4 MJ/h, with piezo ignition
• Heat zones from about 500°C at the centre, decreasing towards the perimeter
• Safety valve with thermocouple and progressive power adjustment
• Electric oven, 530 x 700 x 300 mm inside, with elements above and below the chamber
• Oven thermostat from 100 to 300°C, "power on" and "set temperature reached" lights
• IPX5 twin-piece knobs, 2 mm AISI 304 stainless steel worktop
• Gas Type option: Natural Gas or LPG, both the same price

Specifications:

• Model: Baron Q90TPF/GE800
• Top: cast iron gas target top (solid top), 50.4 MJ/h
• Oven: electric, internal size 530 x 700 x 300 mm, 100–300°C
• Electrical: 400V three phase (3N), 50–60 Hz, 6 kW
• Gas type: Natural Gas or LPG (choose when ordering)
• Gas connection: 3/4 inch
• Dimensions: 800 W x 900 D x 900 H mm
• Weight: 196.6 kg
• Origin: Italy
• Packed weight for delivery: 206.6 kg

Good to know before you buy:

• Gas type: choose Natural Gas or LPG from the Gas Type option when you order. Both are the same price.
• Installation: the gas must be connected by a licensed gas fitter, under a suitable exhaust canopy, and the three-phase oven supply by a licensed electrician. We supply the equipment only.
• Power: the oven needs a 400V three-phase supply (6 kW), not a standard power point.
• Access: 206.6 kg packed. Delivery is by tailgate truck to the front of your premises and doesn't include bringing it inside, up stairs or unpacking, so plan for lifting equipment or enough people.

Compare similar models:

• Baron Q90TPF/G800: same target top with a gas oven, 80.4 MJ/h
• Baron Q90TPF/EE800: electric target top and electric oven
• Baron Q90PCF/GE8005: 4 open gas burners on an electric oven
• Baron Q70TPF/GE800: Queen 7 version, 700mm deep, 43 MJ/h

Common questions:

Do I need gas and power?
Yes. The target top runs on gas (Natural Gas or LPG) and the oven needs a three-phase electrical supply.

Is a splashback included?
No. An 800mm rear splashback, 150mm high (FC8), is an optional extra. Ask us for a price.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter and electrician in your area.

See all our commercial stoves.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
