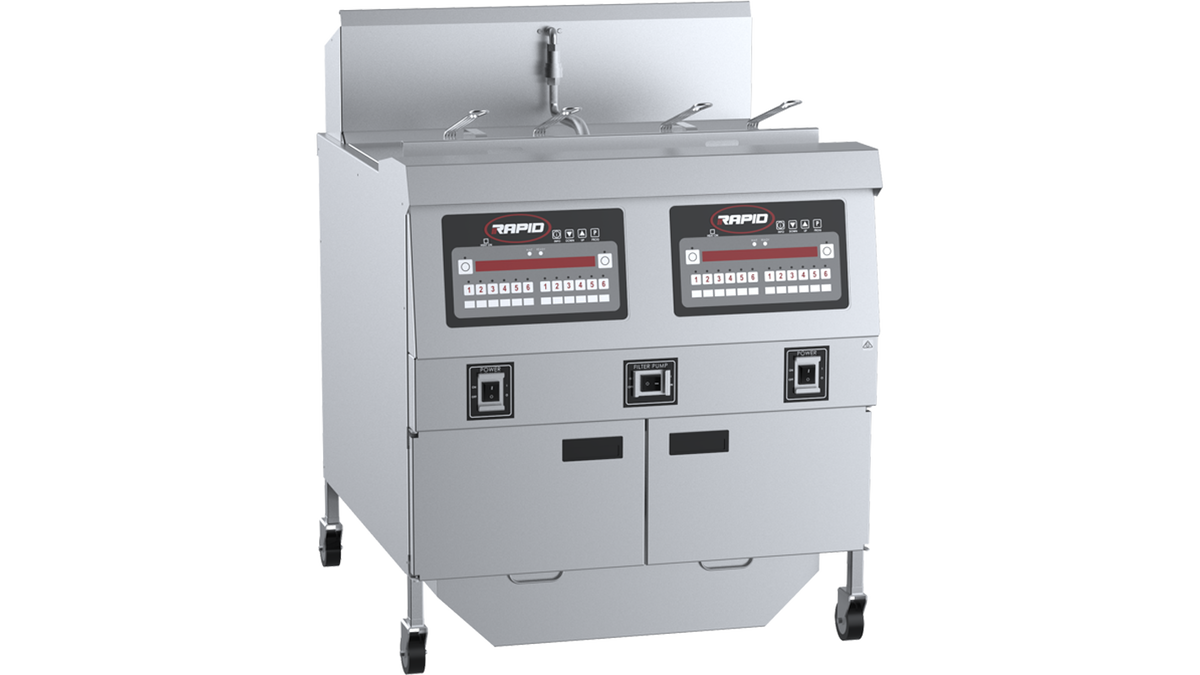

B+S Rapid RF-2E - 860mm Twin Pan Electric Fryer 2 x 40L 27kW

B+S Rapid RF-2E - 860mm Twin Pan Electric Fryer 2 x 40L 27kW

The Rapid RF-2E is a two pan, four basket electric fryer with inbuilt oil filtration, for busy fast food outlets and takeaways that fry in volume or want to keep products in separate oil. Each pan holds 40 L and has its own 13.5 kW rating. It is 860 mm wide, sitting between the single pan RF-1E and the three pan RF-3E, and adds a removable refill spout and oil outlet hose over the RF-1E.

Key features:

• Inbuilt oil filtration system with removable refill spout
• 40 L oil capacity per pan, in stainless steel pans 2 mm thick
• Pan size 340 W x 410 D x 385 H mm, with 280 mm from base to the max oil level mark
• Easy to use programmable display controller, 90°C to 190°C
• Rated at 40-45 kg of 10 mm frozen chips per hour
• Built-in thermal insulation layer that saves energy and improves efficiency
• Over-temperature safety cut-out switch
• Removable oil collection tank and oil outlet hose provided
• Lockable front castors, and 4 baskets provided, each 335 L x 165 W x 150 H mm

Specifications:

• Model: RF-2E
• Dimensions: 860 W x 900 D x 1140 H mm
• Electrical: 13.5 + 13.5 kW (27 kW total), 400 V, 3-phase (3P+N+E), 50/60 Hz, 20 A
• Connection: hard wired or plug and lead
• Weight: 185 kg
• Pans and baskets: 2 pans, 4 baskets
• Standards: AS/NZS CISPR 14.1, EN IEC 55014-1:2021

Good to know before you buy:

• Installation: must be connected by a licensed electrician, to AS/NZS 3000. It needs a 3-phase supply. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for an 860 x 900 x 1140 mm unit, about 185 kg.

Compare similar models:

• RF-1E: one pan and two baskets, 450 mm wide, 13.5 kW.
• RF-3E: a third pan and two more baskets, 1270 mm wide, 40.5 kW.
• RF-1 gas: a single 40 L gas pan at 135 MJ/h, 625 mm wide, with a lockable oil drain valve.

Common questions:

How much oil do I need to fill it?
80 L in total, at 40 L a pan, filled to the max oil level mark 280 mm above the base of each pan.

How much power should I allow?
Allow for the full 27 kW at 400 V, 3-phase, so both pans can run together. The 20 A figure is the same as on the one pan RF-1E, so have your electrician ask us to confirm it before sizing the supply.

Is it better than two RF-1E fryers side by side?
Two RF-1E units take 900 mm, against 860 mm here. You get the same oil capacity and baskets in one body, plus the refill spout and outlet hose. Two separate units can be moved or replaced one at a time.

See all our commercial deep fryers.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
