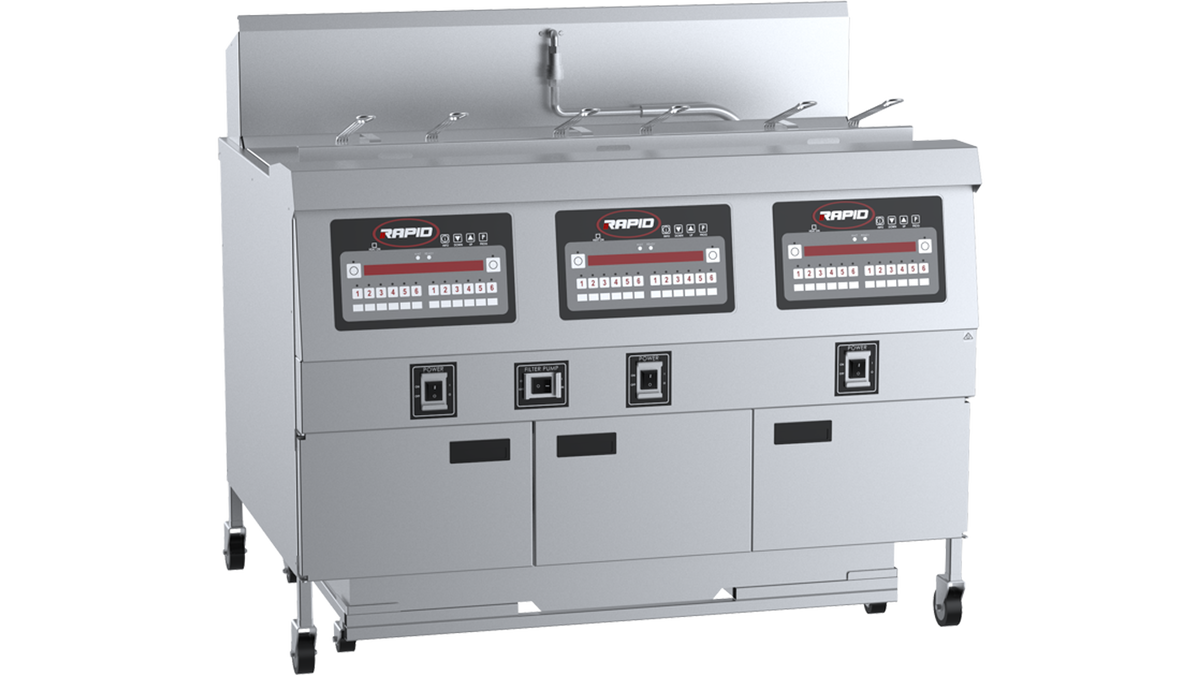

B+S Rapid RF-3E - 1270mm Three Pan Electric Fryer 3 x 40L 40.5kW

B+S Rapid RF-3E - 1270mm Three Pan Electric Fryer 3 x 40L 40.5kW

The Rapid RF-3E is the largest Rapid electric fryer, with three pans, six baskets and inbuilt oil filtration, for high-volume kitchens that fry all day. Each pan holds 40 L and is rated at 13.5 kW, for 40.5 kW in total on a 3-phase supply. It takes 1270 mm of line, against 450 mm for the RF-1E and 860 mm for the RF-2E, at the same 900 mm depth and 1140 mm height.

Key features:

• Inbuilt oil filtration system with removable refill spout
• 40 L oil capacity per pan, in stainless steel pans 2 mm thick
• Pan size 340 W x 410 D x 385 H mm, with 280 mm from base to the max oil level mark
• Easy to use programmable display controller, 90°C to 190°C
• Rated at 40-45 kg of 10 mm frozen chips per hour
• Built-in thermal insulation layer that saves energy and improves efficiency
• Over-temperature safety cut-out switch
• Removable oil collection tank and oil outlet hose provided
• Lockable front castors, and 6 baskets provided, each 335 L x 165 W x 150 H mm

Specifications:

• Model: RF-3E
• Dimensions: 1270 W x 900 D x 1140 H mm
• Electrical: 13.5 + 13.5 + 13.5 kW (40.5 kW total), 400 V, 3-phase (3P+N+E), 50/60 Hz, 20 A per pan
• Connection: hard wired or plug and lead
• Weight: 237 kg
• Pans and baskets: 3 pans, 6 baskets
• Standards: AS/NZS CISPR 14.1, EN IEC 55014-1:2021

Good to know before you buy:

• Installation: must be connected by a licensed electrician, to AS/NZS 3000. It needs a 3-phase supply. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 1270 x 900 x 1140 mm unit, about 237 kg.

Compare similar models:

• RF-2E: two pans and four baskets, 860 mm wide, 27 kW.
• RF-1E: one pan and two baskets, 450 mm wide, 13.5 kW.
• RF-1 gas: a single 40 L gas pan at 135 MJ/h, for sites that run on gas.

Common questions:

How much oil do I need to fill it?
120 L in total, at 40 L a pan, filled to the max oil level mark 280 mm above the base of each pan.

Why buy this instead of three RF-1E fryers?
Three RF-1E units take 1350 mm side by side, against 1270 mm here, and this model comes with a removable refill spout and an oil outlet hose. Three separate fryers can be placed apart or swapped one at a time, so go by your layout.

Does my site have enough power?
Each pan is rated 13.5 kW at 400 V and 20 A. Ask your electrician to size the supply from the 40.5 kW total before you order.

See all our commercial deep fryers.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
