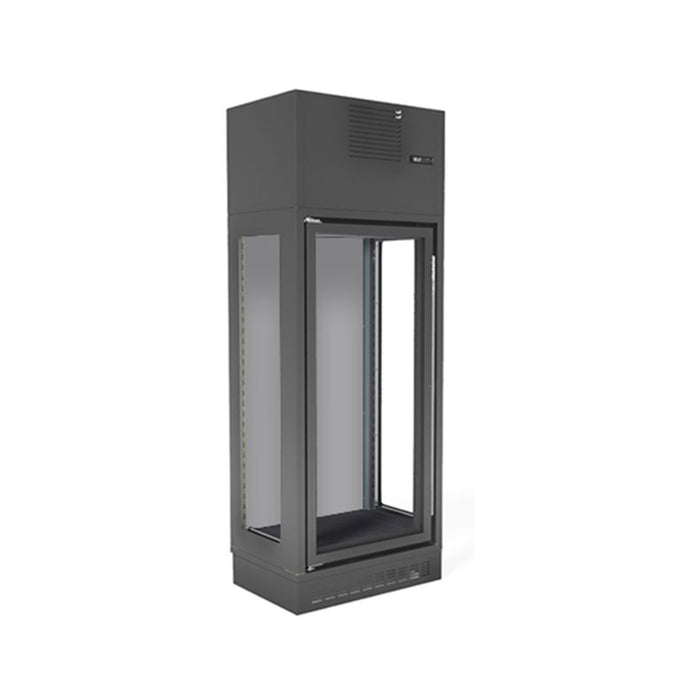

Fagor FMD-2301A - Single Door Meat Dry Aging Cabinet

Fagor FMD-2301A - Single Door Meat Dry Aging Cabinet

The Fagor FMD-2301A is a single-door dry ageing cabinet for butchers, steakhouses, delis and restaurants that want to age meat, salami or cheese while showing it off to customers. It holds anywhere from 0°C to +20°C in 0.1°C steps, with humidity adjustable from 60% to 90%, and heated double glazing keeps the view clear. At 862mm wide and 2300mm tall with 605 litres inside, it is the single-door version of the 1697mm wide FMD-2302A.

Key features:

• Designed to age, display and sell meat from the one cabinet
• Temperature adjustable from 0°C to +20°C in 0.1°C steps
• Humidity adjustable from 60% to 90%, set from a single digital thermostat
• Fan-forced refrigeration for an even temperature right through the cabinet
• Ultraviolet light for air sterilisation
• Double-layer glass side and centre walls with an air gap; glass and door frames are heated to stop condensation
• LED lighting around the whole cabinet, adjustable by remote control
• Defrost water collects in a tray and evaporates automatically, so no drain is needed
• Fully stainless steel construction with a swing door and a decorative plinth

Specifications:

• Model: Fagor FMD-2301A
• Doors: 1 hinged swing door
• Gross internal volume: 605 litres
• Dimensions: 862 W x 632 D x 2300 H mm
• Weight: 272 kg
• Temperature range: 0°C to +20°C
• Humidity range: 60% to 90%
• Climate class: V (FED: room temperature up to 40°C at 40% relative humidity)
• Refrigerant: R455a
• Power: 1.74 kW, 240V single phase, 10 A
• Body: stainless steel
• Packed size for delivery: 1005 x 800 x 2685 mm, 284 kg

Good to know before you buy:

• Access: the cabinet is 2300mm tall and FED lists the packed height as 2685mm, at 284 kg. It ships in two sections: the cabinet body and a removable top section that holds the complete refrigeration unit. Check doorways, ceiling heights and your route inside. Delivery is by tailgate truck to the front of your premises. We supply the equipment only.
• Power: it runs on 240V single-phase power, rated at 10 A.
• Drain: no drain connection is needed, as defrost water evaporates automatically.
• What's included: the decorative plinth is included. Shelves and hooks are ordered separately and come unassembled.

Compare similar models:

• Fagor FMD-2302A: double-door version, 1697mm wide, 1230 litres
• Thermaster MA400: smaller 400 litre black stainless steel dry ageing cabinet
• Polaris LF82V: meat dry ageing cabinet with a glass door, 607 litres
• Everlasting DAE0701: Meatico single-door dry age cabinet, 150 kg load

Common questions:

What colour and layout is it?
Fagor makes these cabinets in black or grey (other colours on request), in wall or central configurations. FED's spec sheet shows a black, wall-type unit with the door hinged on the left. Ask us to confirm the finish and layout before you order.

Does it come with shelves or hooks?
No. Shelves and hooks are ordered separately. Fagor's accessories include perforated meat shelves, bars, hooks and pink salt. Ask us for prices.

Does it need a drain or water connection?
No. Defrost water goes into a tray and evaporates automatically. It just needs a 240V, 10 A power supply.

See all our upright fridges.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
