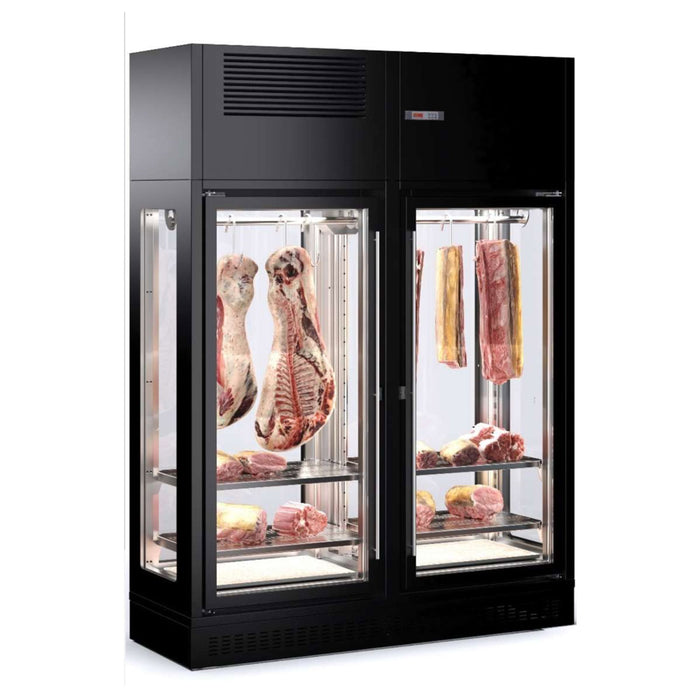

Fagor FMD-2302A - Double Door Meat Dry Aging Cabinet

Fagor FMD-2302A - Double Door Meat Dry Aging Cabinet

For butchers, steakhouses and gourmet retailers that want a real showpiece, the Fagor FMD-2302A is a double-door dry ageing cabinet with 1230 litres of gross internal volume. It ages and displays meat, salami or cheese at 0°C to +20°C (set in 0.1°C steps) with humidity from 60% to 90%, behind heated double-glazed walls. It is twice the width of the single-door FMD-2301A at 1697mm, with doors hinged left and right and two refrigeration systems.

Key features:

• Ages, displays and helps sell dry-aged product in one cabinet
• Temperature control from 0°C to +20°C in 0.1°C increments
• Humidity control from 60% to 90% from one digital thermostat
• Ventilated refrigeration keeps the temperature even throughout the cabinet
• Ultraviolet light to sterilise the air inside
• Double-layer glass side and centre walls with an air chamber; heated glass and door frames prevent condensation
• Perimeter LED lighting, adjustable by remote control
• Automatic defrost water evaporation, so no drain is required
• Fully stainless steel, with two swing doors and a decorative plinth

Specifications:

• Model: Fagor FMD-2302A
• Doors: 2 hinged swing doors (left and right)
• Gross internal volume: 1230 litres
• Dimensions: 1697 W x 632 D x 2300 H mm
• Weight: 549 kg
• Temperature range: 0°C to +20°C
• Humidity range: 60% to 90%
• Climate class: V (FED: room temperature up to 40°C at 40% relative humidity)
• Refrigerant: R455a (two refrigeration systems)
• Power: 3.37 kW, 240V single phase, 15 A
• Body: stainless steel
• Packed size for delivery: 1840 x 800 x 2685 mm, 570 kg

Good to know before you buy:

• Access: this is a big, heavy cabinet: 549 kg, 2300mm tall, with a packed size of 1840 x 800 x 2685 mm. It ships in two sections (the body and a removable top section with the complete refrigeration unit). Plan the route in, including doorways and ceiling heights. Delivery is by tailgate truck to the front of your premises. We supply the equipment only.
• Power: it is rated at 15 A on 240V single phase, so it needs a 15 A outlet rather than a standard 10 A power point. Have a licensed electrician check your supply.
• Drain: no drain is needed; defrost water evaporates automatically.
• What's included: the decorative plinth comes standard. Shelves and hooks are ordered separately and are supplied unassembled.

Compare similar models:

• Fagor FMD-2301A: single-door version, 862mm wide, 605 litres
• Everlasting DAE1501: Meatico dry age cabinet with 2 glass doors, 300 kg load
• Everlasting DAE1502: Meatico Panorama 2 door cabinet with glass front and back
• Polaris LF82V: single glass door dry ageing cabinet, 607 litres

Common questions:

Can I choose the colour?
Fagor offers black and grey finishes, with other colours on request, and wall or central configurations. FED's spec sheet shows a black, wall-type cabinet. Ask us to confirm what's available before ordering.

Are shelves and hooks included?
No. They are ordered separately and supplied unassembled. Perforated meat shelves, bars, hooks and pink salt are available as accessories. Ask us for a price.

Will it cope with a warm shop?
FED rates it climate class V, which it describes as room temperatures up to 40°C at 40% relative humidity.

See all our upright fridges.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
