FED-X XCB-36 - Two Drawer Refrigerated Chef Base 924mm 184L
FED-X XCB-36 - Two Drawer Refrigerated Chef Base 924mm 184L
SKU: XCB-36
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 924 W x 816 D x 658 H mm. Check doorways and access on the way in.
- Weight: 85 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 360W, 240V, 10 A plug and lead (3m cord).
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
FED-X XCB-36 - Two Drawer Refrigerated Chef Base 924mm 184L

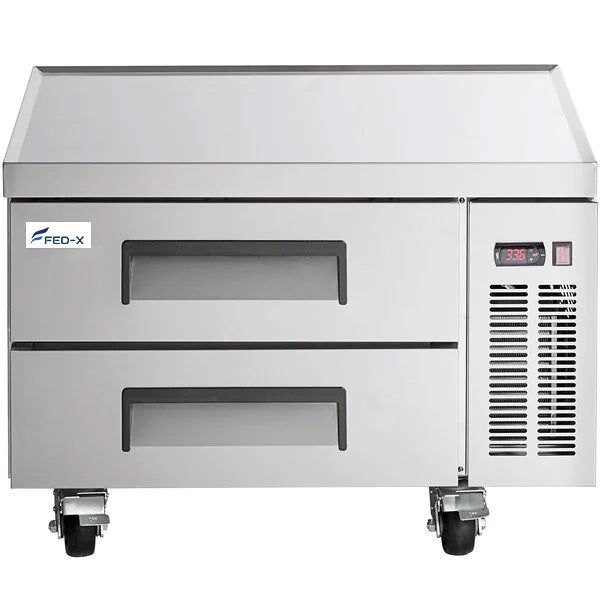

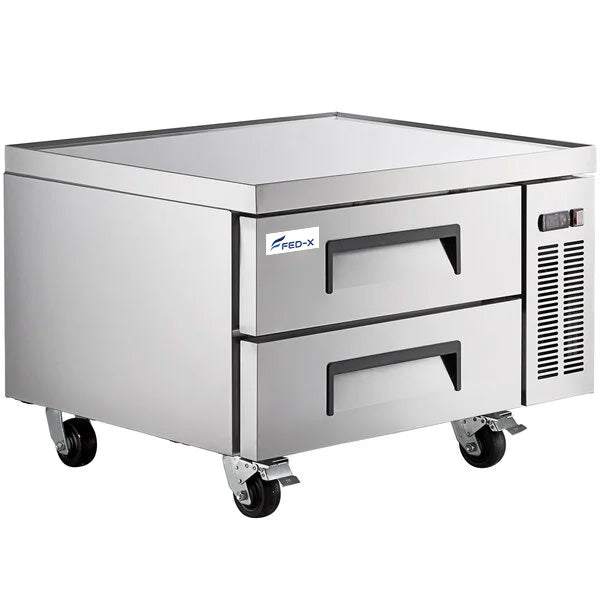

The FED-X XCB-36 is the smallest chef base in the FED-X range: a low, 658mm-high refrigerated drawer unit that sits under countertop cooking equipment so chilled ingredients are right at the cook line. FED designed the XCB range to carry its Gasmax countertop equipment. Two 530mm-deep drawers take GN pans up to 100mm deep, and fan-forced cooling holds -1°C to +5°C. At 924mm wide it is the compact choice, while the XCB-48, XCB-60 and XCB-72 cover longer cook lines.
Key features:

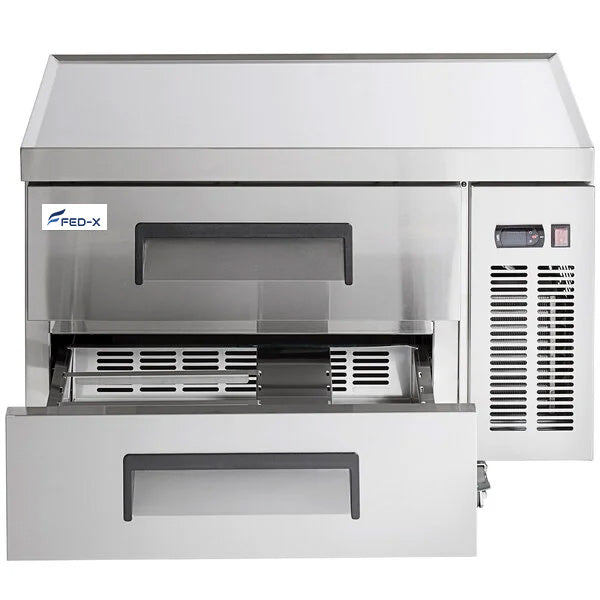

- 2 refrigerated drawers, 530mm deep, for 1/3 and 1/6 GN pans up to 100mm deep (pans sold separately)
- Austrian Fulterer runners for smooth, durable drawer action
- Raised-edge top, designed to carry countertop cooking equipment
- Removable magnetic drawer gaskets for easy cleaning
- Fan-forced evaporator cooling with rapid recovery
- Automatic air defrost with self-evaporating water tray
- Tropicalised for Australian conditions, 60mm CFC-free insulation
- Heavy-duty castors with front-wheel brakes
- 3 star GEMS energy rating
Specifications:
- Model: FED-X XCB-36
- Capacity: 184 litres gross, 162 litres net
- Dimensions: 924 W x 816 D x 658 H mm
- Weight: 85 kg
- Drawers: 2, each 530mm deep, GN pans up to 100mm deep
- Temperature range: -1°C to +5°C
- Maximum room temperature: 32°C at 65% relative humidity
- Refrigerant: R290
- Power: 360W, 240V, 10 A plug and lead (3m cord)
- Energy use: 3.241 kWh per 24 hours, 3 star GEMS rating
- Construction: stainless steel inside and out
- Packed size for delivery: 994 x 886 x 725 mm
Good to know before you buy:
- GN pans needed: FED says GN pans are required to use the drawers, and they are sold separately.
- Clearances: FED specifies 50mm of space at the top and sides, with no rear clearance needed.
- Room temperature: rated to 32°C, so keep the vents clear and don't let hot appliance exhaust blow straight onto it.
- Power: plugs into a standard 10 A power point.
Compare similar models:
- FED-X XCB-48: 1228mm wide, two drawers, 272 litres
- FED-X XCB-60: 1524mm wide, two drawers, 360 litres
- FED-X XCB-72: 1838mm wide, four drawers, 450 litres
- Atosa MGF8450: two-drawer chef base supplied with stainless steel GN pans
Common questions:
Are GN pans included?
No. The drawers are designed around 1/3 and 1/6 GN pans up to 100mm deep, and FED notes pans are required to use the unit. Ask us about pans to suit.
Can I put a griddle or char grill on top?
That is what it is designed for. FED built the XCB range to carry its Gasmax countertop cooking equipment. Check the size and weight of your appliance against the top before you order.
Do you install it?
It plugs into a 10 A power point. Any gas appliance you put on top must be connected by a licensed gas fitter. We supply the equipment only.
See all our chef drawers.
Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
