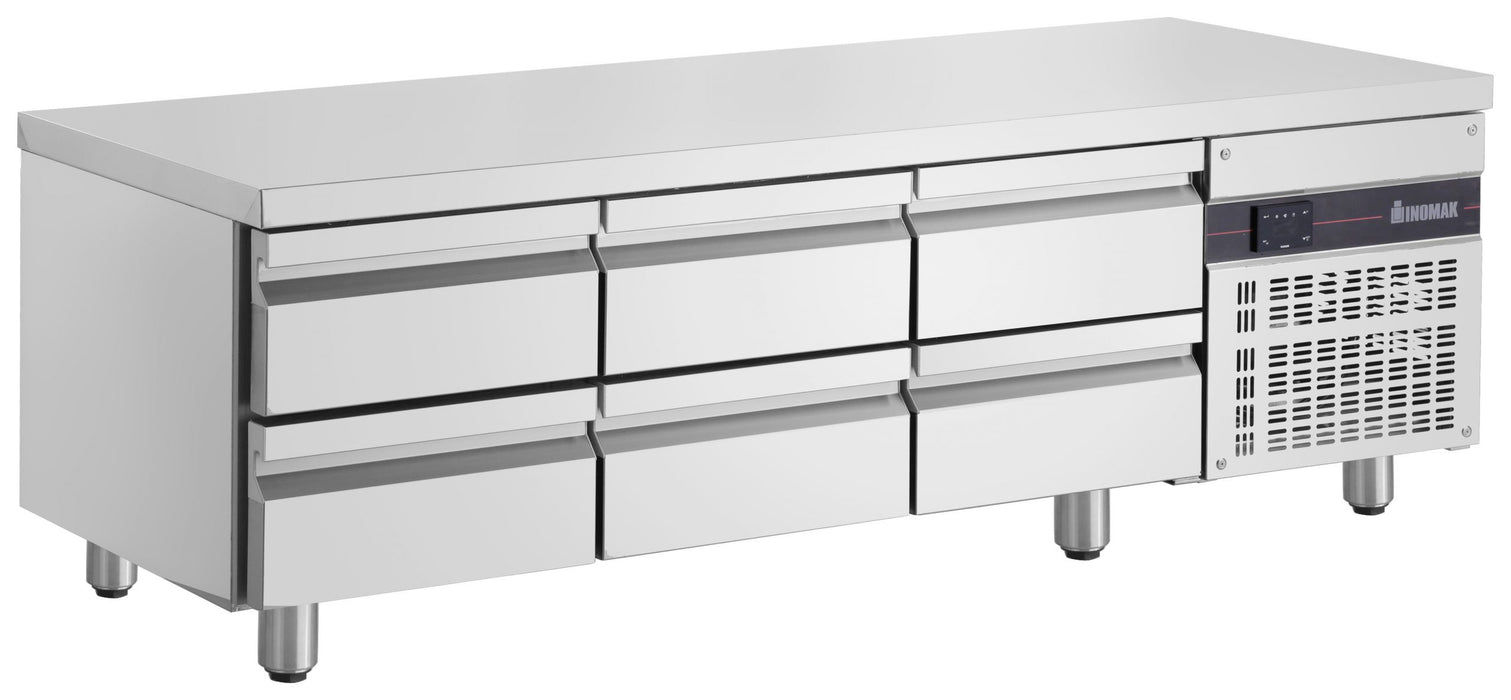

Inomak UBI71790LB - Low Boy Chef Base Fridge, 6 Drawers, 1790mm
Inomak UBI71790LB - Low Boy Chef Base Fridge, 6 Drawers, 1790mm
SKU: UBI71790LB
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour under ICE's Double Gold Star warranty. ICE is Inomak's Australian distributor. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 1790 W x 700 D x 660 H mm. Check doorways and access on the way in.
- Weight: 164 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 240V, 0.34 kW.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
Inomak UBI71790LB - Low Boy Chef Base Fridge, 6 Drawers, 1790mm
The Inomak UBI71790LB is a low boy chef base: a 660mm high refrigerated drawer unit designed to sit under countertop cooking equipment, so a grill or griddle cook can reach chilled ingredients without leaving the station. It has 6 drawers on telescopic guides, takes 100mm deep 1/1 GN pans, and holds 245 litres at 0°C to +10°C in kitchens up to 43°C. It is made in Greece; the 2240mm UBI72240LB adds two more drawers.
Key features:
- Low 660mm height, designed for cooking equipment to sit on top
- 6 refrigerated drawers, all on telescopic guides
- Drawers suit 100mm deep 1/1 GN pans
- 245 litre capacity, 0°C to +10°C
- Rated for kitchens up to 43°C
- Embedded controller and automatic defrost
- Anti-corrosion protection on the evaporator (electrostatic painted coils)
- Heavy-duty 304 stainless steel inside and out
- Supplied on castors
Specifications:
- Model: Inomak UBI71790LB
- Capacity: 245 litres
- Dimensions: 1790 W x 700 D x 660 H mm
- Weight: 164 kg
- Temperature range: 0°C to +10°C
- Maximum room temperature: 43°C
- Power: 240V, 0.34 kW
- Drawers: 6, for 100mm deep 1/1 GN pans
- Construction: 304 stainless steel
- Origin: Greece
- Packed size for delivery: 1800 W x 755 D x 660 H mm
Good to know before you buy:
- Access: it is packed at 1800 x 755 x 660mm and weighs 164 kg. Delivery is by tailgate truck to the front of your premises. Standard delivery doesn't include bringing it inside, up stairs or unpacking, so arrange help.
- Cooking equipment on top: follow the installation instructions of whatever appliance you place on it, including any clearance and ventilation it needs. Gas appliances must be connected by a licensed gas fitter. We supply the equipment only.
- Power: runs on 240V power, rated at 0.34 kW.
- Airflow: keep the front vents clear, especially with hot equipment above.
Compare similar models:
- Inomak UBI72240LB: 2240mm wide low boy with 8 drawers, 332 litres
- Inomak UBD4000: bench-height 1790mm fridge with 1 door and 4 drawers
- FED-X XCB-72: four drawer refrigerated chef base, 1838mm, 450 litres
Common questions:
What pans fit in the drawers?
The drawers are designed for 1/1 GN pans up to 100mm deep. Pans are not mentioned as included, so ask us if you need them.
Can I put a griddle or chargrill on top?
Yes, that is what the low height is designed for. Check the appliance maker's requirements for what it can sit on, and have gas appliances connected by a licensed gas fitter.
What temperature does it hold?
0°C to +10°C, set on the embedded controller.
See all our chef drawers.
Warranty: 2 years parts and labour under ICE's Double Gold Star warranty. ICE is Inomak's Australian distributor.
