Flexeserve NUE-FXZNA10S4SQ - Zone Heated Display, 4 Tier Floor Standing, Square, 975mm

Flexeserve NUE-FXZNA10S4SQ - Zone Heated Display, 4 Tier Floor Standing, Square, 975mm

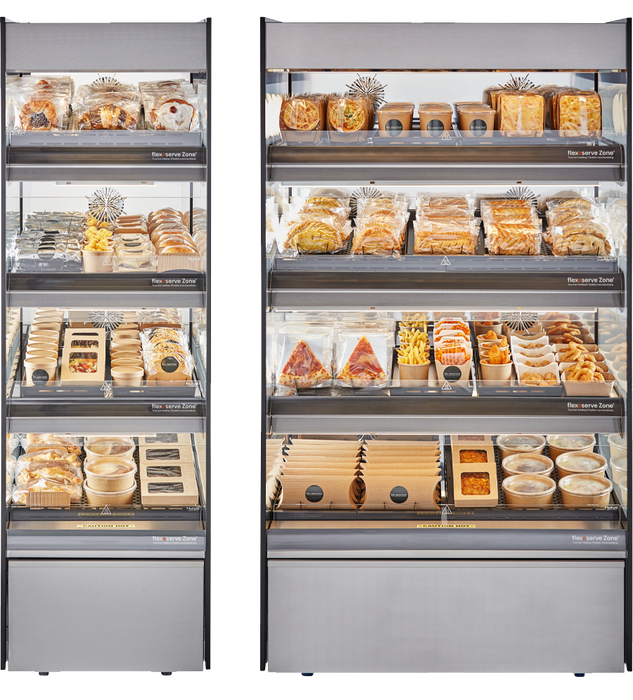

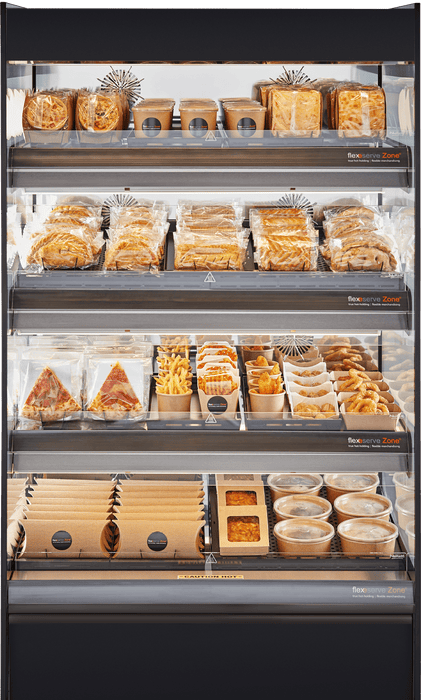

The NUE-FXZNA10S4SQ is the four-tier, 975mm square Zone display, and along with the three-tier square 975mm model it's the only Zone display offered in 415V three phase. Order it in single phase, rated at 25 amps and supplied with a 32 amp plug, or in three phase at 20 amps; both are 5528W. The cabinet is 975 x 855 x 1865mm and weighs 323 kg, giving four long shelves of hot food in one floor-standing unit for supermarkets and high-volume food-to-go sites.

Key features:

• Four 975mm-wide heated tiers, each its own temperature zone
• Power choice: single phase (32 amp plug supplied) or 415V three phase
• Square styling, 855mm deep
• Patented convection air technology for gentle heat
• Minimises condensation and helps cut waste
• Shelves switch off independently, and an air curtain reduces heat loss
• Easy to clean and manoeuvrable

Specifications:

• Model: Flexeserve NUE-FXZNA10S4SQ (single phase) or NUE-FXZNA10S4SQ3PH (three phase)
• Range: Flexeserve Zone, floor standing
• Heated tiers: 4, independently controlled
• Style: square
• Dimensions: 975 W x 855 D x 1865 H mm
• Weight: 323 kg
• Power: 5528W
• Single phase option: 230V, 25 amp rating, supplied with a 32 amp single phase plug
• Three phase option: 415V, 20 amp

Good to know before you buy:

• Pricing: This model is priced on application. Contact us for a quote.
• Power option: choose single phase if you'll install a 32 amp single phase outlet, or three phase if your site has 415V available. Either way, a licensed electrician must make the connection. We supply the equipment only.
• Access: 323 kg and 1865mm tall, so plan the route and the people or lifting gear needed. It's delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside.
• Accessories: a night blind, rear back panel kit and merchandising racks are among Flexeserve's options. Ask us.

Compare similar models:

• Flexeserve NUE-FXZNA10S4C: curved four tier, single phase only, 865mm deep
• Flexeserve NUE-FXZNA10S3SQ: square three tier, 1520mm high, single or three phase
• Flexeserve NUE-FXZNA10S5SQ: square five tier, 1970mm high, 32 amp single phase
• Flexeserve NUE-FXZNA60S4SQ: 556mm-wide square four tier on 15 amps

Common questions:

Single phase or three phase: which do I need?
Choose the one that matches your site's supply. The single phase version is rated at 25 amps and comes with a 32 amp plug; the three phase version runs at 415V and 20 amps. The cabinet is the same either way.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.

What sort of business is it built for?
Flexeserve designed the Zone range for supermarkets, petrol and convenience stores, cafes and food-to-go venues. A four-tier 975mm model suits sites selling a wide hot range in volume.

See all our hot food displays.

Warranty: 12 months, supported by Meris Food Equipment, the Australian distributor.
