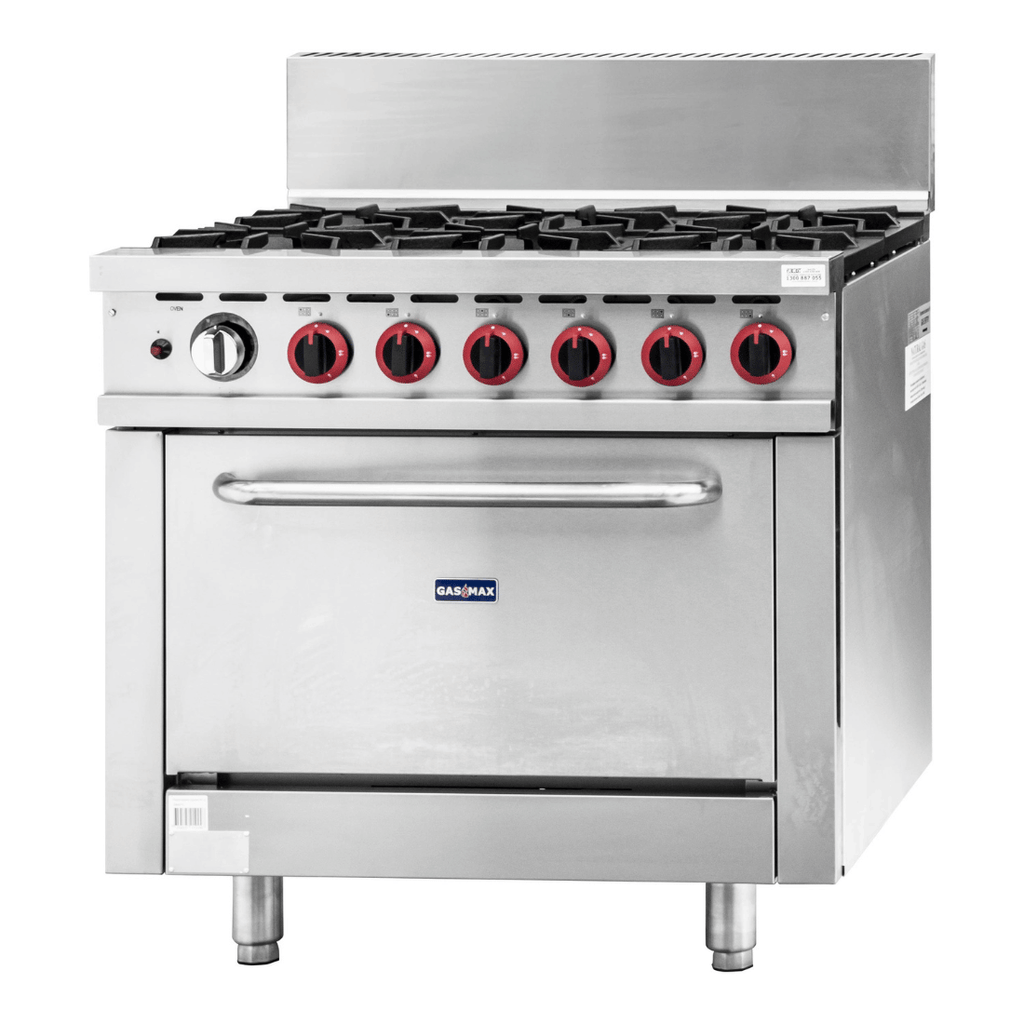

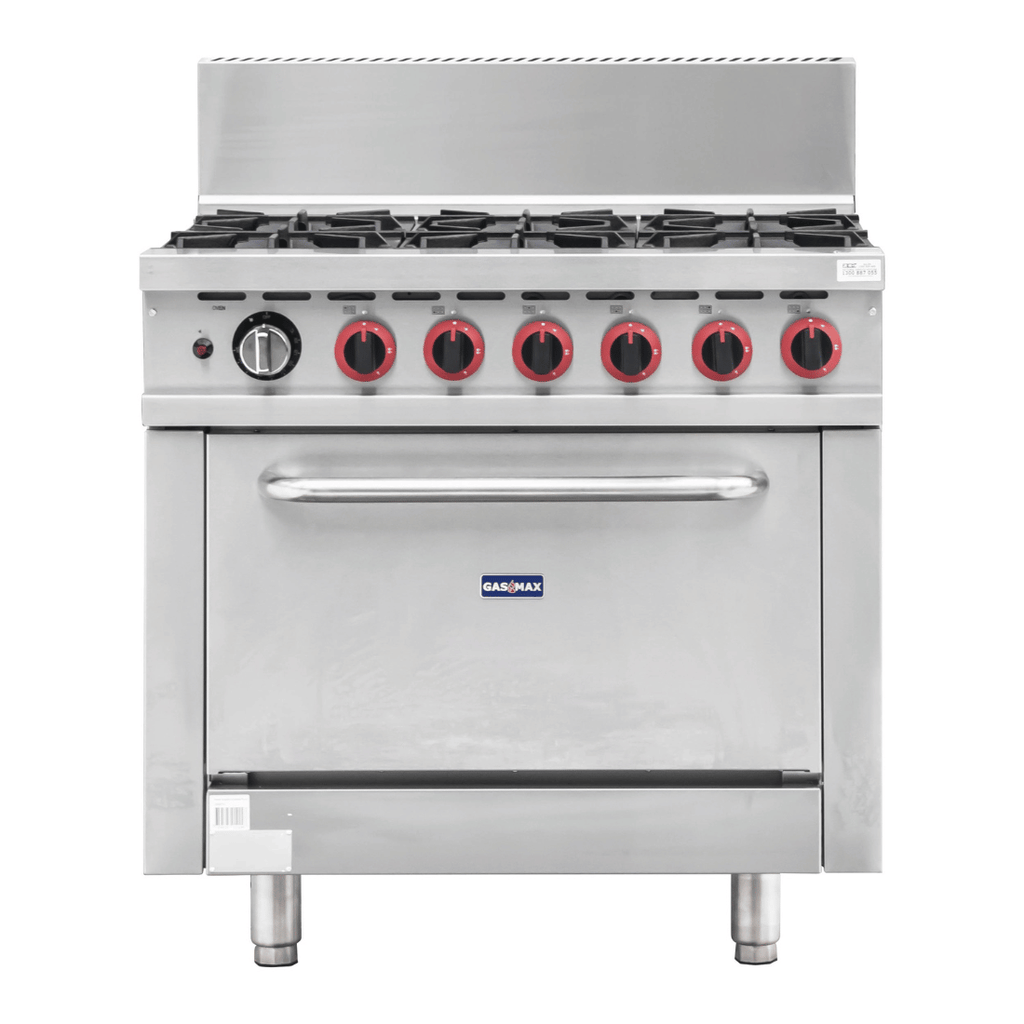

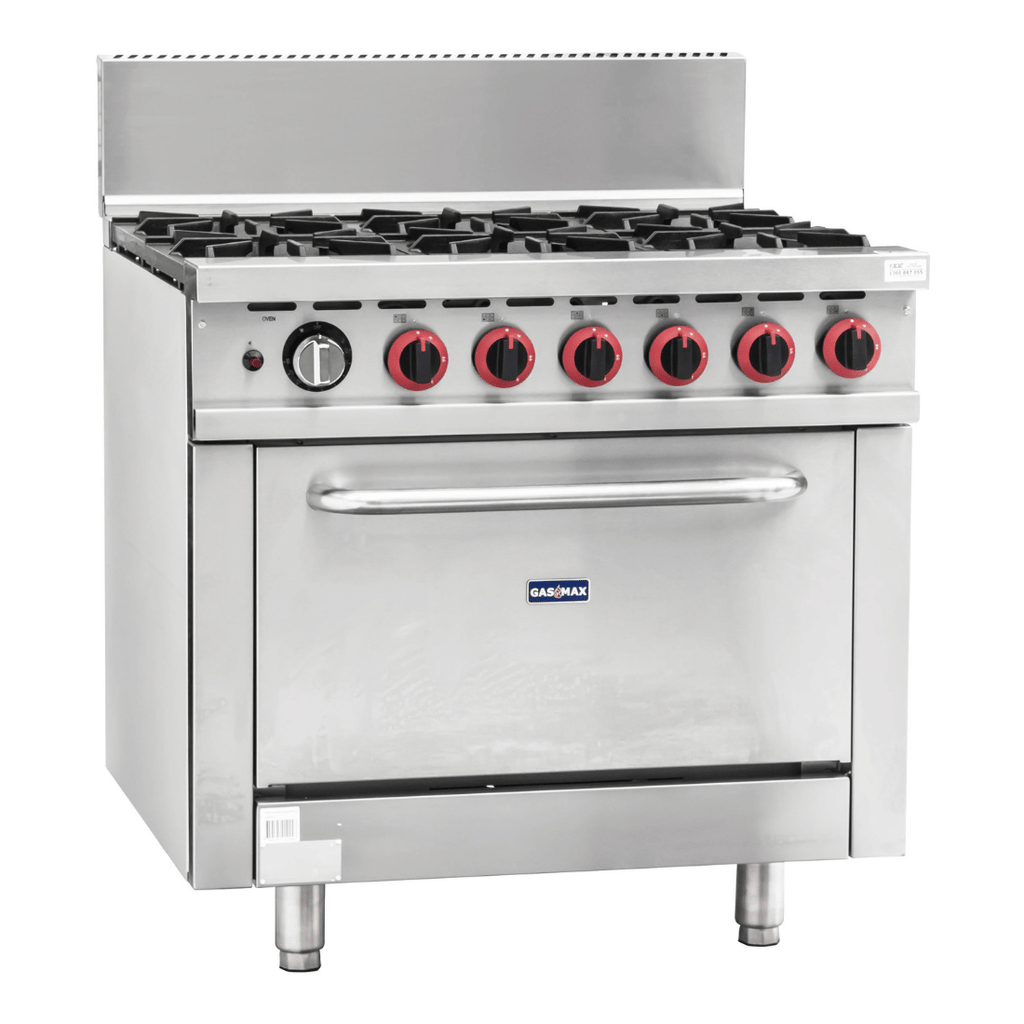

Gasmax GBS6TS - 6 Burner Gas Range with Oven and Flame Failure
Gasmax GBS6TS - 6 Burner Gas Range with Oven and Flame Failure
SKU: GBS6TS
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour, plus a further 2 years on parts when the unit is registered with FED within 14 days of invoice. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 914 W x 855 D x 1128 H mm. Check doorways and access on the way in.
- Weight: 167 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Gas: needs a licensed gas fitter to connect. Choose natural gas or LPG when you order, where offered.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
Gasmax GBS6TS - 6 Burner Gas Range with Oven and Flame Failure
Six open burners on top and a thermostat-controlled oven below make the Gasmax GBS6TS a workhorse for restaurants, hotels and catering kitchens that need plenty of stovetop space plus an oven in the same 914mm footprint. The cast iron burners are rated at 38 MJ each on natural gas, with flame failure control and a thermocouple safety valve on the oven. It offers two more burners than the 610mm GBS4TS.
Key features:
- 6 cast iron open burners, 38 MJ each on natural gas (42 MJ on LPG)

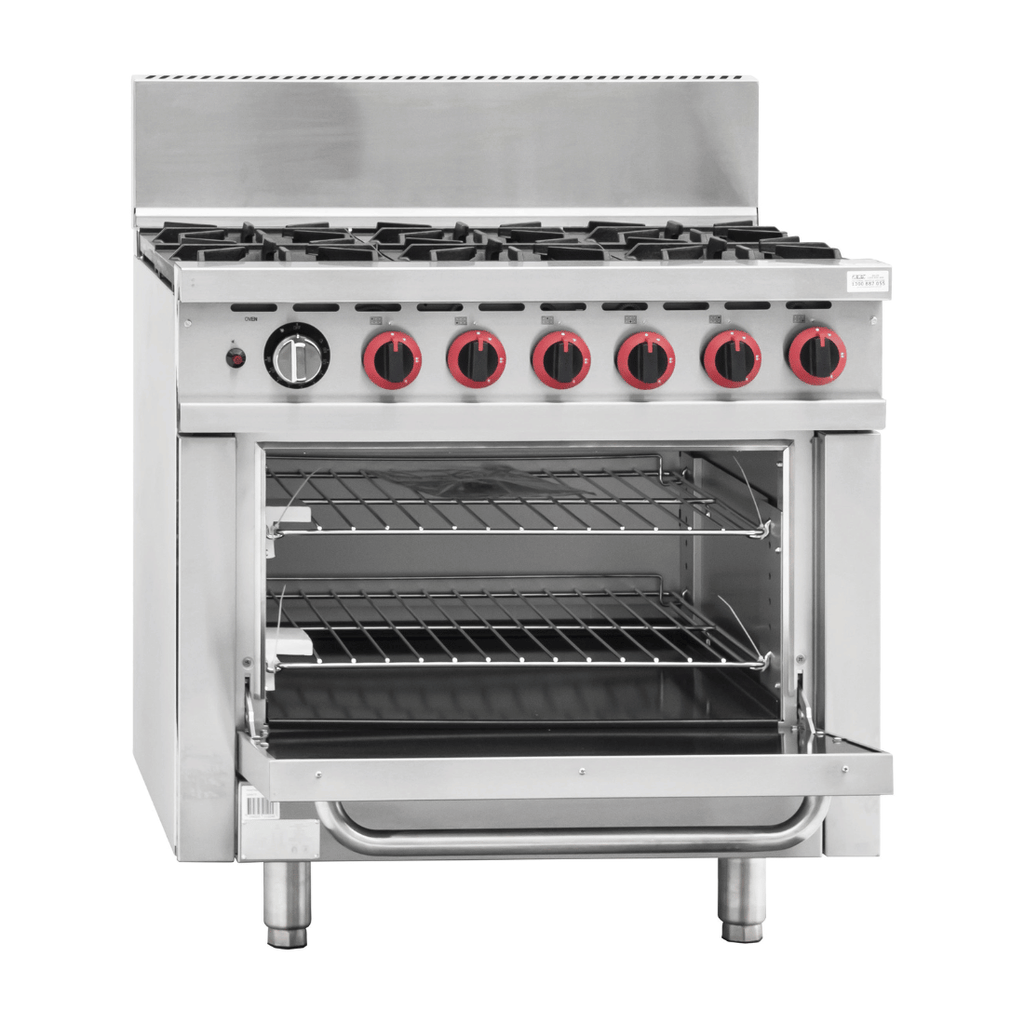

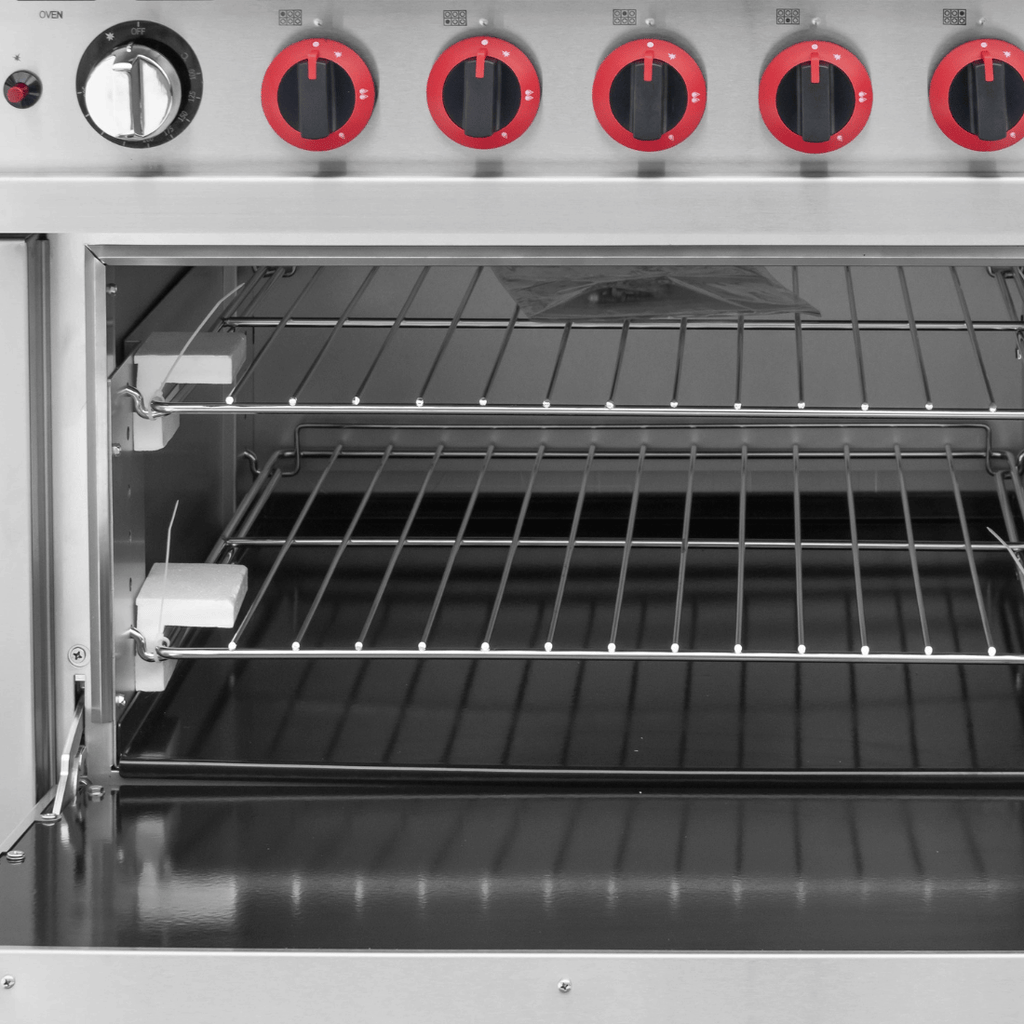

- Thermostat-controlled oven, 100°C to 300°C, with a U-shaped oven burner
- Flame failure control valves, plus a thermocouple safety valve on the oven

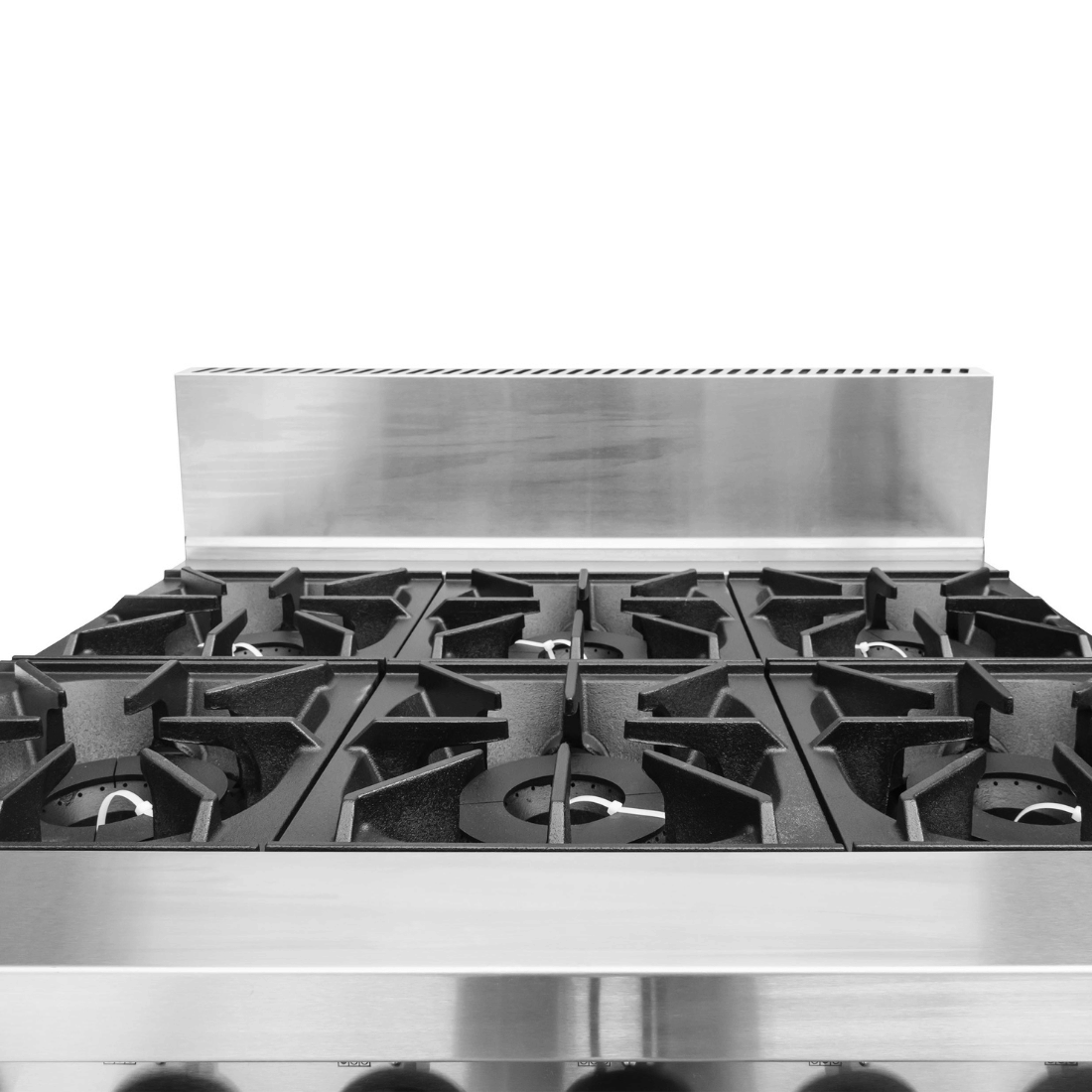

- 30 x 30 cm cast iron grates with anti-clogging pilot covers underneath
- Continuous pilot
- Pull-out crumb tray with an angled front handle
- Fully insulated stainless steel oven door
- Welded frame, adjustable heavy-duty legs and a kick plate at the bottom for easy access
- Burners dismantle easily for cleaning
Specifications:
- Model: Gasmax GBS6TS (natural gas), GBS6TSLPG (LPG)
- Burners: 6 open burners plus oven (7 control knobs)
- Oven temperature: 100°C to 300°C
- Gas consumption: 258 MJ/h natural gas, 288 MJ/h LPG
- Gas connection: 3/4 inch, rear
- Dimensions: 914 W x 855 D x 1128 H mm
- Weight: 167 kg
- Gas type: natural gas or LPG (choose when ordering)
- Construction: stainless steel
Good to know before you buy:
- Gas type: choose Natural Gas or LPG when you order, to suit your premises.
- Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
- Gas supply: at 258 MJ/h (natural gas) or 288 MJ/h (LPG) this is a very large load. Ask your gas fitter to confirm your meter, regulator and pipework can supply it alongside your other equipment.
- Access: it weighs 167 kg and is 914mm wide. Delivery is by tailgate truck to the front of your premises, so check doorways and arrange lifting equipment or several people.
Compare similar models:
- Gasmax GBS4TS: 610mm range with 4 burners and an oven
- Gasmax RB-6E: 6 burner benchtop cooktop, no oven
- Gasmax RB-4E: 4 burner benchtop cooktop
Common questions:
Does it need a bench or stand?
No. It is a freestanding range on adjustable heavy-duty legs, 1128mm high, with the oven built in underneath the burners.
Can I fit an infill bench beside it?
Yes. The Modular Systems WBB-0300R (300mm) and WBB-0450R (450mm) infill benches are listed by FED to suit the Gasmax GBS ranges.
Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area.
See all our commercial stoves.
Warranty: 2 years parts and labour, plus a further 2 years on parts when the unit is registered with FED within 14 days of invoice.
