Modular Systems 393577 - Stainless Steel Gastronorm Pan Trolley, 16 Pans
Modular Systems 393577 - Stainless Steel Gastronorm Pan Trolley, 16 Pans
SKU: 393577
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years (24 months), parts only. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 380 W x 550 D x 1735 H mm. Check doorways and access on the way in.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

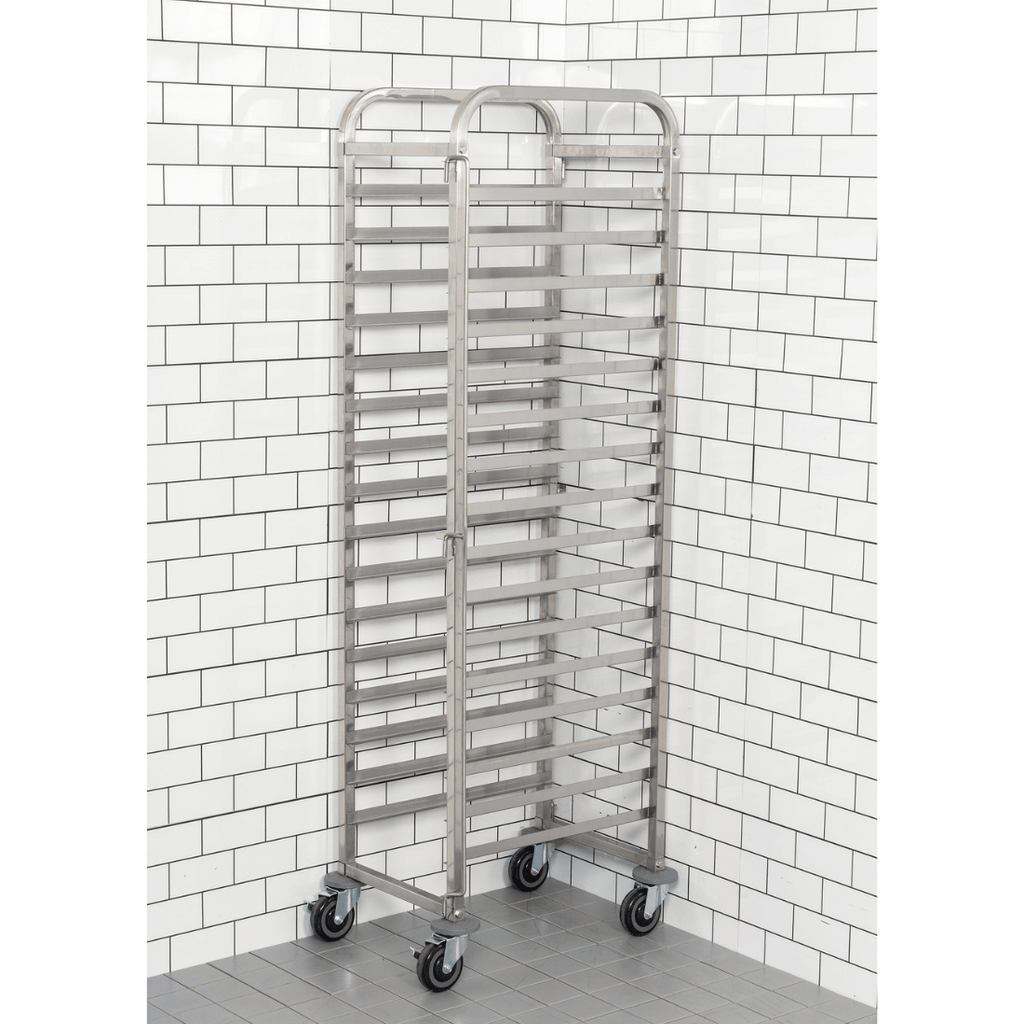

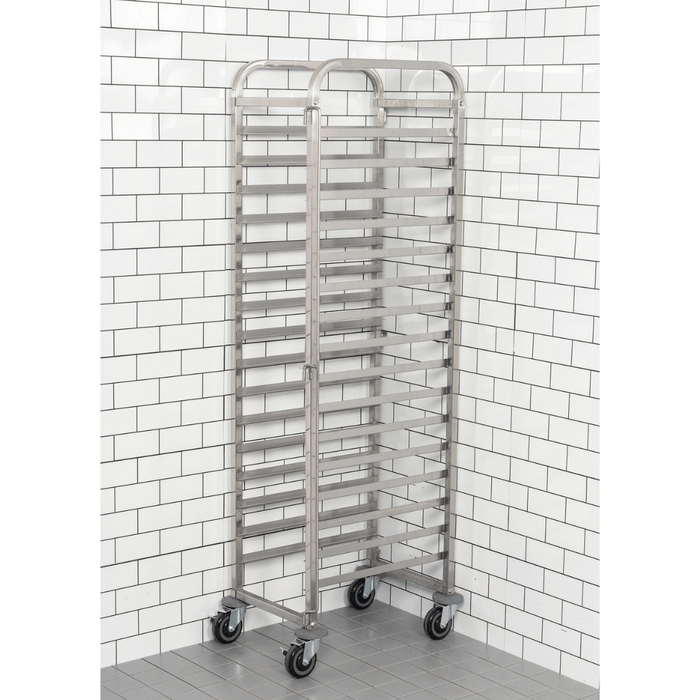

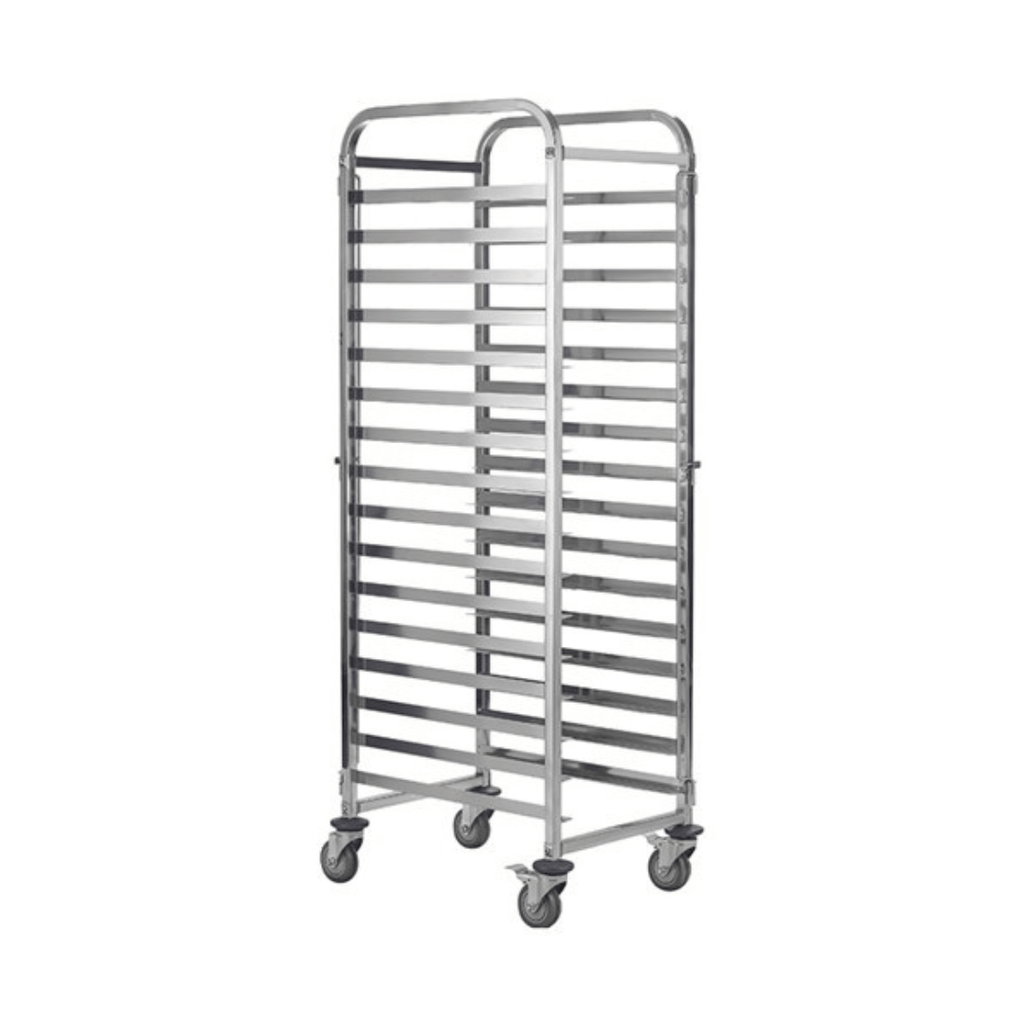

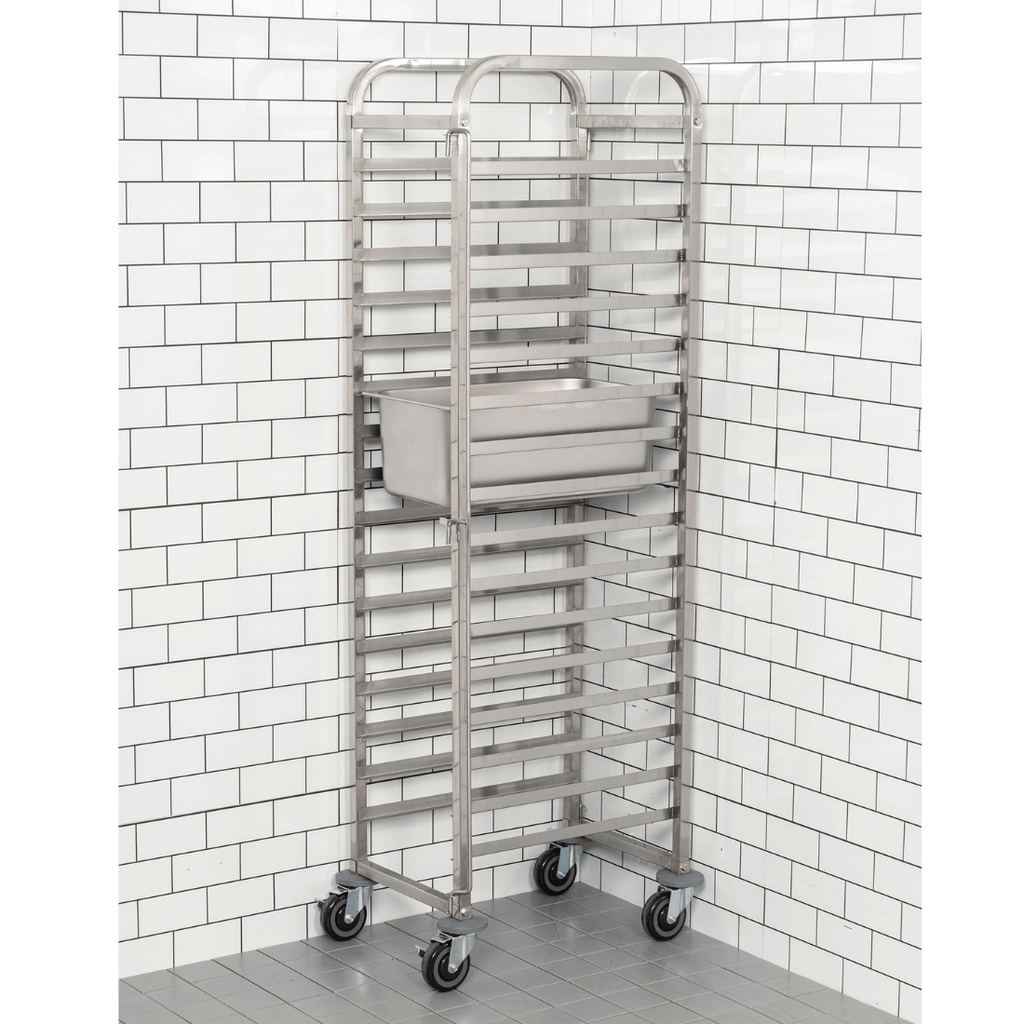

Modular Systems 393577 - Stainless Steel Gastronorm Pan Trolley, 16 Pans
The Modular Systems 393577 is a tall, slim gastronorm pan trolley that holds 16 pans in a footprint just 380 x 550mm, so prepped food can be wheeled from the bench to the line or the coolroom in one trip. It's made from 201 grade stainless steel tube and rails, with safety rods to stop pans sliding out and 100mm castors, two with brakes. It's the same height as the double 32-pan 404090 but half the width, and much taller than the 6-pan 400660.
Key features:
- Holds 16 gastronorm pans
- Slim 380mm wide frame, 1735mm high
- Frame of 1.0mm, 25 x 25mm 201 grade stainless steel tube
- 1.2mm 201 grade stainless steel pan rails
- Safety rods included to keep pans in place on the move
- 100mm castors, two with brakes, plus castor bumpers
- Flat-packed for delivery
Specifications:
- Model: Modular Systems 393577
- Capacity: 16 gastronorm pans
- Dimensions: 380 W x 550 D x 1735 H mm
- Net weight: 18.5 kg
- Frame: 1.0mm 201 stainless steel tube, 25 x 25mm
- Rails: 1.2mm 201 stainless steel
- Castors: 100mm, two braked, with bumpers
- Packed size for delivery: 610 x 1650 x 80 mm (flat-packed)
Good to know before you buy:
- Access: it arrives as a slim flat-pack about 610 x 1650 x 80 mm, delivered by tailgate truck to the front of your premises. Standard delivery doesn't include carrying it inside or unpacking.
- Assembly: it's flat-packed, so allow time to put it together on site.
- Pans: gastronorm pans aren't listed as included. Ask us if you need pans to suit.
Compare similar models:
- Modular Systems 400660: shorter 1000mm trolley for 6 pans
- Modular Systems 404090: double-width trolley for 32 pans (2 x 16)
- Modular Systems 413479: 16-tray trolley for 400 x 600mm baking trays
Common questions:
Will pans slide out when I move it?
Safety rods are included to keep pans secure while the trolley is moving.
Can I park it safely?
Yes. Two of the four 100mm castors have brakes, and castor bumpers help protect walls and equipment.
Are pans included?
No pans are listed with this trolley. Ask us for a price on gastronorm pans.
See all our kitchen trolleys.
Warranty: 2 years (24 months), parts only.
