Modular Systems PCU24/54 - Poly Coolroom Shelving Starter Kit 1370 x 610mm

Modular Systems PCU24/54 - Poly Coolroom Shelving Starter Kit 1370 x 610mm

For a coolroom or freezer where hygiene matters, the PCU24/54 pairs vented shelf plates that contain an antibacterial agent with poly-coated steel posts. The kit is 1370mm wide, 610mm deep and 1800mm high, with four shelves rated at 250kg each, and a matching PCA24/54 add-on unit is available to extend the run. For a slimmer footprint, the PCU18/54 is the same width at 455mm deep.

Key features:

• Four tiers of vented composite shelf plates on poly-coated steel posts, 1370 W x 610 D x 1800 H mm

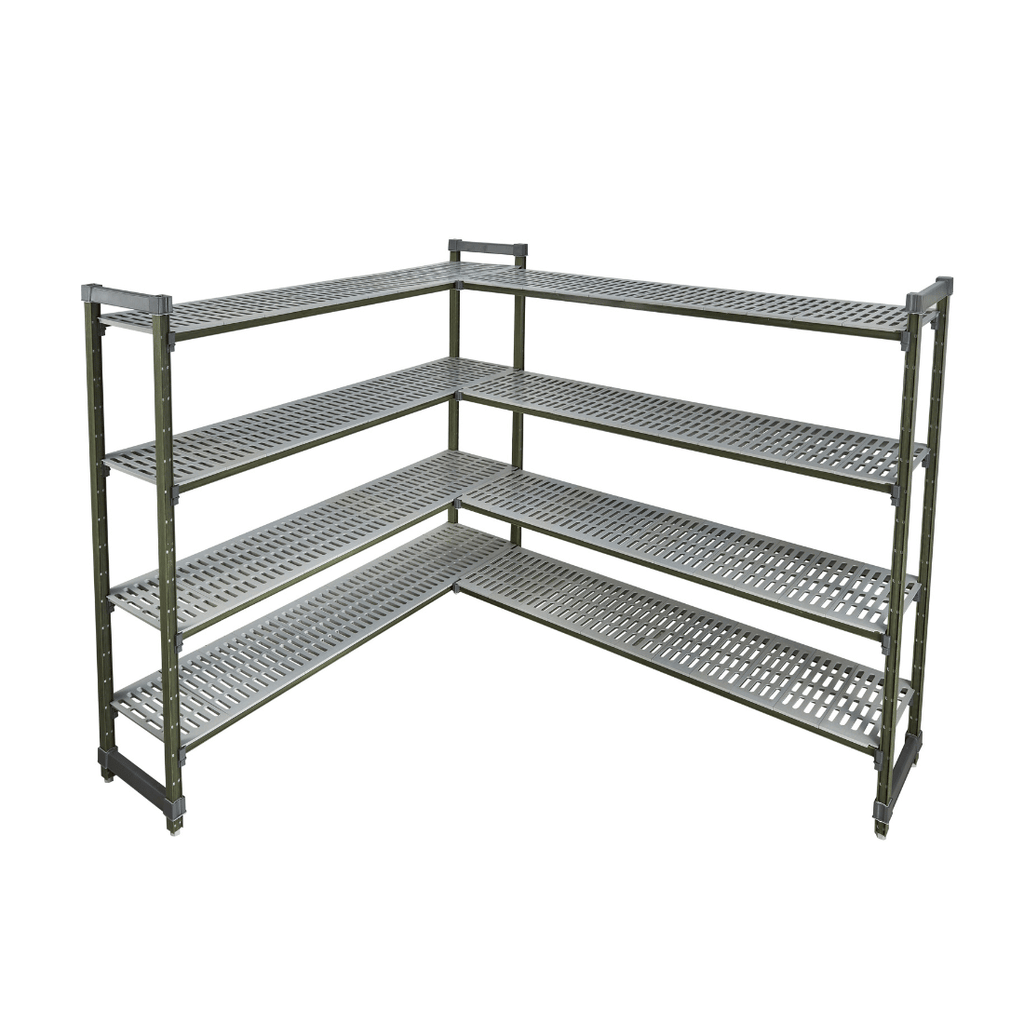

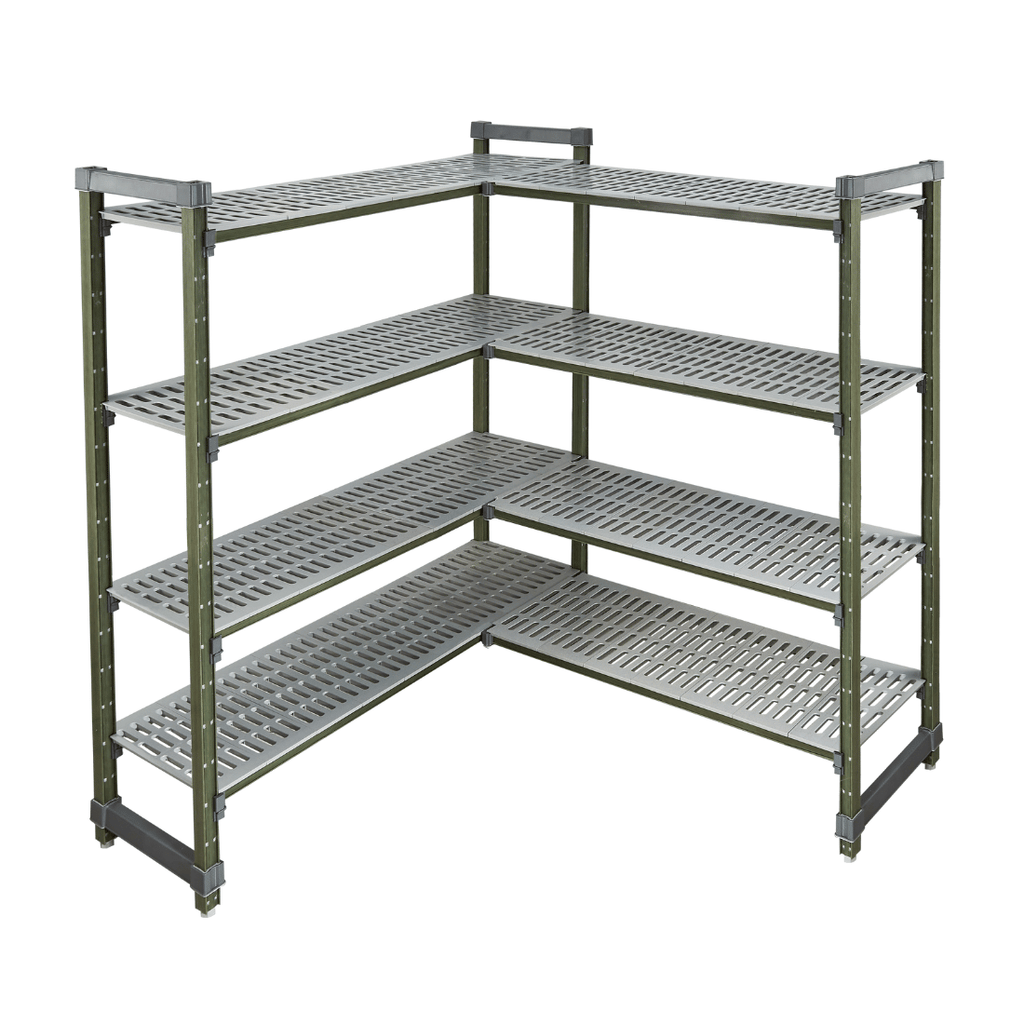

• Each shelf rated to 250kg (200kg per shelf in a corner unit)
• Shelf plates contain an antibacterial agent and can be washed in a dishwasher
• Rust-proof, mould-proof and fungus-proof, and suitable for wet kitchen areas

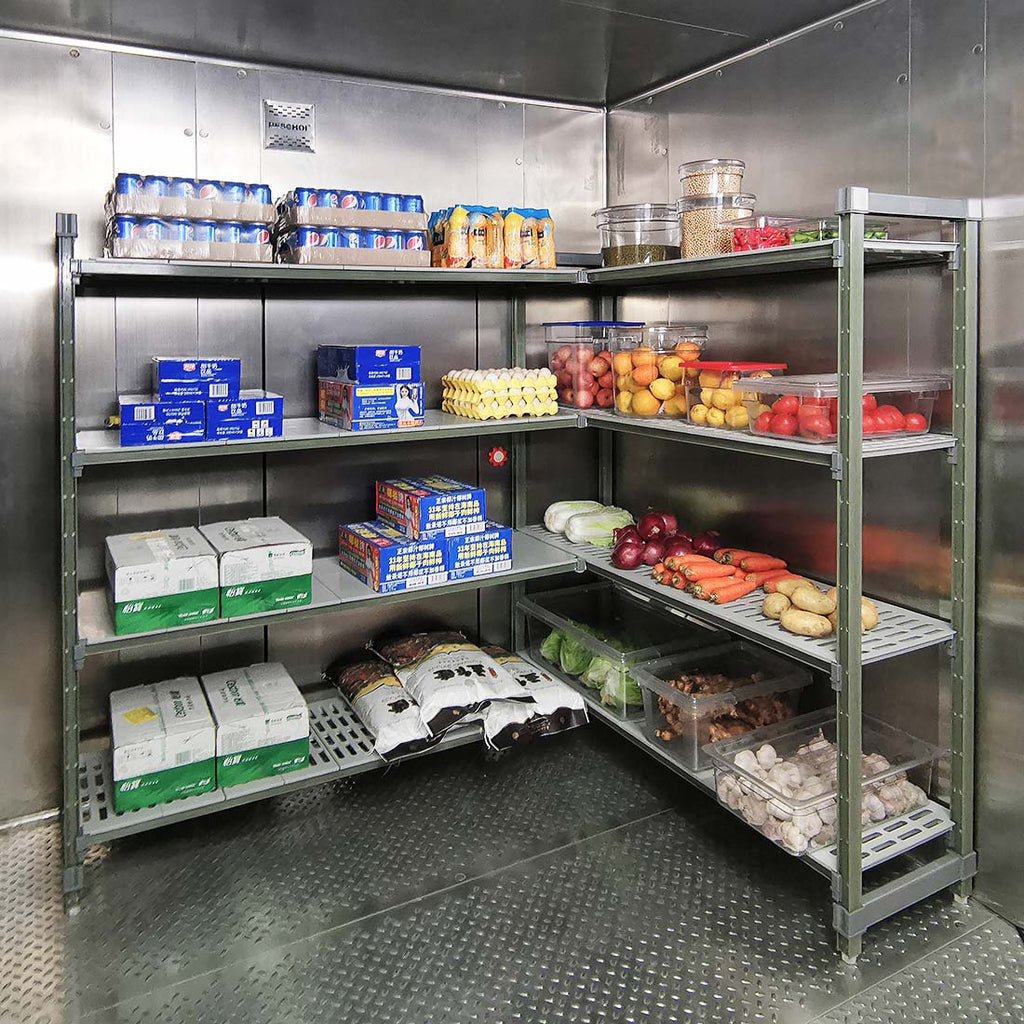

• Rated for low, sub-zero temperatures, so it suits coolrooms and freezers

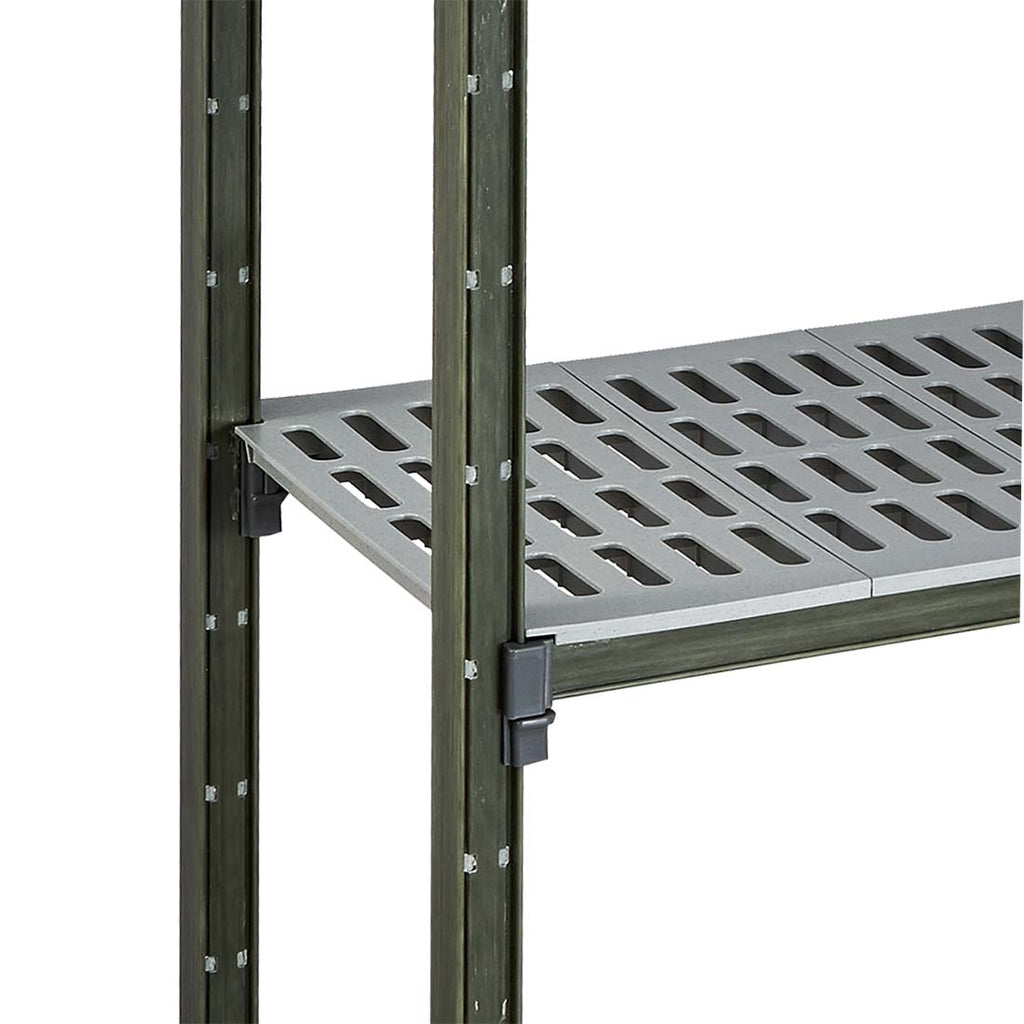

• Buckle design makes assembly and shelf adjustment easier
• Notch-embedded posts and a smooth, easy-to-clean surface
• Adjustable feet
• Matching PCA24/54 add-on unit available to extend the run

Specifications:

• Model: Modular Systems PCU24/54
• Type: 4-tier vented shelving starter kit
• Dimensions: 1370 W x 610 D x 1800 H mm
• Shelf load rating: 250kg per shelf (200kg per shelf in a corner unit)
• Mobile unit rating: 300kg for the whole unit on castors (castors sold separately)
• Construction: poly-coated steel posts, composite vented shelf plates with antibacterial agent
• Feet: adjustable
• Matching add-on unit: PCA24/54
• Packed size for delivery: 700 x 1450 x 1900 mm

Good to know before you buy:

• Access: the carton is 700 x 1450 x 1900 mm, so check your doorways, corridors and any tight corners for the 1900mm length. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• What's included: this is the starter kit for one four-tier unit with adjustable feet. Castors (5 inch, with or without brake, sold individually), corner connectors and the PCA24/54 add-on unit are extra.
• Going mobile: on castors the whole unit is rated to 300kg in total, far less than four fully loaded shelves, so lighten the load if you fit wheels.

Compare similar models:

• Modular Systems PCU18/54: same 1370mm width, slimmer 455mm shelves
• Modular Systems PCU24/48: narrower 1220mm starter kit, same 610mm depth
• Modular Systems PCU24/60: wider 1525mm starter kit, same 610mm depth
• Modular Systems B24/54: black plasticised 4-tier kit, 1372 x 610 x 1880mm, rated 150kg per shelf

Common questions:

Can I use the PCU24/54 in a freezer?
Yes. FED rates it for use at low, sub-zero temperatures, so it suits freezers as well as coolrooms.

Do you put it together?
We supply the equipment only. The PCU24/54 is assembled on site, and FED's buckle design makes assembly and shelf adjustment easier.

Will the PCU24/54 rust in a coolroom or wet area?
FED describes this system as rust-proof, mould-proof and fungus-proof, and suitable for wet kitchens. The PCU24/54 has poly-coated steel posts and composite shelf plates.

See all our coolroom and dry store shelving.

Warranty: 2 years parts only.
