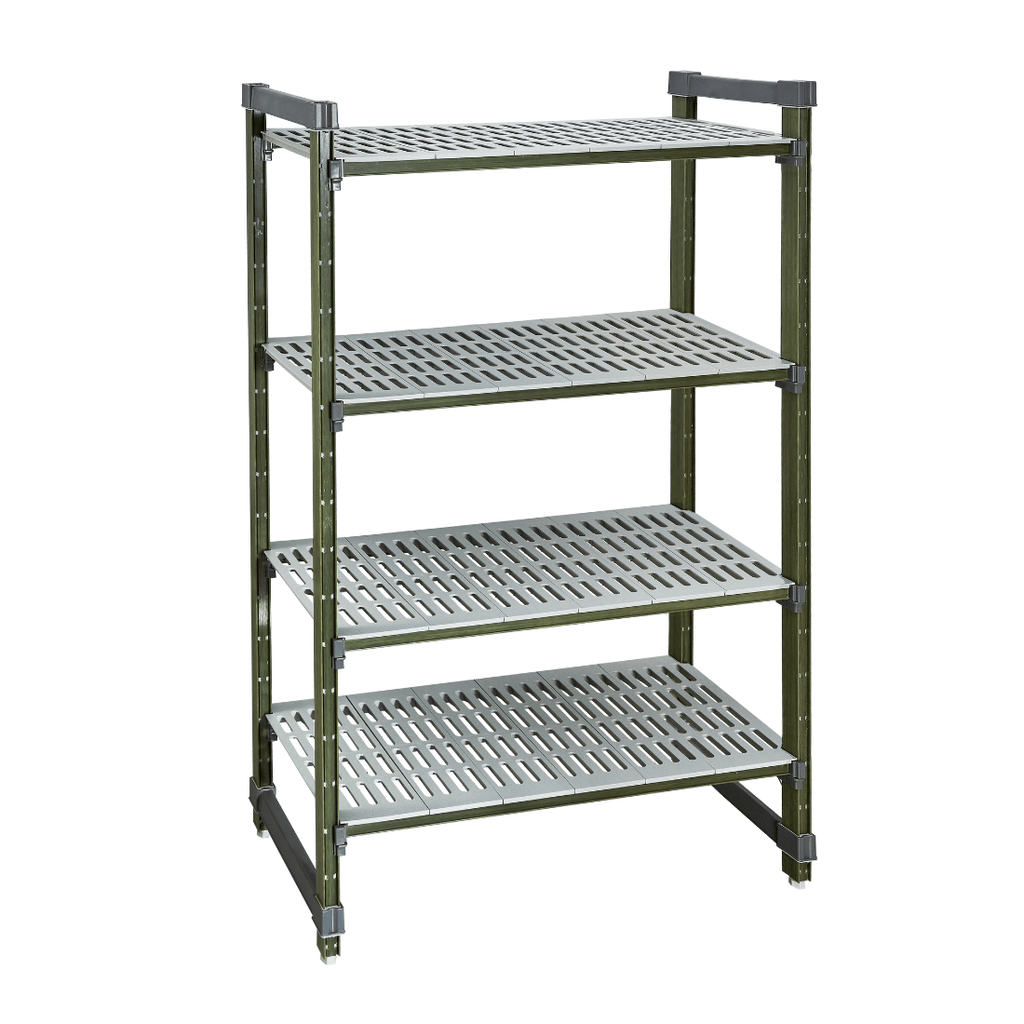

Modular Systems PCU24/72 - Poly Coolroom Shelving Starter Kit 1825 x 610mm

Modular Systems PCU24/72 - Poly Coolroom Shelving Starter Kit 1825 x 610mm

Rust and mould are what you want to avoid in coolroom shelving, and FED describes the PCU24/72 as rust-proof, mould-proof and fungus-proof, with vented shelf plates that can go through a dishwasher. This starter kit gives you four tiers in a 1825 x 610mm footprint, 1800mm high, at 250kg per shelf. The deeper 610mm shelves suit larger cartons, crates and bulk stock. For a slimmer footprint, the PCU18/72 is the same width at 455mm deep.

Key features:

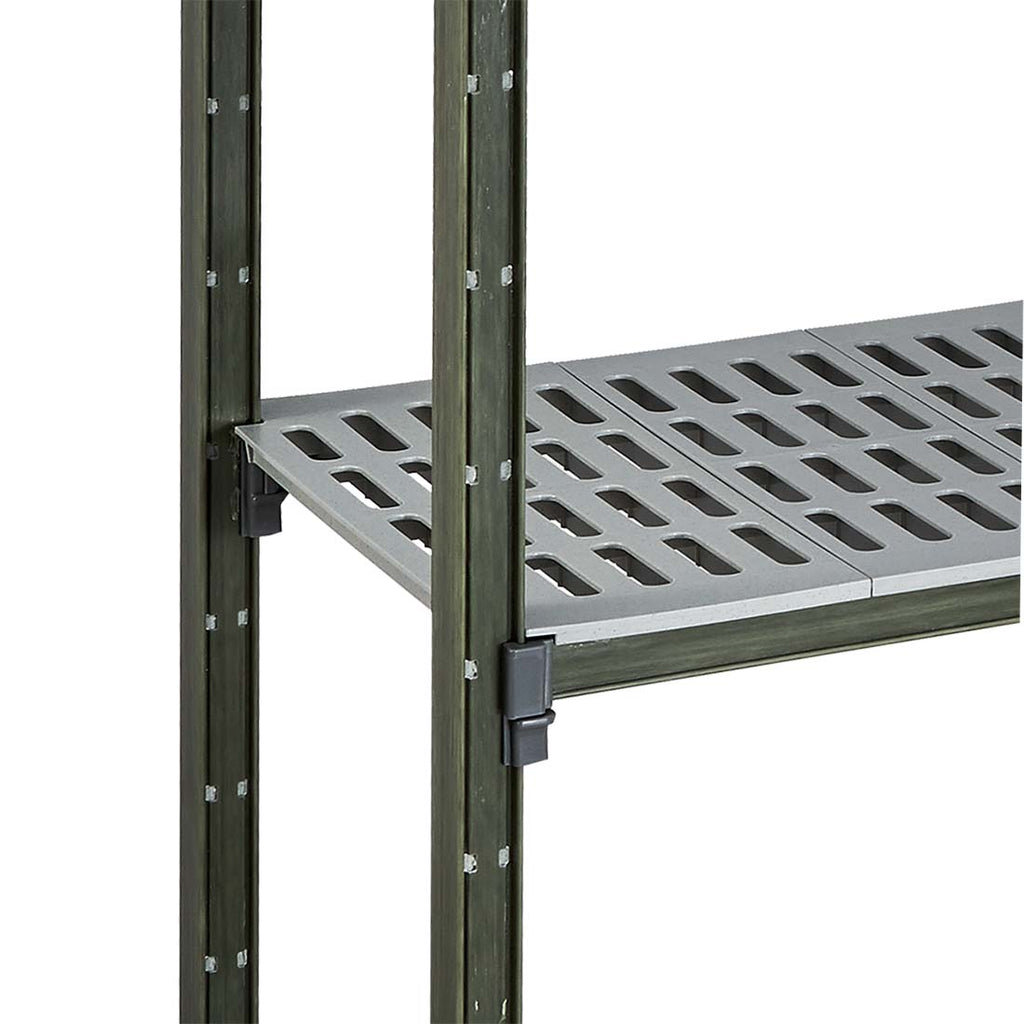

• Four tiers of vented composite shelf plates on poly-coated steel posts, 1825 W x 610 D x 1800 H mm
• Each shelf rated to 250kg (200kg per shelf in a corner unit)
• Shelf plates contain an antibacterial agent and can be washed in a dishwasher
• Rust-proof, mould-proof and fungus-proof, and suitable for wet kitchen areas
• Rated for low, sub-zero temperatures, so it suits coolrooms and freezers
• Buckle design makes assembly and shelf adjustment easier
• Notch-embedded posts and a smooth, easy-to-clean surface
• Adjustable feet
• Matching PCA24/72 add-on unit available to extend the run

Specifications:

• Model: Modular Systems PCU24/72
• Type: 4-tier vented shelving starter kit
• Dimensions: 1825 W x 610 D x 1800 H mm
• Shelf load rating: 250kg per shelf (200kg per shelf in a corner unit)
• Mobile unit rating: 300kg for the whole unit on castors (castors sold separately)
• Construction: poly-coated steel posts, composite vented shelf plates with antibacterial agent
• Feet: adjustable
• Matching add-on unit: PCA24/72
• Packed size for delivery: 700 x 1900 x 1900 mm

Good to know before you buy:

• Access: the carton is 700 x 1900 x 1900 mm, so check your doorways, corridors and any tight corners for the 1900mm length. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• What's included: this is the starter kit for one four-tier unit with adjustable feet. Castors (5 inch, with or without brake, sold individually), corner connectors and the PCA24/72 add-on unit are extra.
• Going mobile: on castors the whole unit is rated to 300kg in total, far less than four fully loaded shelves, so lighten the load if you fit wheels.

Compare similar models:

• Modular Systems PCU18/72: same 1825mm width, slimmer 455mm shelves
• Modular Systems PCU24/60: narrower 1525mm starter kit, same 610mm depth
• Modular Systems B24/72: black plasticised 4-tier kit, 1830 x 610 x 1880mm, rated 150kg per shelf

Common questions:

Do you put it together?
We supply the equipment only. The PCU24/72 is assembled on site, and FED's buckle design makes assembly and shelf adjustment easier.

Will the PCU24/72 rust in a coolroom or wet area?
FED describes this system as rust-proof, mould-proof and fungus-proof, and suitable for wet kitchens. The PCU24/72 has poly-coated steel posts and composite shelf plates.

How do I build a longer run or a corner?

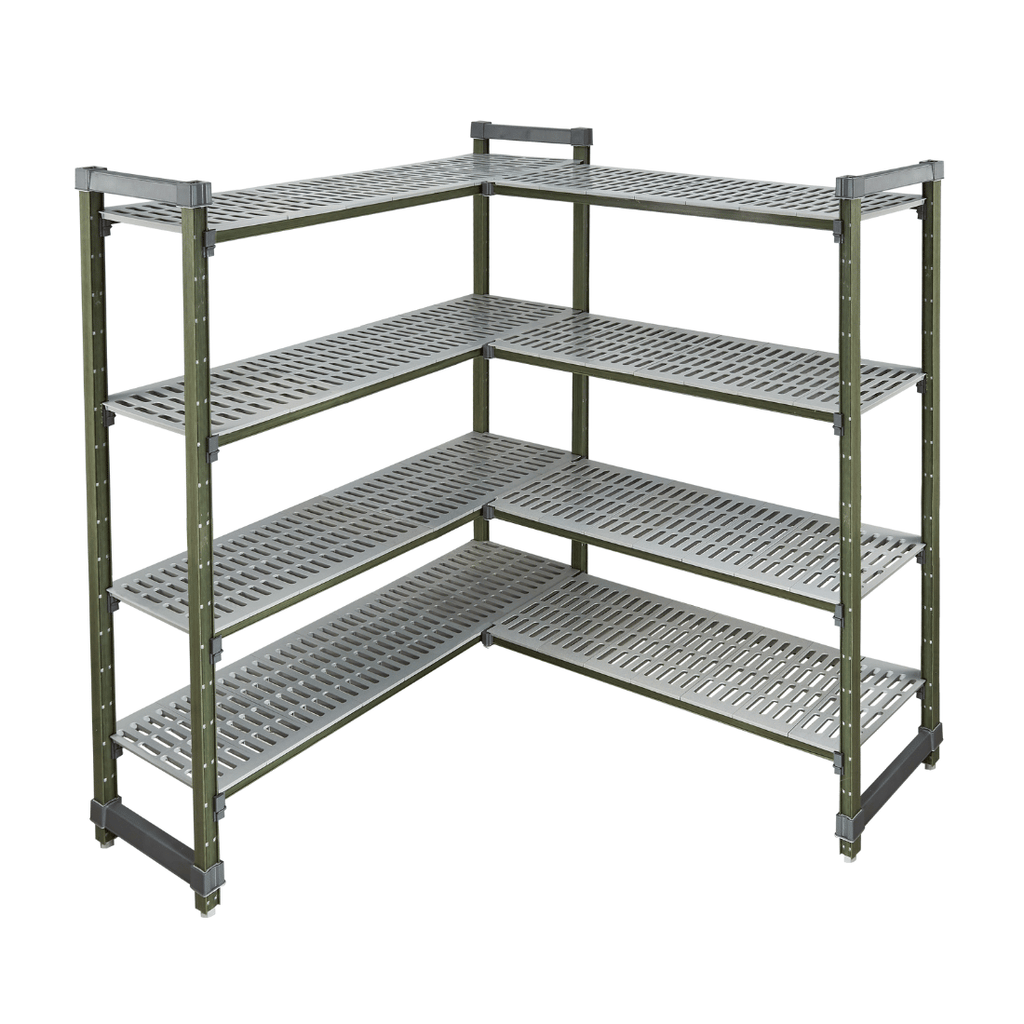

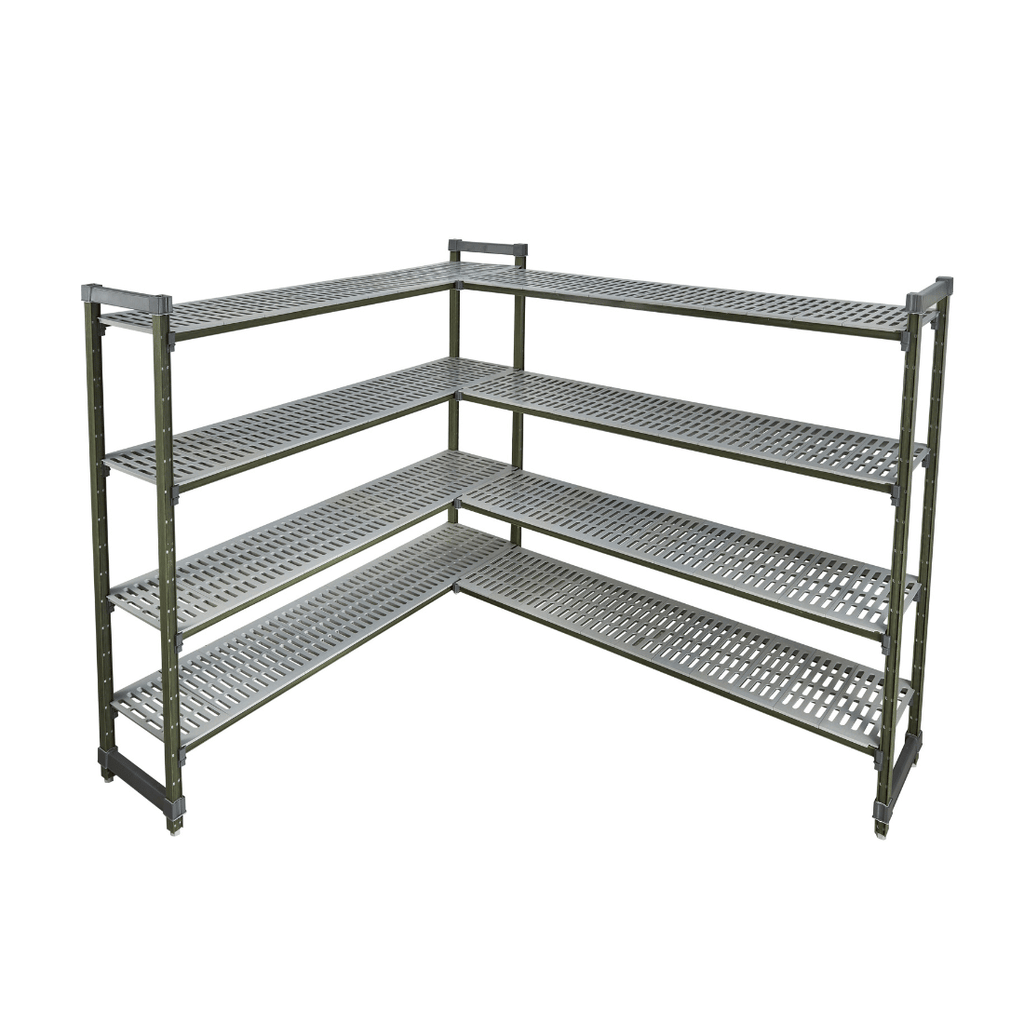

Use the matching PCA24/72 add-on unit to extend the run, and corner connectors to make an L-shape. In a corner unit each shelf is rated to 200kg. Ask us about the add-on parts.

See all our coolroom and dry store shelving.

Warranty: 2 years parts only.
