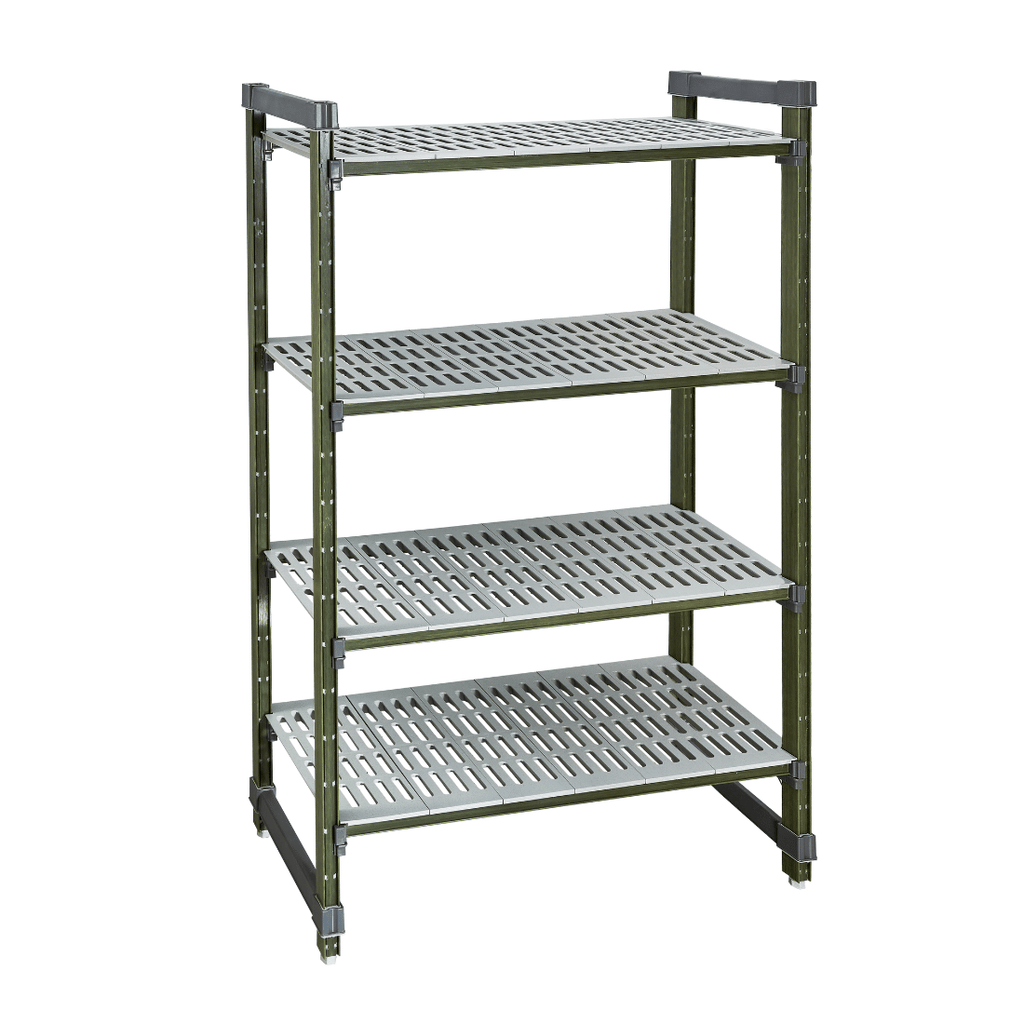

Modular Systems PCU24/60 - Poly Coolroom Shelving Starter Kit 1525 x 610mm

Modular Systems PCU24/60 - Poly Coolroom Shelving Starter Kit 1525 x 610mm

The Modular Systems PCU24/60 is a four-tier vented shelving starter kit with poly-coated steel posts and composite shelf plates, made for coolrooms, freezers and wet kitchen areas. It measures 1525 W x 610 D x 1800 H mm and each shelf is rated to 250kg. With a 1525mm width, it suits long walls and bulk stock. For a slimmer footprint, the PCU18/60 is the same width at 455mm deep.

Key features:

• Four tiers of vented composite shelf plates on poly-coated steel posts, 1525 W x 610 D x 1800 H mm

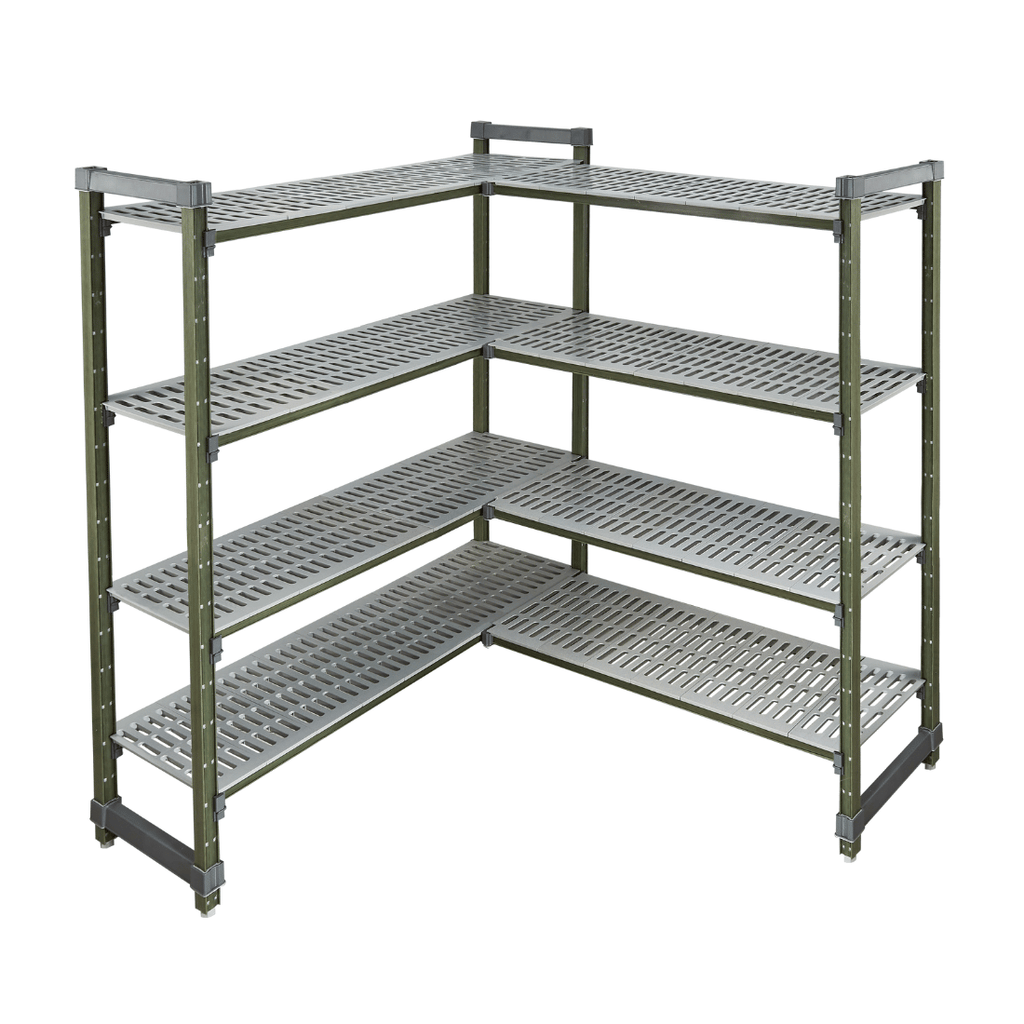

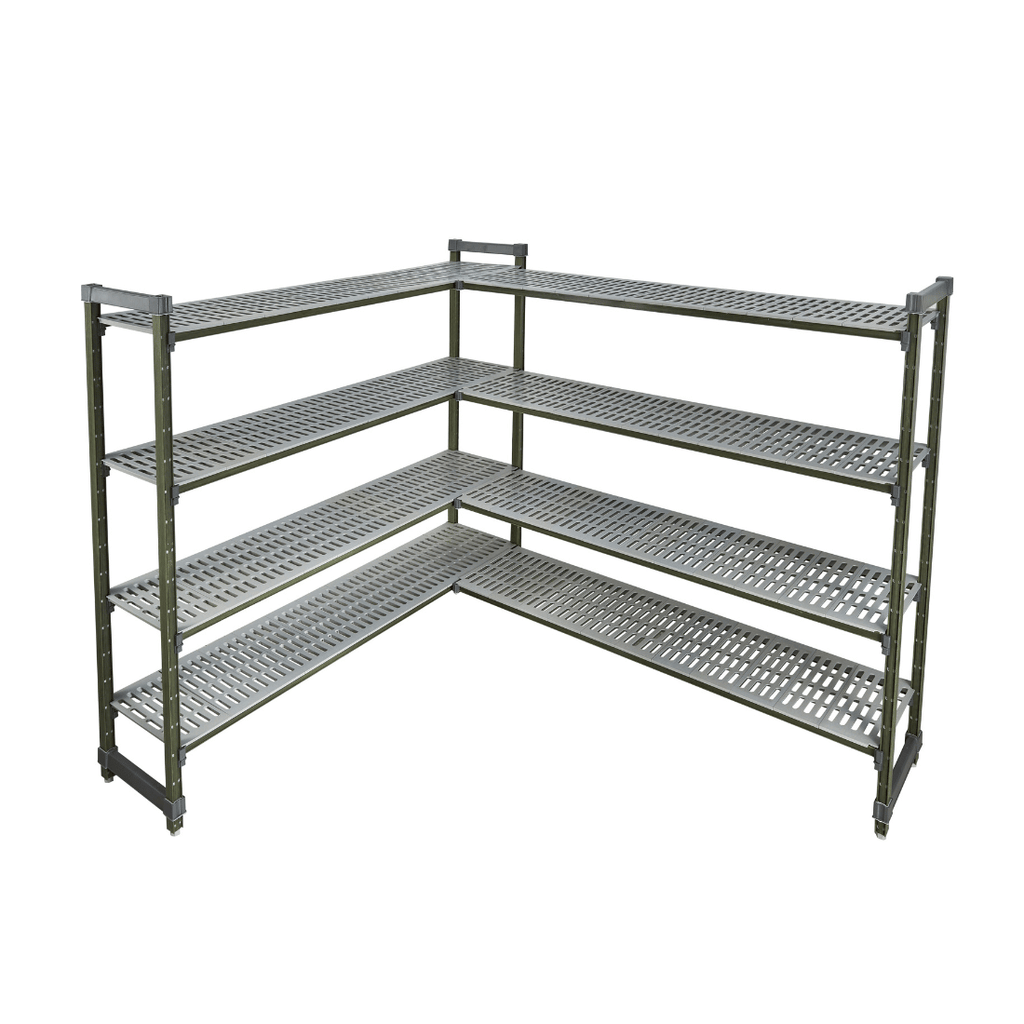

• Each shelf rated to 250kg (200kg per shelf in a corner unit)
• Shelf plates contain an antibacterial agent and can be washed in a dishwasher
• Rust-proof, mould-proof and fungus-proof, and suitable for wet kitchen areas

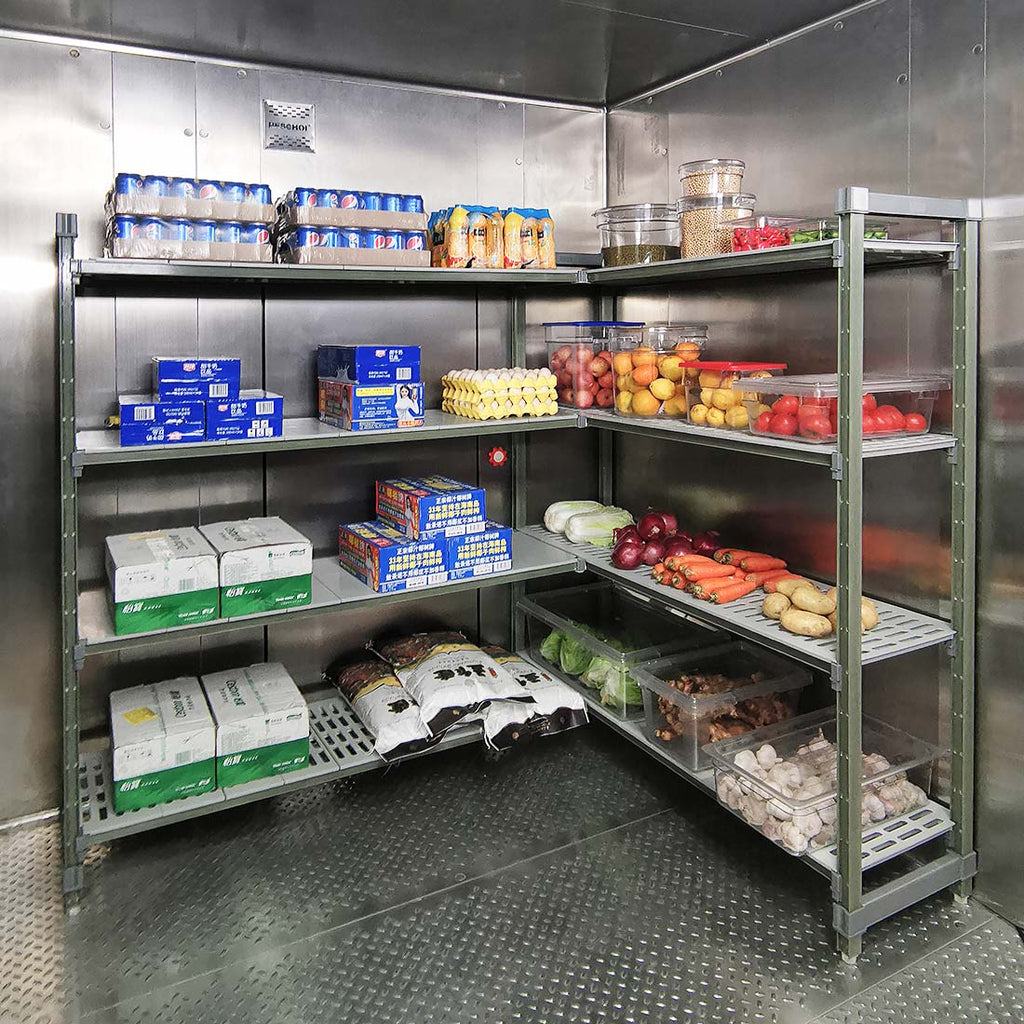

• Rated for low, sub-zero temperatures, so it suits coolrooms and freezers

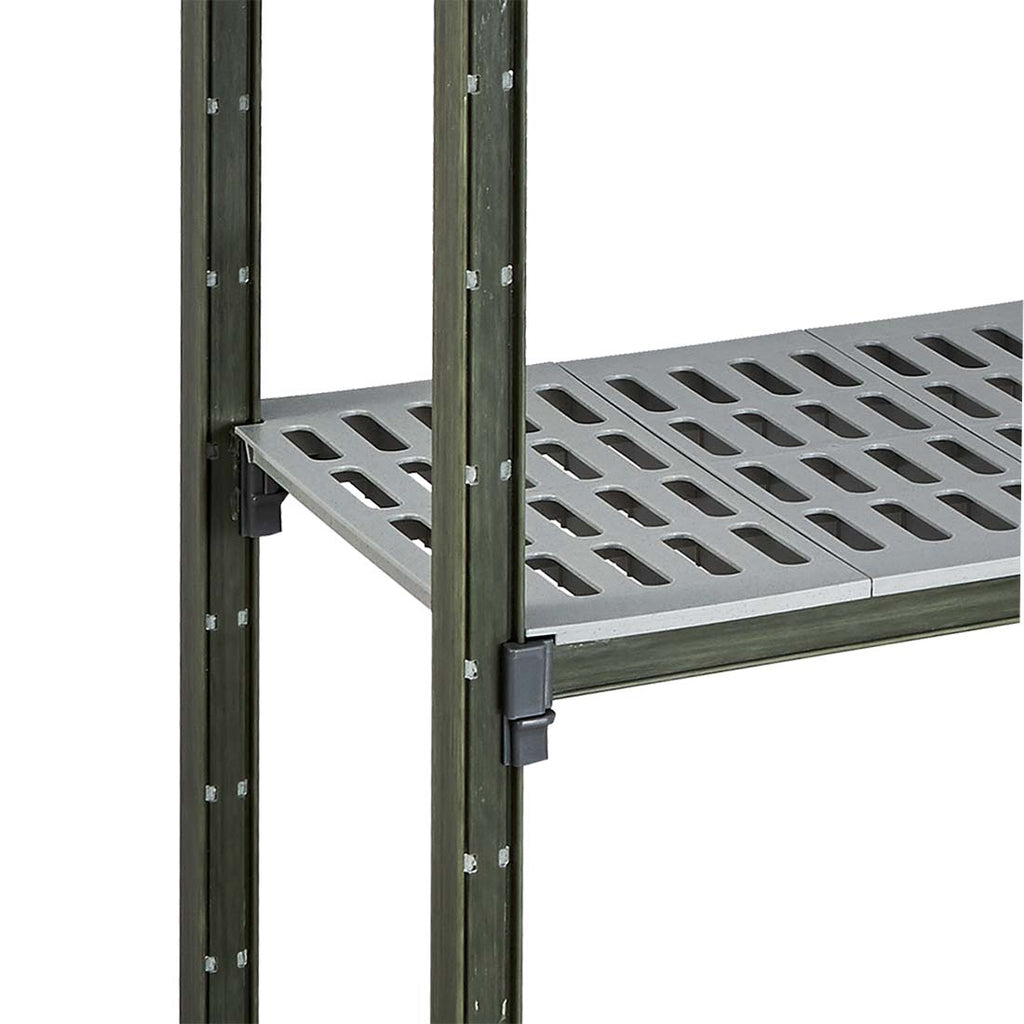

• Buckle design makes assembly and shelf adjustment easier
• Notch-embedded posts and a smooth, easy-to-clean surface
• Adjustable feet
• Matching PCA24/60 add-on unit available to extend the run

Specifications:

• Model: Modular Systems PCU24/60
• Type: 4-tier vented shelving starter kit
• Dimensions: 1525 W x 610 D x 1800 H mm
• Shelf load rating: 250kg per shelf (200kg per shelf in a corner unit)
• Mobile unit rating: 300kg for the whole unit on castors (castors sold separately)
• Construction: poly-coated steel posts, composite vented shelf plates with antibacterial agent
• Feet: adjustable
• Matching add-on unit: PCA24/60
• Packed size for delivery: 700 x 1650 x 1900 mm

Good to know before you buy:

• Access: the carton is 700 x 1650 x 1900 mm, so check your doorways, corridors and any tight corners for the 1900mm length. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• What's included: this is the starter kit for one four-tier unit with adjustable feet. Castors (5 inch, with or without brake, sold individually), corner connectors and the PCA24/60 add-on unit are extra.
• Going mobile: on castors the whole unit is rated to 300kg in total, far less than four fully loaded shelves, so lighten the load if you fit wheels.
• Space: the assembled unit needs 1525 x 610mm of floor space and 1800mm of height. In a coolroom, keep it clear of the evaporator fan so cold air can circulate.

Compare similar models:

• Modular Systems PCU18/60: same 1525mm width, slimmer 455mm shelves
• Modular Systems PCU24/54: narrower 1370mm starter kit, same 610mm depth
• Modular Systems PCU24/72: wider 1825mm starter kit, same 610mm depth
• Modular Systems B24/60: black plasticised 4-tier kit, 1525 x 610 x 1880mm, rated 150kg per shelf

Common questions:

What's the difference between PCU and PCA kits?
PCU kits like this one are the starter units. PCA kits are the matching add-on units, so the PCA24/60 is the one to pair with this 1525mm kit.

Can the shelf plates go through the dishwasher?
Yes. FED says the vented shelf plates on the PCU24/60 can be washed in a dishwasher, and they contain an antibacterial agent.

Can I put it on wheels?
Yes. 5 inch castors are available with or without a brake, sold individually. On castors the whole PCU24/60 unit is rated to 300kg. Ask us for a price.

See all our coolroom and dry store shelving.

Warranty: 2 years parts only.
