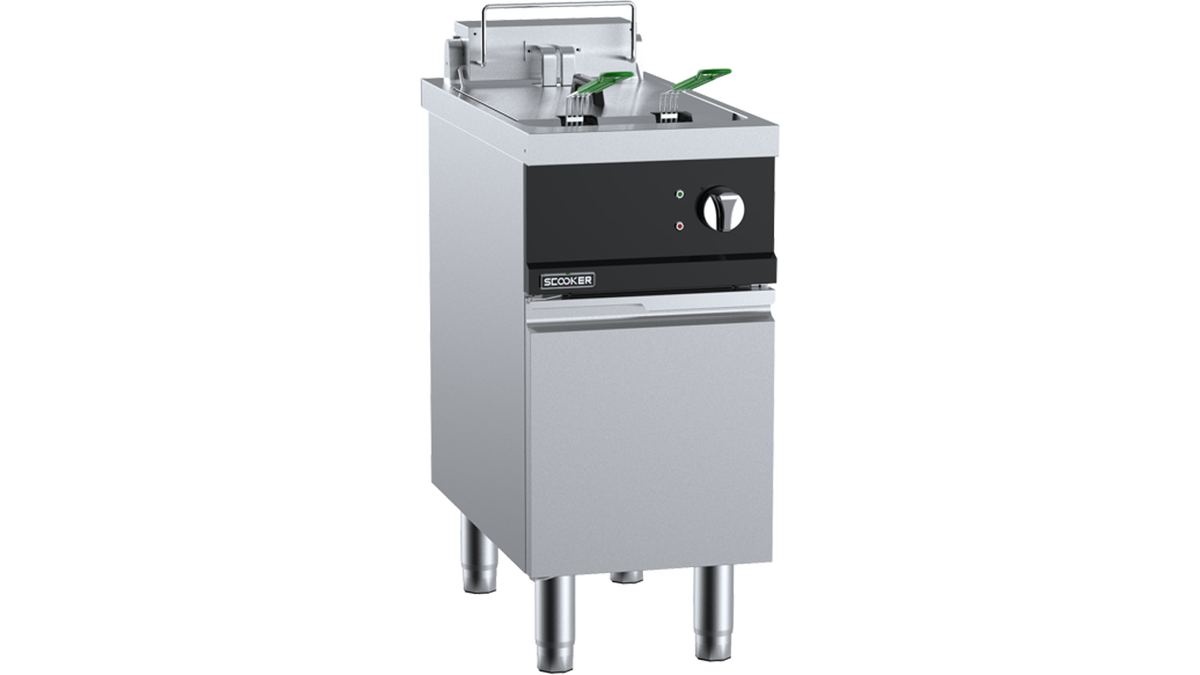

SCooker DLYZDN2-C9 - 400mm 20L Electric Fryer 2 Basket 9kW

SCooker DLYZDN2-C9 - 400mm 20L Electric Fryer 2 Basket 9kW

The SCooker DLYZDN2-C9 is a single pan, two basket electric fryer for a cafe, pub kitchen or small takeaway that needs a narrow fryer on a 3-phase supply. It holds 20 L of oil and runs on 9 kW in a 400 mm wide cabinet. It is a simpler, smaller choice than the 40 L Rapid RF-1E, while the induction HLYZDN-C12 has the same oil capacity at 12 kW.

Key features:

• 20 L oil capacity, in a stainless steel pan with centre cool zone, 2 mm thick
• Pan size 420 D x 320 W x 155 H mm, measured from the base plate to the top of the tank
• Highly efficient heating element, with a built-in thermal insulation layer that saves energy
• Temperature range 60°C to 200°C, set with a rotary control knob
• Red and green operation indicators
• Over-temperature safety cut-out switch and element tilt switch
• Inclined base for easier oil and waste removal
• Complete with baskets, base plate and night cover
• AISI grade stainless steel, heavy duty cabinet frame and front access to all components

Specifications:

• Model: DLYZDN2-C9
• Dimensions: 400 W x 750 D x 1020 H mm
• Electrical: 9 kW, 415 V, 3-phase (3P+N+E), 50/60 Hz, 13.5 A per phase
• Connection: hard wired or plug and lead
• Weight: 50 kg
• Oil outlet: 1 inch BSP female
• Standards: AS/NZS CISPR 14.1

Good to know before you buy:

• Installation: must be connected by a licensed electrician, to AS/NZS 3000. It needs a 3-phase supply. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 400 x 750 x 1020 mm unit, about 50 kg.
• Options: B+S also offers a 400 x 50 mm plinth kit, coloured front and door panels (red or royal blue) and non-swivel rear castors (set of two). Ask us for a price.

Compare similar models:

• SCooker HLYZDN-C12: induction with the same 400 mm width and 20 L of oil, 12 kW, with a variable power knob and display.
• Rapid RF-400: a gas fryer with 20 L of oil and two baskets, 115 MJ/h.
• Rapid RF-1E: a 450 mm electric fryer with 40 L of oil, inbuilt filtration and 13.5 kW.

Common questions:

Will it line up with other SCooker units?
On width and depth, yes. On height, no. This fryer stands 1020 mm high, while other 400 mm SCooker units are 905 mm, so its top sits 115 mm above them.

How do I drain the oil?
Through the heavy duty lockable drain valve and the 1 inch oil outlet. If you want built-in filtration, look at the Rapid RF-1E.

Who makes SCooker?
SCooker equipment is made in Foshan, China, by SCooker and distributed by B+S Commercial Kitchens.

See all our commercial deep fryers.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
