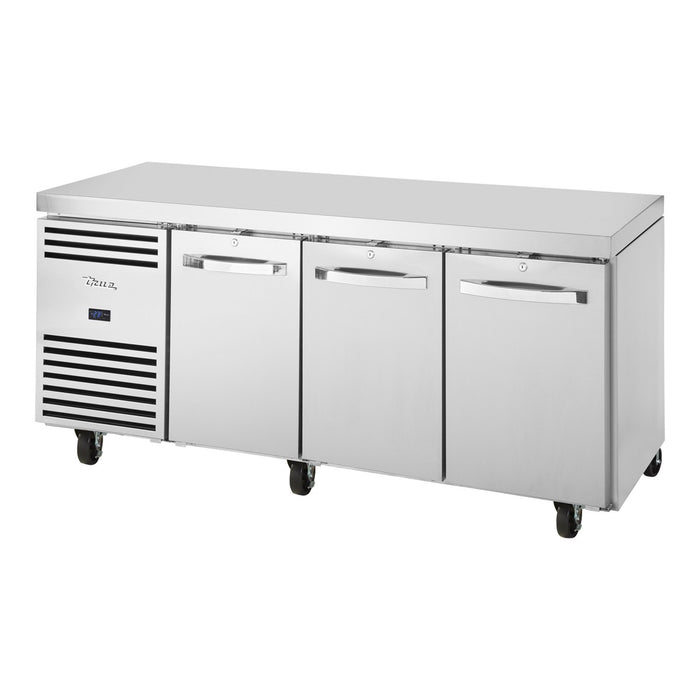

True TCF1/3-CL-SS-DL-DR-DR - 1/1 GN 3 Section Counter Freezer 1865mm 250L

True TCF1/3-CL-SS-DL-DR-DR - 1/1 GN 3 Section Counter Freezer 1865mm 250L

Three door sections of 1/1 GN frozen storage under a single 1865 mm stainless steel counter: that is the True TCF1/3-CL-SS-DL-DR-DR. It runs at -23°C with 250 litres net, carries the refrigeration system in a left-hand section, and stands at a 900 mm working height. Compared with the two-section TCF1/2-CL-SS-DL-DR, it adds a third door and two more shelves, and the TCR1/3-CL-SS-DL-DR-DR is the matching fridge.

Key features:

• Runs at -23°C, 250 litres net (630 litres gross)
• Three solid swing doors, each section fitted for 1/1 GN pans
• Door hinging as built: left door opens left, centre and right doors open right
• 6 shelves supplied, with True's "E" shaped slides that hold a wire shelf and a 1/1 GN pan
• Climate Class 5, certified for demanding 40°C kitchens
• Digital temperature control, R290 hydrocarbon system and automatic defrost
• Front-breathing with zero rear and side clearance; plinth mountable
• Patented True RCU feature to help reduce debris build-up on the condensing coil
• Locks standard, 127 mm heavy duty lock-in-place castors

Specifications:

• Model: True TCF1/3-CL-SS-DL-DR-DR
• Capacity: 250 litres net, 630 litres gross
• Dimensions: 1865 W x 700 D x 900 H mm
• Weight: 182 kg unpacked
• Temperature: -23°C
• Maximum room temperature: 40°C (Climate Class 5, heavy duty)
• Refrigerant: R290
• Power: single-phase 220–240 V, 50 Hz, supplied with a 2.74 m power cord
• Energy use: 4.471 kWh per 24 hours (1632 kWh per year), energy efficiency class C
• Doors: 3 solid swing doors, locks standard; field reversible (opposite hinge part sold separately)
• Shelves: 6 supplied, 530 x 325 mm (1/1 GN size)
• Internal net height: 500 mm
• Top: stainless steel countertop, 900 mm working height
• Construction: stainless steel front and countertop, aluminium sides and rear; clear coated aluminium interior with a stainless steel base
• Castors: 127 mm diameter, lock-in-place (152 mm height)
• Packed size for delivery: 2032 x 801 x 1069 mm, 193 kg

Good to know before you buy:

• Access: the packed freezer is just over 2 metres long (2032 x 801 x 1069 mm) and weighs 193 kg. Allow an extra 41 mm in front of the 700 mm depth for the handles. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include carrying it inside, up stairs or unpacking, so check doorways and corners.
• Power: single-phase 220–240 V, 50 Hz, 2.74 m power cord. Ask us to confirm the running current for your electrician.
• Height options: a reduced-height castor set (64 mm, set of 6 for three-section cabinets) lowers it to 831 mm. It can also sit on a plinth.
• Pricing: This model is priced on application. Ask us for a quote.

Compare similar models:

• True TCF1/2-CL-SS-DL-DR: 2 section freezer, 1411 mm wide, 167 litres
• True TCR1/3-CL-SS-DL-DR-DR: matching 3 section fridge, 0.5°C to 3.3°C
• True TUC-60F-HC: 1534 mm undercounter freezer, 839 mm high, 375 litres

Common questions:

How do the three doors open?
The left door is hinged on the left, and the centre and right doors are hinged on the right. Hinging is field reversible with an opposite hinge part, which is sold separately.

How many GN pans will it take?
True's range notes say each door section's two dual tray slides and two wire shelves take up to four 1/1 GN pans (max 100 mm deep), so up to twelve across the three sections.

Do you install it?
We supply the equipment only. It comes with a 2.74 m power cord for single-phase 220–240 V; have your electrician check the outlet and circuit before delivery.

See all our undercounter freezers.

Warranty: True 5-year parts and labour warranty, including the compressor.
