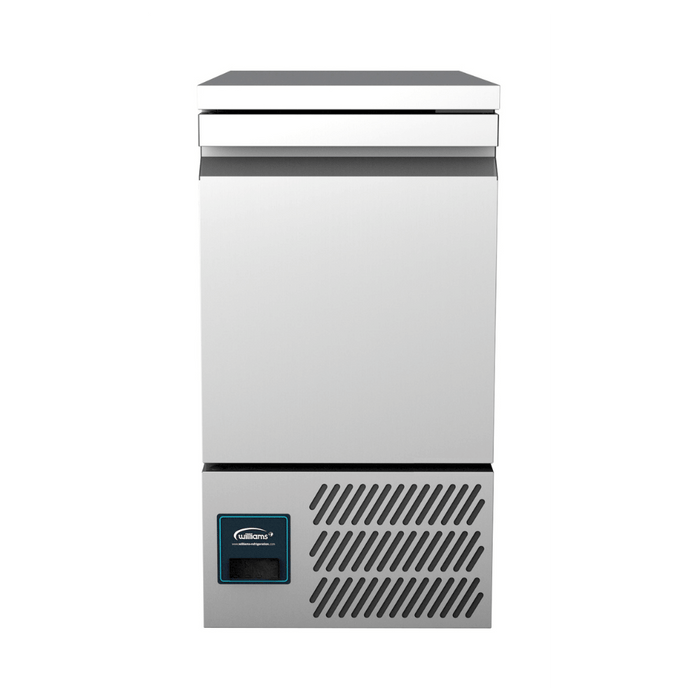

Williams Vari Temp Compact VAZ5CTDR1-HC - Compact 1 Drawer Variable Temperature Fridge Freezer 455mm 109L

Williams Vari Temp Compact VAZ5CTDR1-HC - Compact 1 Drawer Variable Temperature Fridge Freezer 455mm 109L

Only 455mm wide, the Williams Vari Temp Compact VAZ5CTDR1-HC is a slim upright drawer unit that gives a cafe, pub, club or restaurant 109 litres of storage that can be a fridge one week and a freezer the next. The single deep drawer takes up to 35 kg of food, and the CoolSmart controller switches the cabinet between +1°C to +4°C and -18°C to -22°C. It runs on R290 natural refrigerant from a 10 amp plug, vents through the rear, and sits on rear castors with adjustable front feet so it stays put beside the cooking line. The VAZ5CTDR2-HC is the same cabinet split into two drawers.

Key features:

• Variable temperature: switch from fridge (+1°C to +4°C) to freezer (-18°C to -22°C) as your menu changes
• 109 litres in one deep drawer with a built-in easy-grab handle, rated to hold up to 35 kg of food
• Slim 455mm-wide footprint for tight kitchens
• Food-safe stainless steel exterior and interior
• R290 natural refrigerant, designed to run efficiently in rooms up to 40°C
• CoolSmart electronic controller
• Fully automatic air-cooled condensing unit, with defrost water vaporised using recycled compressor heat, so no drain is needed
• Magnetic balloon gasket for a tight seal, and high-density polyurethane insulation with low GWP and zero ODP
• Castors at the rear and adjustable feet at the front for stability, helium leak tested

Specifications:

• Model: Williams VAZ5CTDR1-HC
• Capacity: 109 litres
• Dimensions: 455 W x 734 D x 870 H mm (on castors)
• Weight: 130 kg unpacked
• Temperature range: variable, +1°C to +4°C (fridge) or -18°C to -22°C (freezer)
• Maximum room temperature: 40°C
• Refrigerant: R290 hydrocarbon
• Power: 10 amp plug, 1.77 A running current, 2 m power cable
• Energy use: 4.24 kWh per 24 hours, tested to EN 16825 (climate class 4)
• Drawers: 1, GN pan compatible
• Finish: stainless steel interior and exterior (excluding rear and underside)
• Ventilation: rear
• Origin: UK

Good to know before you buy:

• Access: at 455mm wide and 870mm high it fits through any normal doorway, but it weighs 130 kg. Delivery is by tailgate truck to the front of your premises.
• Power: plugs into a standard 10 amp power point with a 2 m cable.
• Airflow: the unit is rear ventilated, so leave a gap behind it and keep the vents clear.
• Drain: none needed. Defrost water is evaporated using heat from the compressor.

Compare similar models:

• Williams VAZ5CTDR2-HC: the same 455mm-wide cabinet with two drawers instead of one
• Williams VSWCD1L-HC: low 455mm-high single drawer unit, 1100mm wide, takes 2 x 1/1 GN pans
• Williams VSWCD1S-HC: two stacked 1100mm-wide drawer units, each independently fridge or freezer

Common questions:

Is it really 455 litres?
No. The 455 in the name is its width in millimetres. Williams rates the cabinet at 109 litres, enough for about 35 kg of food in the single drawer.

Can I run it as a freezer all the time?
Yes. Set it to freezer mode and it holds -18°C to -22°C. You can switch back to fridge mode whenever you need to.

Do you install it?
There is nothing to install. It plugs into a standard 10 amp outlet and needs no drain. We supply the equipment only.

See all our dual temp fridge / freezer units.

Warranty: Williams 24-month parts and labour warranty from the date of invoice on this self-contained unit, carried out by Williams authorised service agents on the Australian mainland. Warranty repairs must be logged with Williams first.
