Yasaki JDR-520/3N - Floor Dough Sheeter, 500mm Belt, Three-Phase
Yasaki JDR-520/3N - Floor Dough Sheeter, 500mm Belt, Three-Phase
SKU: JDR-520/3N
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 2550 W x 880 D x 1180 H mm. Check doorways and access on the way in.
- Weight: 180 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 375W, 415V three phase (3N~). Three-phase power needs a licensed electrician to connect.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
Yasaki JDR-520/3N - Floor Dough Sheeter, 500mm Belt, Three-Phase

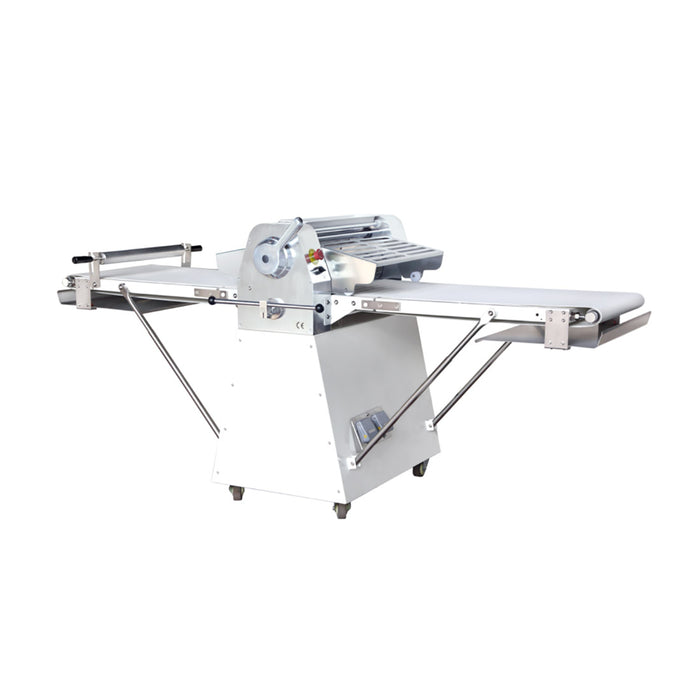

The Yasaki JDR-520/3N is a floor-standing dough sheeter for bakeries and patisseries that sheet pastry and dough in volume. It has a 500mm belt with 960mm tables, rolls from 1 to 35mm thick through large hard chrome rollers, and takes up to 5 kg of dough. Compared with the benchtop JDR-520B, it stands on the floor, has longer tables and runs on three-phase power; the JDR-650/3N is the wider 630mm belt version.
Key features:
- Floor-standing sheeter with a 500mm belt and 960mm tables
- Thickness adjustable from 1 to 35mm
- Large 40mm roller opening with large hard chrome rollers
- Dough capacity of 5 kg
- Steel, stainless steel and aluminium construction rather than plastic parts and casings
- Scraper assemblies that are easy to remove and clean, with low replacement cost
- Safety guards with internal safety switching
- Food-grade conveyor belt (not a cotton belt) and no external switches for flour to get into
- Rollers are locked in position internally, with no ratchet, and the conveyor drive rollers are easy to reach for cleaning in the folded position
Specifications:
- Model: Yasaki JDR-520/3N
- Belt width: 500 mm
- Table length: 960 mm
- Thickness range: 1–35 mm
- Roller opening: 40 mm
- Dough capacity: 5 kg
- Dimensions: 2550 W x 880 D x 1180 H mm
- Weight: 180 kg
- Power: 375W, 415V three phase (3N~)
- Packed size for delivery: 720 x 970 x 1720 mm
Good to know before you buy:
- Power: it runs on 415V three-phase power and must be connected by a licensed electrician. We supply the equipment only.
- Floor space: FED lists it at 2550mm wide and 880mm deep, so measure the space you have for it.
- Access: it weighs 180 kg and arrives packed at 720 x 970 x 1720 mm, delivered by tailgate truck to the front of your premises. Standard delivery doesn't include bringing it inside, up stairs or unpacking, so check doorways and ceiling heights along the way in.
- Cleaning: FED notes that dough left to build up on the rollers can cause a bump under the belt that catches on the scrapers and rips the belt, so keep the rollers clean.
Compare similar models:
- Yasaki JDR-520B: benchtop version, 500mm belt, 830mm tables, single phase 10 A
- Yasaki JDR-650/3N: floor model, wider 630mm belt, 1200mm tables, 6.5 kg dough
- Mecnosud PSM6120: floor pastry sheeter with 600mm rollers, three phase
Common questions:
What does "/3N" mean?
It shows the machine runs on three-phase power (415V, 3N~). The JDR-520B is the single-phase bench version.
Do you install it?
We supply the equipment only. It must be connected to three-phase power by a licensed electrician in your area.
How much dough can it take?
FED rates it for up to 5 kg of dough, rolled from 1 to 35mm thick.
See all our bakery and pizza prep equipment.
Warranty: 2 years parts and labour.
