Yasaki JDR-650/3N - Floor Dough Sheeter, 630mm Belt, Three-Phase
Yasaki JDR-650/3N - Floor Dough Sheeter, 630mm Belt, Three-Phase
SKU: JDR-650/3N
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 2950 W x 1100 D x 1180 H mm. Check doorways and access on the way in.
- Weight: 200 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 750W, 415V three phase (3N~). Three-phase power needs a licensed electrician to connect.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
Yasaki JDR-650/3N - Floor Dough Sheeter, 630mm Belt, Three-Phase

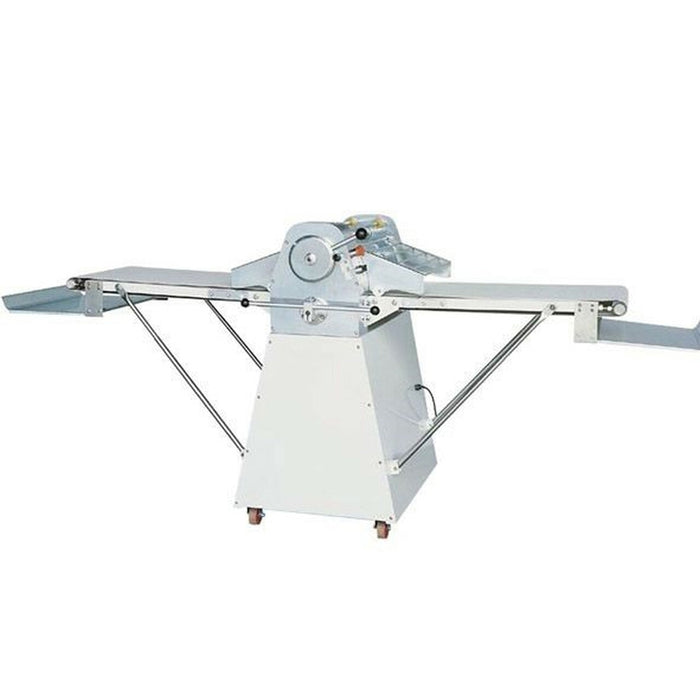

The Yasaki JDR-650/3N is the largest Yasaki dough sheeter, a floor-standing machine with a wide 630mm belt and long 1200mm tables for bakeries and patisseries sheeting big batches. It rolls from 1 to 35mm thick and takes up to 6.5 kg of dough, against 5 kg on the 500mm belt models. Like the JDR-520/3N, it runs on three-phase power, with a larger 750W motor.
Key features:
- Wide 630mm belt with 1200mm tables
- Thickness adjustable from 1 to 35mm
- Large 40mm roller opening with large hard chrome rollers
- Dough capacity of 6.5 kg
- Steel, stainless steel and aluminium construction rather than plastic parts and casings
- Scraper assemblies that are easy to remove and clean, with low replacement cost
- Safety guards with internal safety switching
- Food-grade conveyor belt (not a cotton belt) and no external switches for flour to get into
- Rollers are locked in position internally, with no ratchet, and the conveyor drive rollers are easy to reach for cleaning in the folded position
Specifications:
- Model: Yasaki JDR-650/3N
- Belt width: 630 mm
- Table length: 1200 mm
- Thickness range: 1–35 mm
- Roller opening: 40 mm
- Dough capacity: 6.5 kg
- Dimensions: 2950 W x 1100 D x 1180 H mm
- Weight: 200 kg
- Power: 750W, 415V three phase (3N~)
- Packed size for delivery: 720 x 1100 x 1850 mm
Good to know before you buy:
- Power: it runs on 415V three-phase power and must be connected by a licensed electrician. We supply the equipment only.
- Floor space: FED lists it at 2950mm wide and 1100mm deep, so measure your space carefully.
- Access: it weighs 200 kg and arrives packed at 720 x 1100 x 1850 mm, delivered by tailgate truck to the front of your premises. Standard delivery doesn't include bringing it inside, up stairs or unpacking, so check doorways and ceiling heights along the way in.
- Cleaning: FED notes that dough left to build up on the rollers can cause a bump under the belt that catches on the scrapers and rips the belt, so keep the rollers clean.
Compare similar models:
- Yasaki JDR-520/3N: floor model, 500mm belt, 960mm tables, 5 kg dough
- Yasaki JDR-520B: benchtop model, 500mm belt, single phase 10 A
- Mecnosud PSM6120: floor pastry sheeter with 600mm rollers, three phase
Common questions:
How does it compare with the JDR-520/3N?
It has a wider 630mm belt (against 500mm), longer 1200mm tables (against 960mm), a 6.5 kg dough capacity (against 5 kg) and a 750W motor. Both are three-phase floor models.
Do you install it?
We supply the equipment only. It must be connected to three-phase power by a licensed electrician in your area.
How thin can it sheet?
Thickness adjusts from 1mm up to 35mm.
See all our bakery and pizza prep equipment.
Warranty: 2 years parts and labour.
