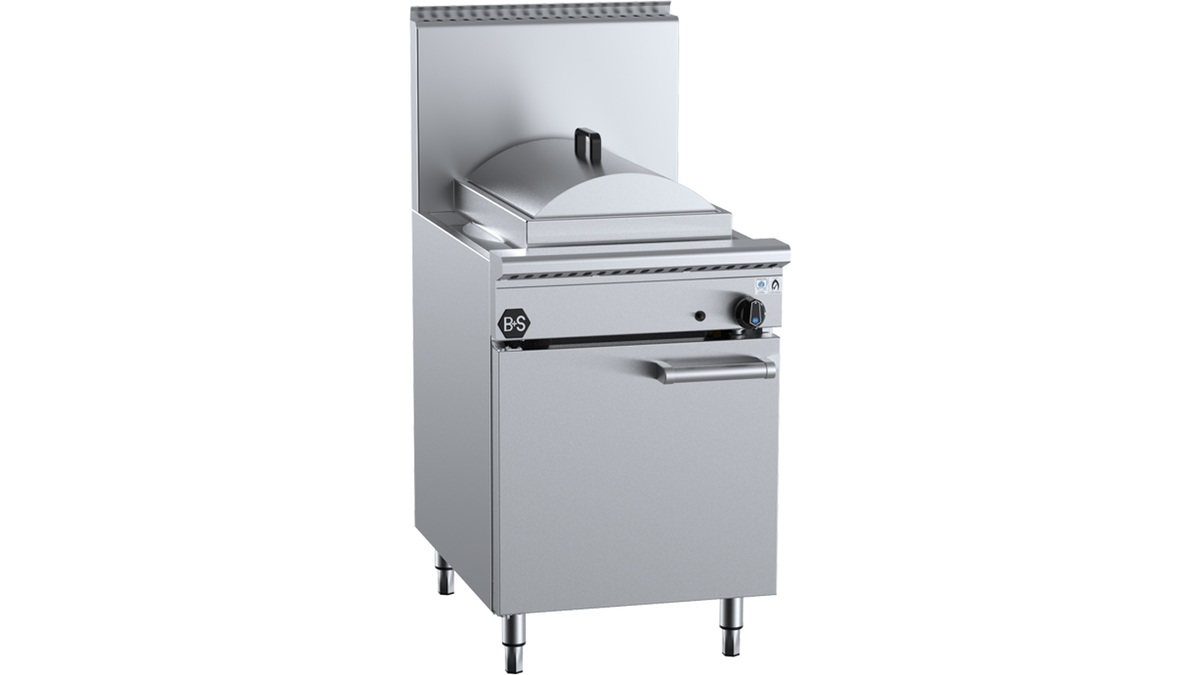

B+S Black CFPSF-1HE - 600mm Waterless Gas Steamer with Cheung Fun Insert

B+S Black CFPSF-1HE - 600mm Waterless Gas Steamer with Cheung Fun Insert

The B+S Black CFPSF-1HE is a single hole gas steamer set up for cheung fun (steamed rice noodle rolls), for Chinese restaurants and hotels. It shares its 87.5 MJ burner, 37 L auto refill tank and size with the YCJSF-1HE. The difference is on top, where this model has a 5 mm aluminium perforated plate, a cheung fun adapter and a lightweight lid in place of the 7 hole steaming plate.

Key features:

• Cheung fun adapter and lightweight lid provided
• Aluminium perforated steaming plate, 5 mm thick
• 87.5 MJ 18 jet duck bill burner
• Insulated heat exchange chamber, 2 mm thick
• Efficient omnidirectional conically perforated steam vent
• Automatic ball float refill mechanism and overheat tank safety protection device
• Flame failure included as standard, with piezo ignition to the pilot
• AISI grade stainless steel, heavy duty stainless steel cabinet frame and front access to all components

Specifications:

• Model: CFPSF-1HE
• Dimensions: 600 W x 840 D x 1300 H mm
• Gas: 87.5 MJ/h natural gas, 84 MJ/h LPG
• Water capacity: 37 L
• Water inlet: 1/2 inch copper
• Drain: 3/4 inch BSP female
• Waste: 1-1/2 inch BSP male
• Gas connection: 3/4 inch BSP male
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Gas regulator: included
• Gas approval: GMK 10697

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. The water and waste connections also need a licensed plumber. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 600 x 840 x 1300 mm unit.
• Options: B+S also offers non-swivel rear castors (set of two), a 21 inch steamer lid cover with handle, a 21 inch steamer tray set (body and tray) and a 600 x 50 mm plinth kit. Ask us for a price.

Compare similar models:

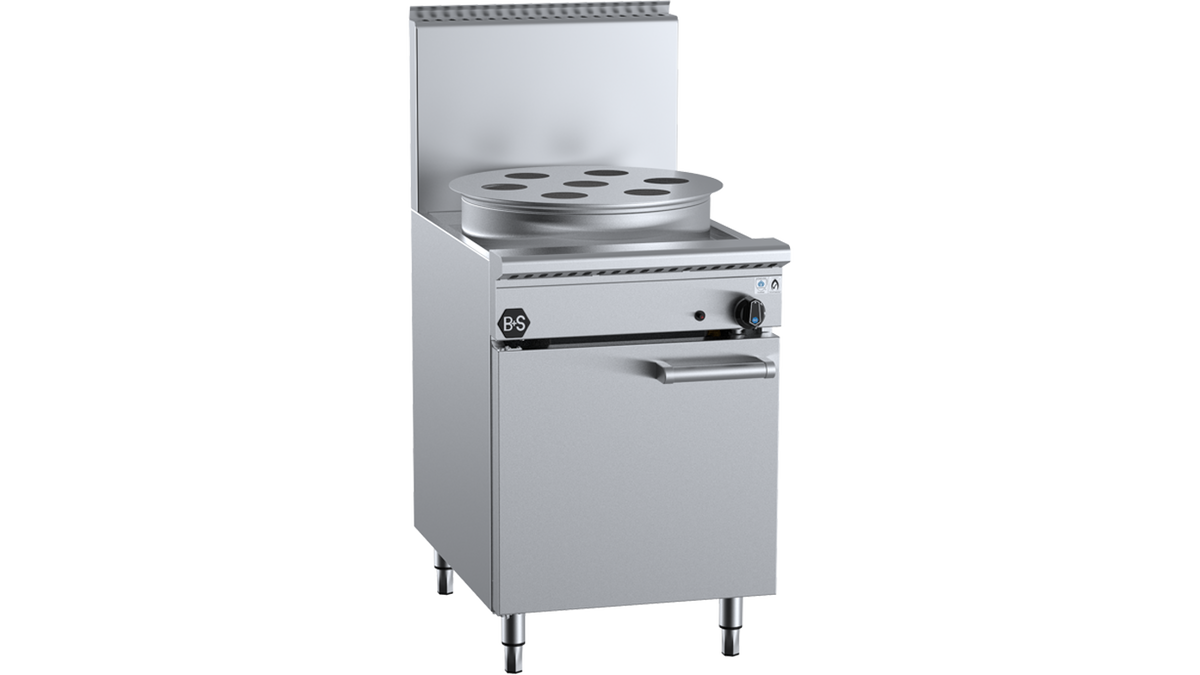

• B+S Black YCJSF-1HE: same size and burner, with a 7 hole steaming plate and no cheung fun adapter

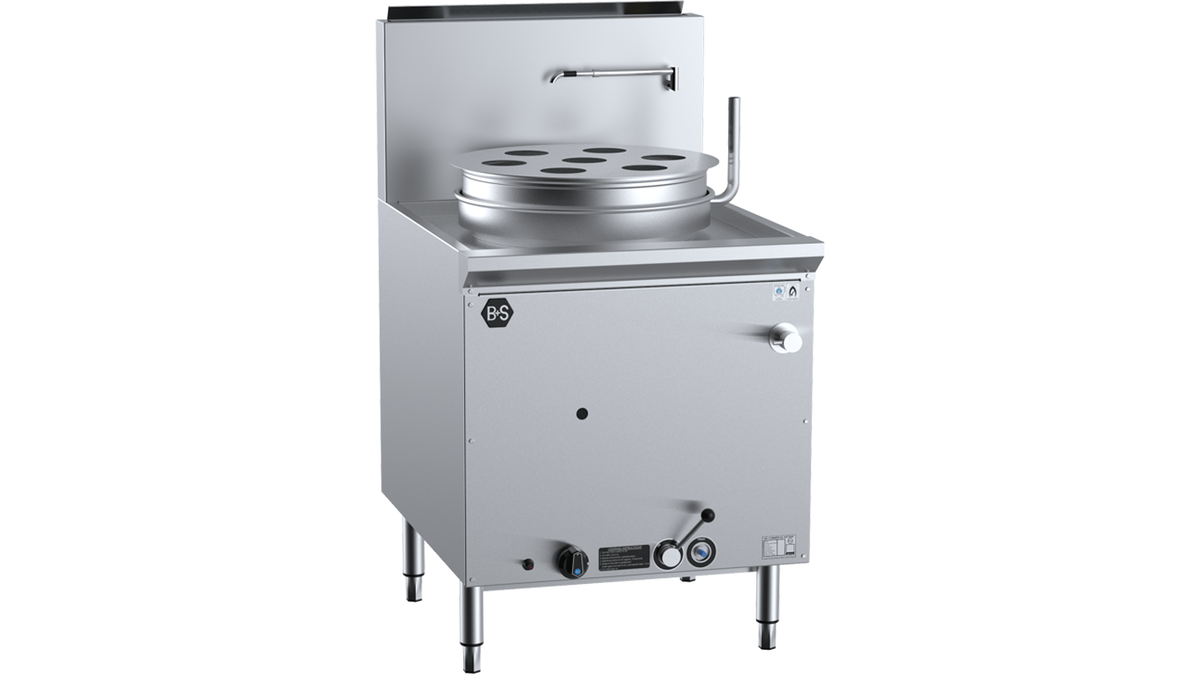

• B+S Black YCJSF-1: pot steamer, 750 x 900 mm, 64 L, 130 MJ/h natural gas

Common questions:

Is this the right model if I mainly steam baskets?
Probably not. If baskets are your main use and cheung fun is not on the menu, the YCJSF-1HE with its 7 hole plate is the plain steamer version.

Does it need a power point?
No. It connects to gas, water and drain lines, and it lights with piezo ignition.

Will it line up with a wok table?
Yes. It is 840 mm deep and 1300 mm high, the same as the B+S Black waterless wok tables.

See all our commercial noodle cookers and steamers.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
