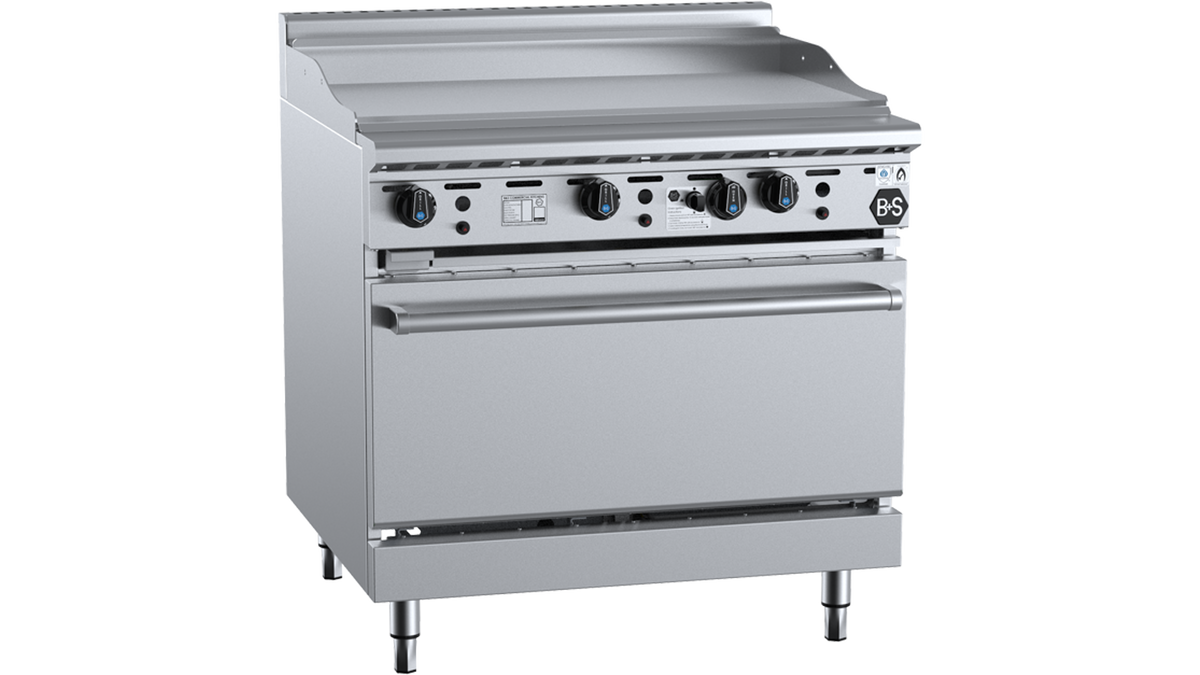

B+S Black OV-GRP9 - 900mm Grill Plate Gas Range with Oven
B+S Black OV-GRP9 - 900mm Grill Plate Gas Range with Oven
SKU: OV-GRP9
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 24-month B+S parts and labour warranty, from the date of installation. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 900 W x 840 D x 1030 H mm. Check doorways and access on the way in.
- Gas: needs a licensed gas fitter to connect. Choose natural gas or LPG when you order, where offered.
- Installation type: Floor standing.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
B+S Black OV-GRP9 - 900mm Grill Plate Gas Range with Oven
The OV-GRP9 is a 900mm wide range with a full width 20 mm thick grill plate over a wide gas oven, and no open burners. It suits a high volume burger or breakfast kitchen where the plate does most of the work. Its plate is thicker than the 16 mm plate on the 600mm OV-GRP6, and its oven is 785 mm wide instead of 485 mm.
Key features:
- 900mm mild steel grill plate, 20 mm thick, top welded with a smooth finish, heated by 3 x 22 MJ tube burners
- 29 MJ stainless steel oven burner with natural convection and a solid mild steel base plate for even heat
- German made thermostat for accurate temperature control
- Insulated drop down door with a spring hinge system
- Flame failure standard, with a multi-setting gas valve
- Heavy duty AISI grade stainless steel frame, fat spillage trays and easy access to components
Specifications:
- Model: OV-GRP9
- Dimensions: 900 W x 840 D x 1030 H mm
- Gas: 95 MJ/h natural gas, 94 MJ/h LPG
- Burners: 3 x 22 MJ grill plate, 1 x 29 MJ oven
- Internal oven: 630 D x 785 W x 290 H mm (height from lowest rack position)
- Gas connection: 3/4 inch BSP female, regulator included
- Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
- Gas approval: GMK 10686
Good to know before you buy:
- Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
- Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
- Access: delivered by tailgate truck to the front of your premises. Check doorways for a 900 x 840 x 1030 mm unit.
- Options: B+S also offers a chrome plated grill plate, non-swivel rear castors and a 900 x 50 mm plinth kit. Ask us for a price.
Compare similar models:
- OV-GRP6 (600mm): a 600mm, 16 mm thick plate over a narrower oven.
- OV-SB4-GRP3 (900mm): four open burners and a 300mm plate, with a fan option.
- GRP-9 (900mm): same plate on an open stand with an undershelf and no oven.
Common questions:
Is a fan forced oven available?
Not on this model. The fan option is available on the combination ranges with open burners, such as the OV-SB4-GRP3.
Is the plate thicker than on other ranges?
Yes, at 20 mm it is the thickest in this oven family. The 300mm plates are 12 mm and the 600mm plates are 16 mm.
How is the gas load split?
On natural gas, the three plate burners account for 66 MJ/h and the oven burner for 29 MJ/h. With no open burners, that is well under the 175 MJ/h of the OV-SB4-GRP3 at the same width.
See all our commercial stoves and oven ranges.
Warranty: 24-month B+S parts and labour warranty, from the date of installation.
