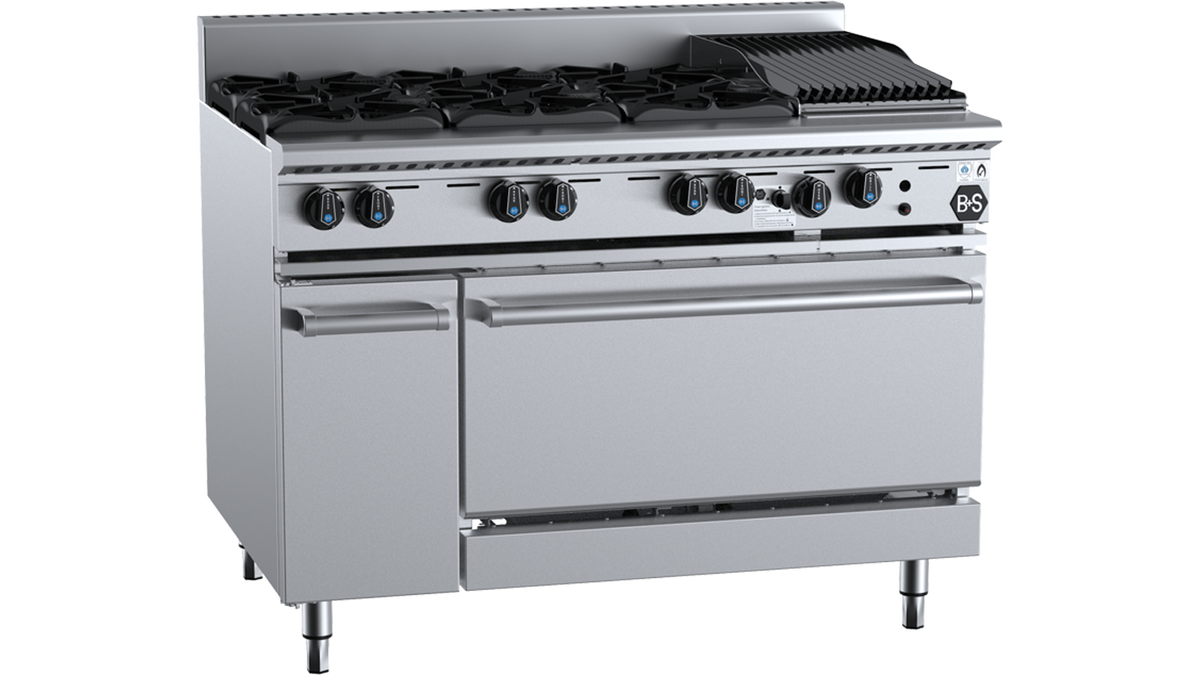

B+S Black OV-SB6-CBR3 - 1200mm 6 Burner & Char Broiler Gas Range with Oven

B+S Black OV-SB6-CBR3 - 1200mm 6 Burner & Char Broiler Gas Range with Oven

The OV-SB6-CBR3 has six 31 MJ open burners, a 300mm char broiler, a gas oven and a 300mm storage cabinet across 1200mm. It suits a busy restaurant or hotel kitchen that grills as well as boils and bakes. The OV-SB6-GRP3 has a flat plate instead of grates, and the OV-SB4-CBR3 is the 900mm version without the cabinet.

Key features:

• 6 x 31 MJ black enamelled, Italian made open burners on vitreous enamelled trivets
• 300mm char broiler with a 34 MJ U-burner, cast iron radiant hood and reversible J-grates for an inclined or flat surface
• 29 MJ stainless steel oven burner with natural convection and a solid mild steel base plate for even heat
• German made thermostat for accurate temperature control
• Insulated drop down door with a spring hinge system
• Flame failure standard, with a multi-setting gas valve
• Heavy duty AISI grade stainless steel frame with a 300mm storage cabinet, fat spillage trays and easy access to components

Specifications:

• Model: OV-SB6-CBR3
• Dimensions: 1200 W x 840 D x 1030 H mm
• Gas: 249 MJ/h natural gas, 208 MJ/h LPG
• Burners: 6 x 31 MJ open, 1 x 34 MJ char broiler, 1 x 29 MJ oven
• Internal oven: 630 D x 785 W x 290 H mm (height from lowest rack position)
• Gas connection: 3/4 inch BSP female, regulator included
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Fan forced option: 10 A plug, 1.2 m lead, 30 W fan
• Gas approval: GMK 10686

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 1200 x 840 x 1030 mm unit.
• Options: B+S also offers a fan forced oven, a pilot per burner, non-swivel rear castors and a 1200 x 50 mm plinth kit. Ask us for a price.

Compare similar models:

• OV-SB6-GRP3 (1200mm): same layout with a 300mm grill plate instead of the char broiler.
• OV-SB8 (1200mm): eight open burners and no char section.
• BT-SB6-CBR3 (1200mm): same top on an open stand with an undershelf and no oven.

Common questions:

How is the gas load split?
On natural gas, the six open burners account for 186 MJ/h, the char broiler burner for 34 MJ/h and the oven burner for 29 MJ/h.

Do the open burners have pilots?
Not as standard. Pilots are priced per burner, so tell us how many of the six you want and we will quote that.

Do I get two ovens for that width?
No, it has one oven, 785 mm wide inside, with the 300mm cabinet next to it.

See all our commercial stoves and oven ranges.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
