ConvectMax YXD-3AE - 62L Convection Oven with Grill, 10A
ConvectMax YXD-3AE - 62L Convection Oven with Grill, 10A
SKU: YXD-3AE
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 595 W x 595 D x 585 H mm. Check doorways and access on the way in.
- Weight: 38 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 2.4 kW, 240V, 10 A.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
ConvectMax YXD-3AE - 62L Convection Oven with Grill, 10A
The ConvectMax YXD-3AE is a 62 litre convection oven with a built-in grill, so one compact unit can bake pastries and cookies, roast, and brown or finish dishes. Dual round heaters and two high-speed fans spread heat evenly over four included trays, and a change-over switch flicks between convection and grill. It has simple dial controls from 50 to 300°C, plugs into a 10 A power point, and carries a 2 year warranty; the YXD-3DI is the digital version.

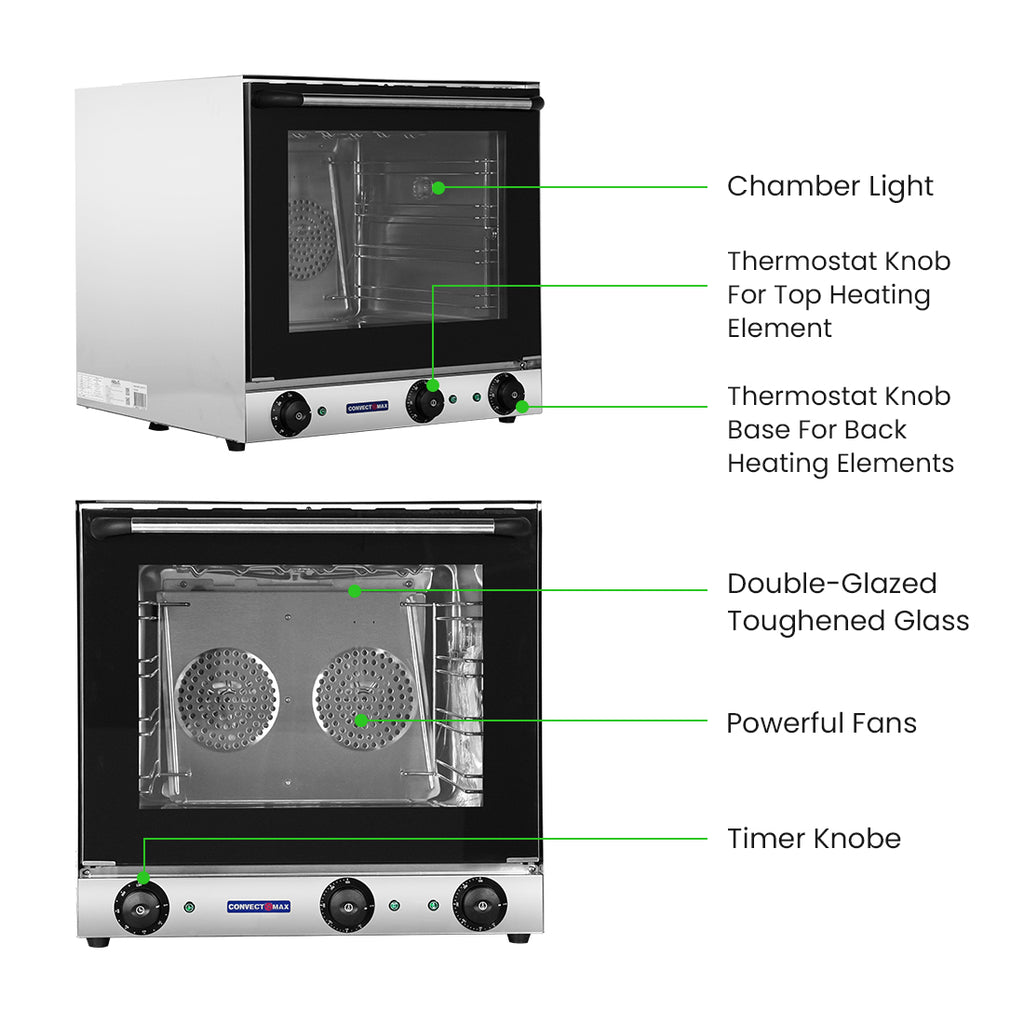

Key features:
- 62 litre chamber, stainless steel inside and out
- Convection and grill functions, switched with a change-over switch
- Manual control with 3 knobs, 50–300°C
- Dual round heaters plus two high-speed fans, with a stainless steel baffle for even heat
- 120-minute timer with bell, plus timing and heating indicator lights
- 360°C safety cut-out with a reset button

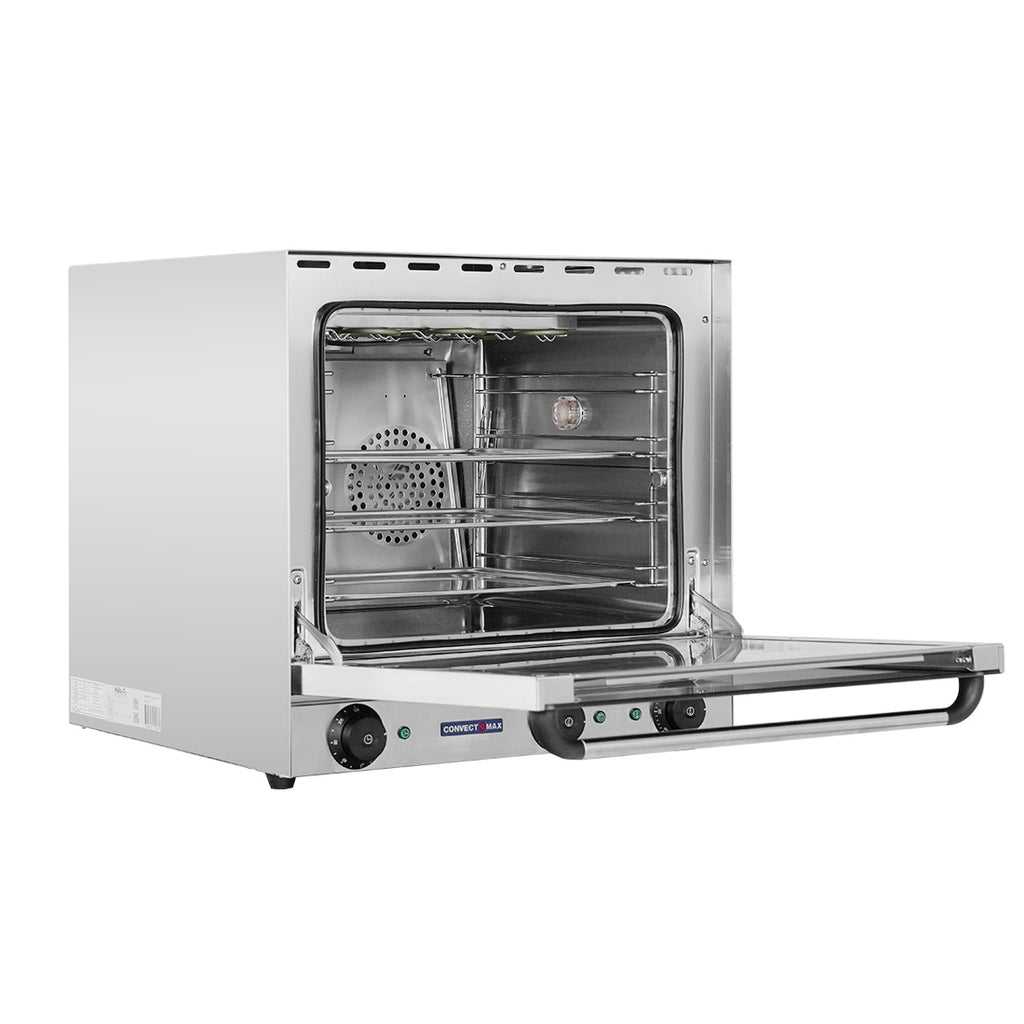

- Chamber light and double-glazed, cool-touch tempered glass door that latches open at 90°

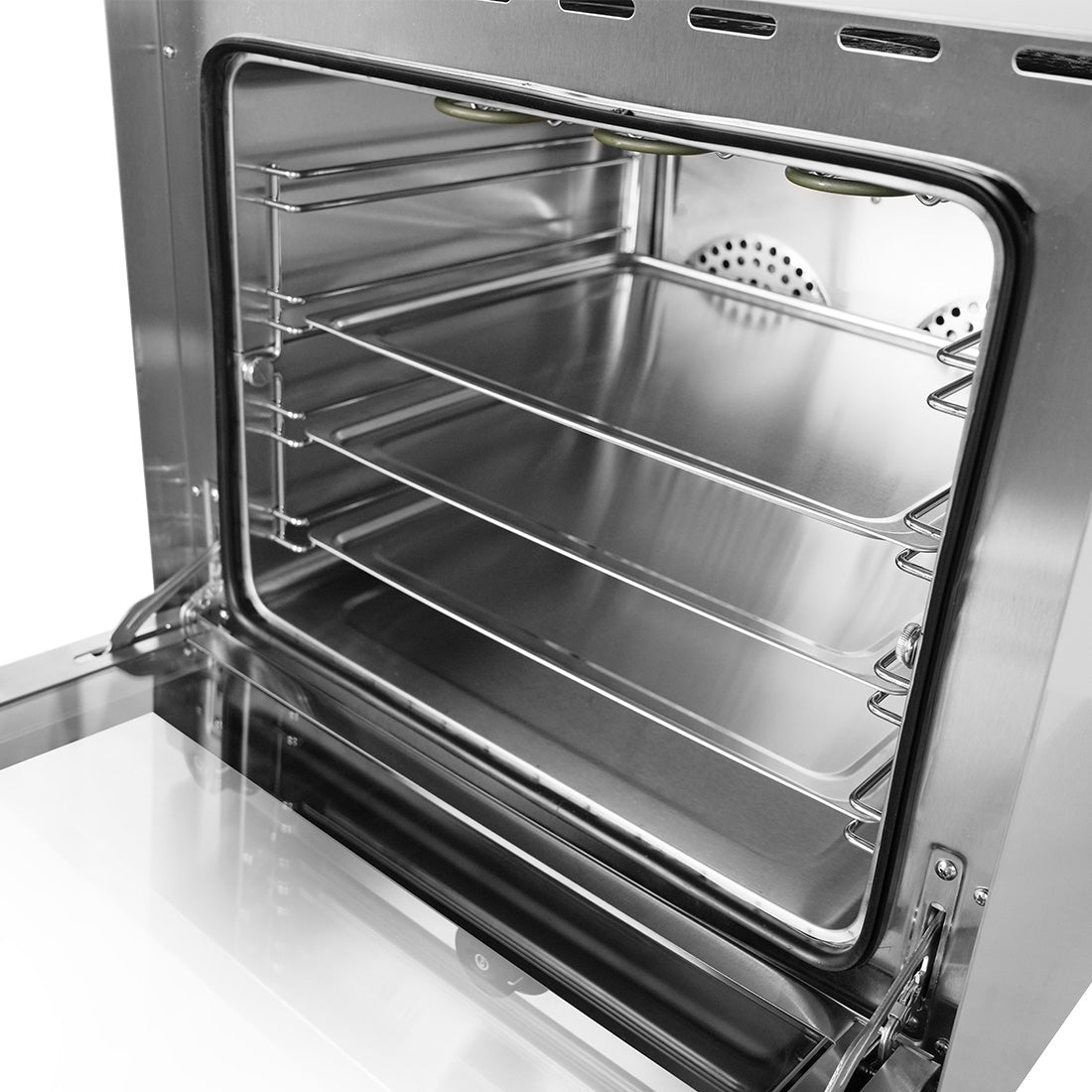

- Four aluminium baking trays included, 75mm apart, on nickel-coated supports
- 5-side insulation and rounded chamber corners for easy cleaning
Specifications:
- Model: ConvectMax YXD-3AE
- Capacity: 62 litres gross (60 litres net), 4 trays of 437 x 314mm (included)
- Tray spacing: 75mm
- Temperature range: 50–300°C
- Preheating time: about 22 minutes to 260°C
- Internal chamber: 460 W x 375 D x 360 H mm
- Dimensions: 595 W x 595 D x 585 H mm
- Weight: 38 kg
- Power: 2.4 kW, 240V, 10 A
- Water protection: IPX3
- Materials: AISI 430 stainless steel exterior, AISI 201 stainless steel interior
- Packed size for delivery: 640 W x 660 D x 640 H mm
Good to know before you buy:
- Power: plugs into a standard 240V, 10 A power point.
- Bench space: it is 595mm wide and 595mm deep. Allow room for the door to open and space around the oven for ventilation.
- Accessories: a 325 x 450mm wire grid is available as an option. Ask us for a price.
Compare similar models:
- ConvectMax YXD-3DI: same oven with digital controls, 50–260°C
- ConvectMax YXD-1AE: compact 4 tray oven without grill, 530mm deep
- ConvectMax YXD-6A: larger 4 x GN 1/1 oven with grill and cook and hold
Common questions:
Can I grill and bake at the same time?
You switch between convection and grill with the change-over switch, so you can bake, then brown or finish with the grill.
How hot does it get, and how fast?
The thermostat runs from 50 to 300°C, and FED quotes about 22 minutes to preheat to 260°C.
YXD-3AE or YXD-3DI?
Same size, capacity and grill. The YXD-3AE has dials and goes up to 300°C. The YXD-3DI has a digital panel, runs 50–260°C and switches to standby after 60 minutes of inactivity.
See all our commercial convection ovens.
Warranty: 2 years parts and labour.
Customer reviews
No reviews yet. Bought this from us? Tell other buyers how it’s going.
