ConvectMax YXD-3DI - 62L Digital Convection Oven with Grill, 10A
ConvectMax YXD-3DI - 62L Digital Convection Oven with Grill, 10A
SKU: YXD-3DI
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 595 W x 595 D x 585 H mm. Check doorways and access on the way in.
- Weight: 38 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 2.4 kW, 240V, 10 A.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
ConvectMax YXD-3DI - 62L Digital Convection Oven with Grill, 10A

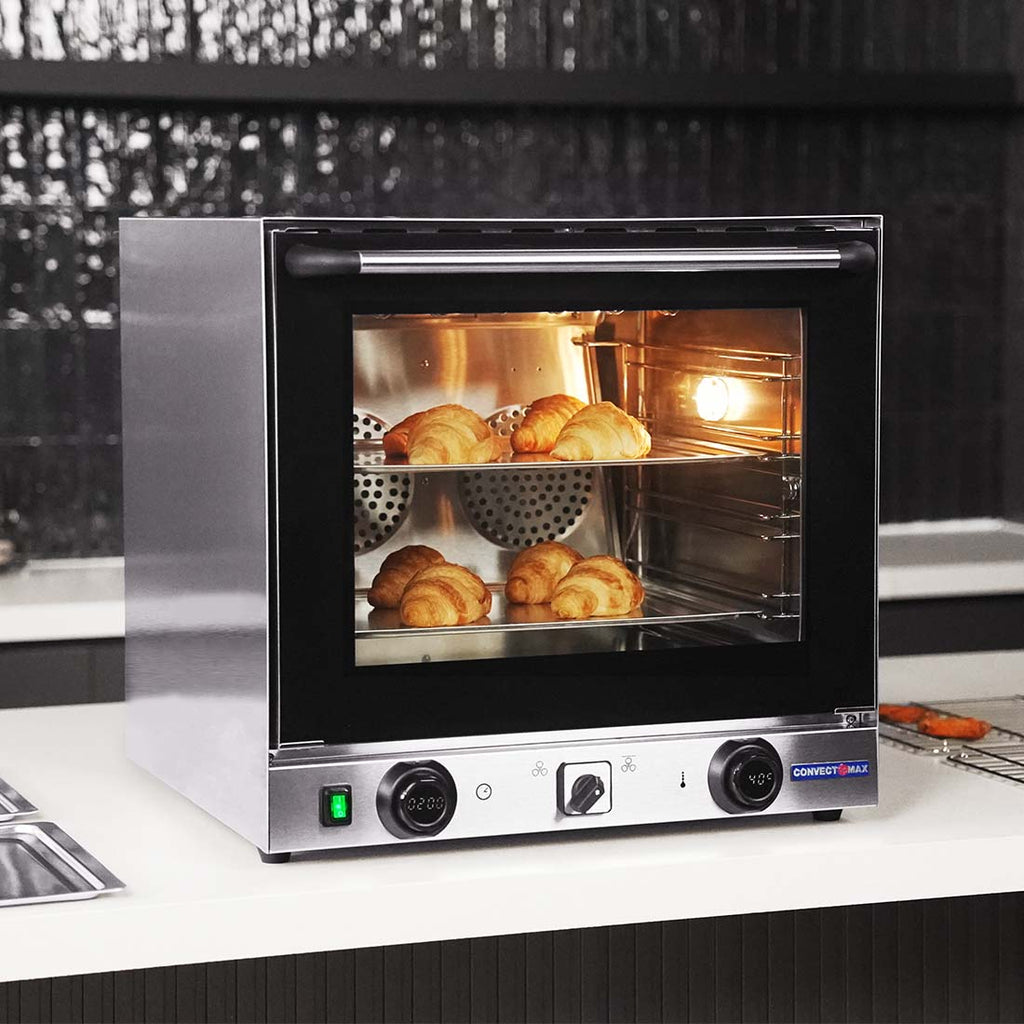

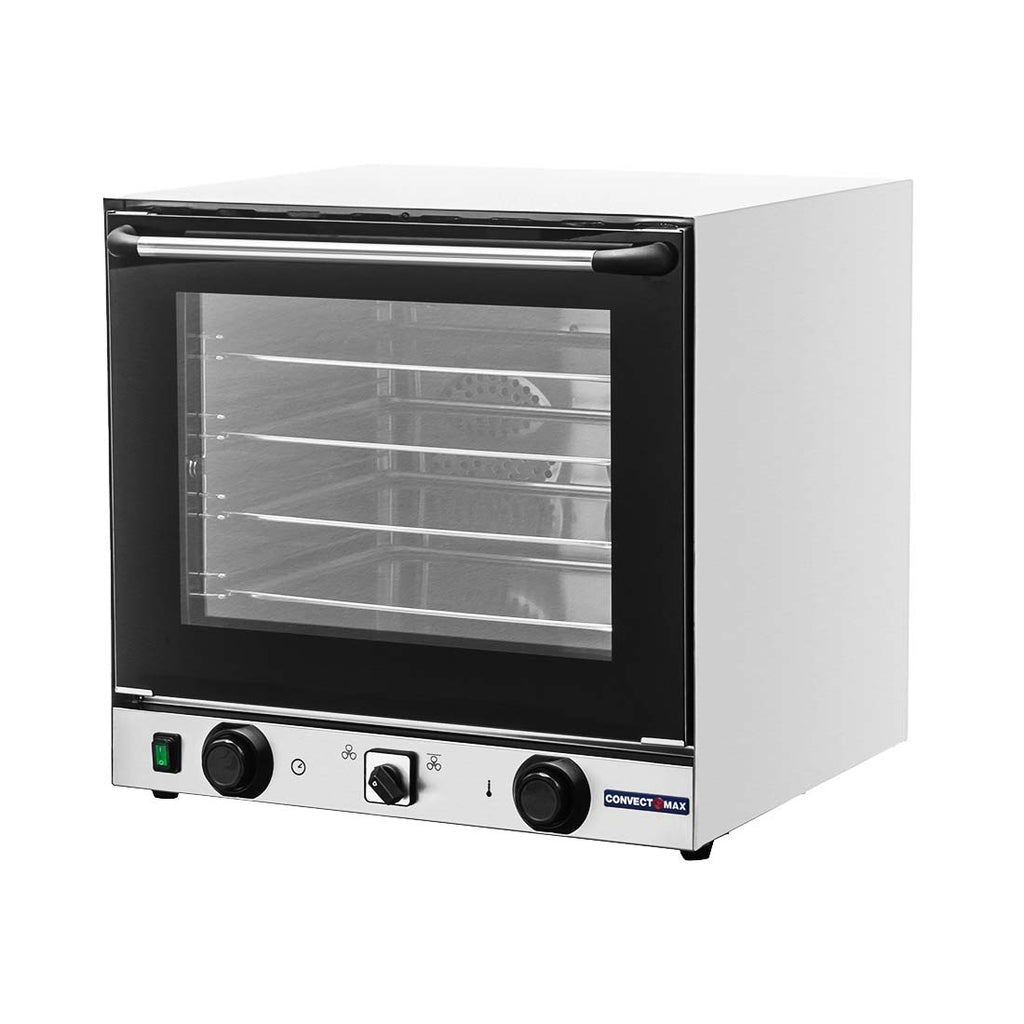

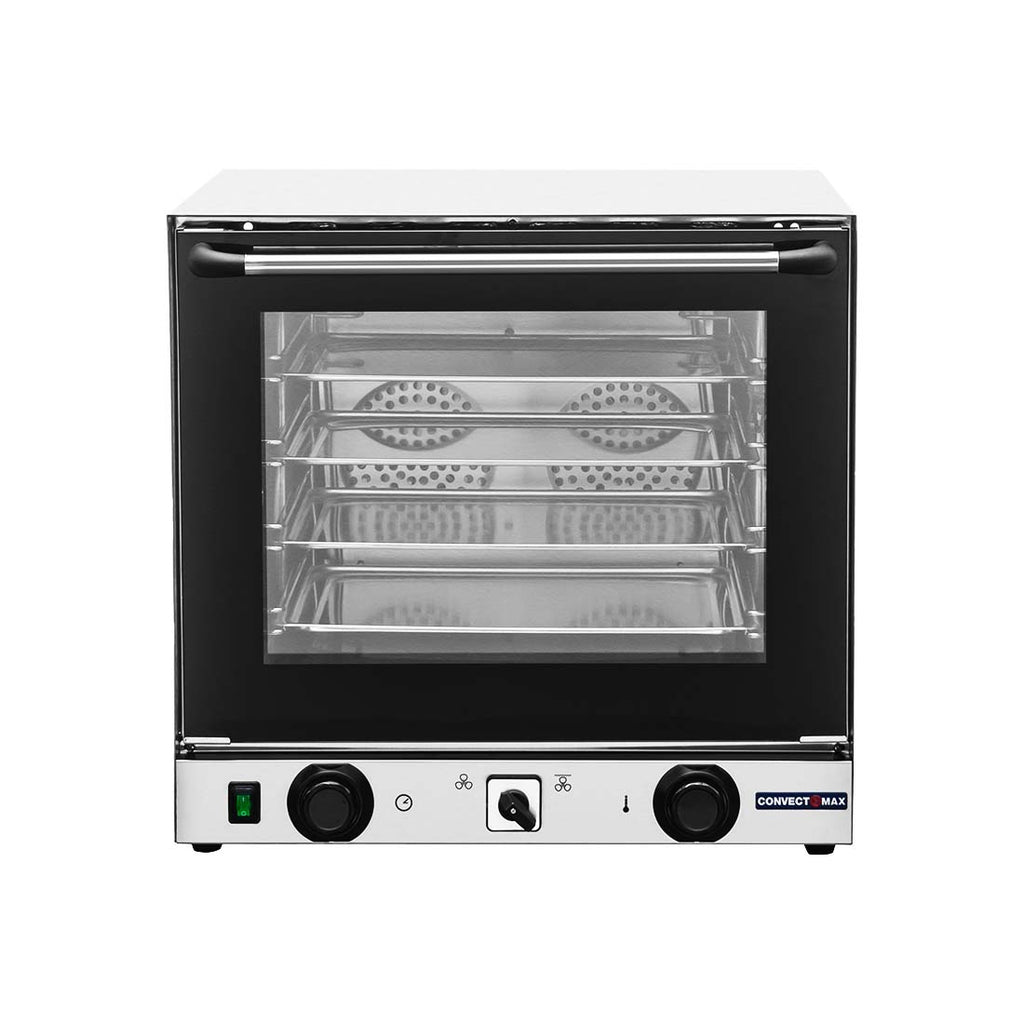

The ConvectMax YXD-3DI puts a digital control panel on a 62 litre convection oven with a built-in grill, for cafes, bakeries and kitchens that want accurate temperatures and fast, even results from a 10 A plug. Dual round heaters and two high-speed fans cook evenly across four included trays, and the grill browns and finishes when you need it. It is the same size as the dial-controlled YXD-3AE, with precise digital settings from 50 to 260°C and an energy-saving standby mode.

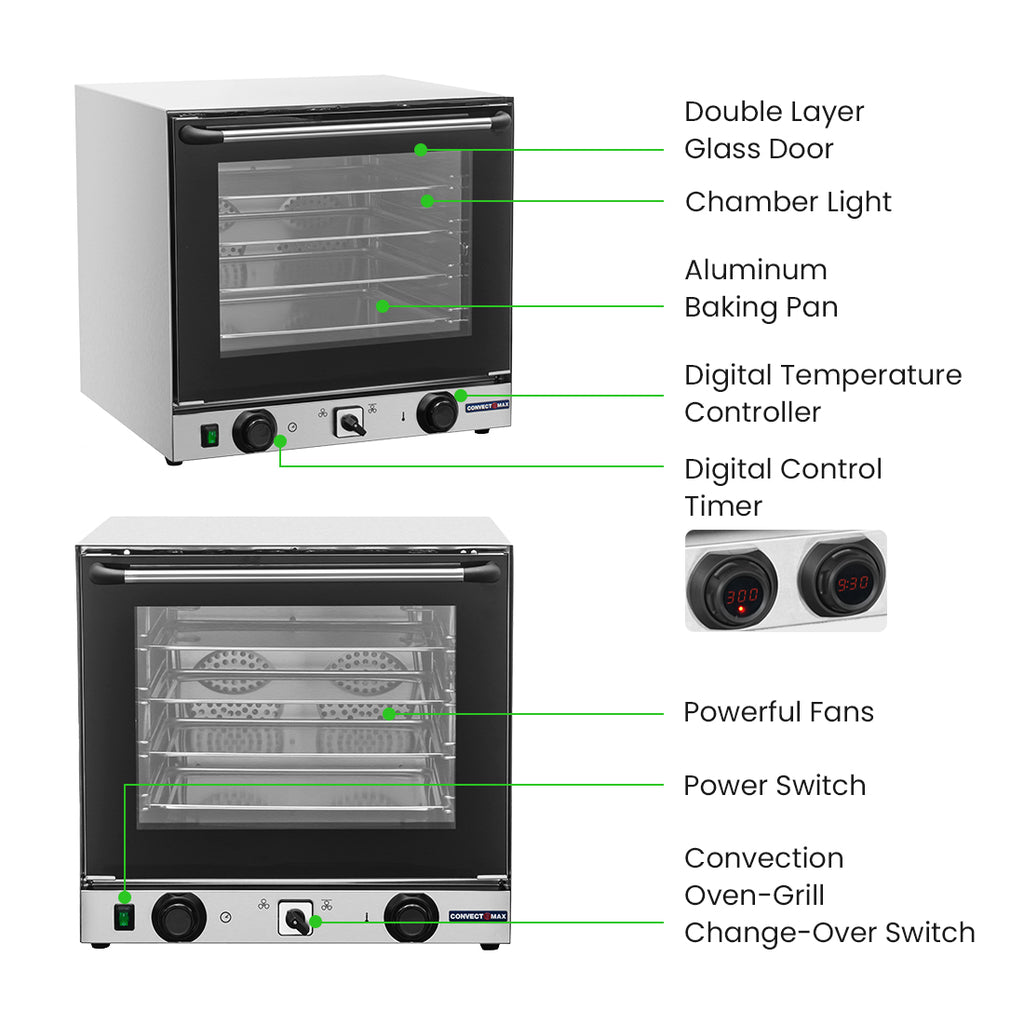

Key features:

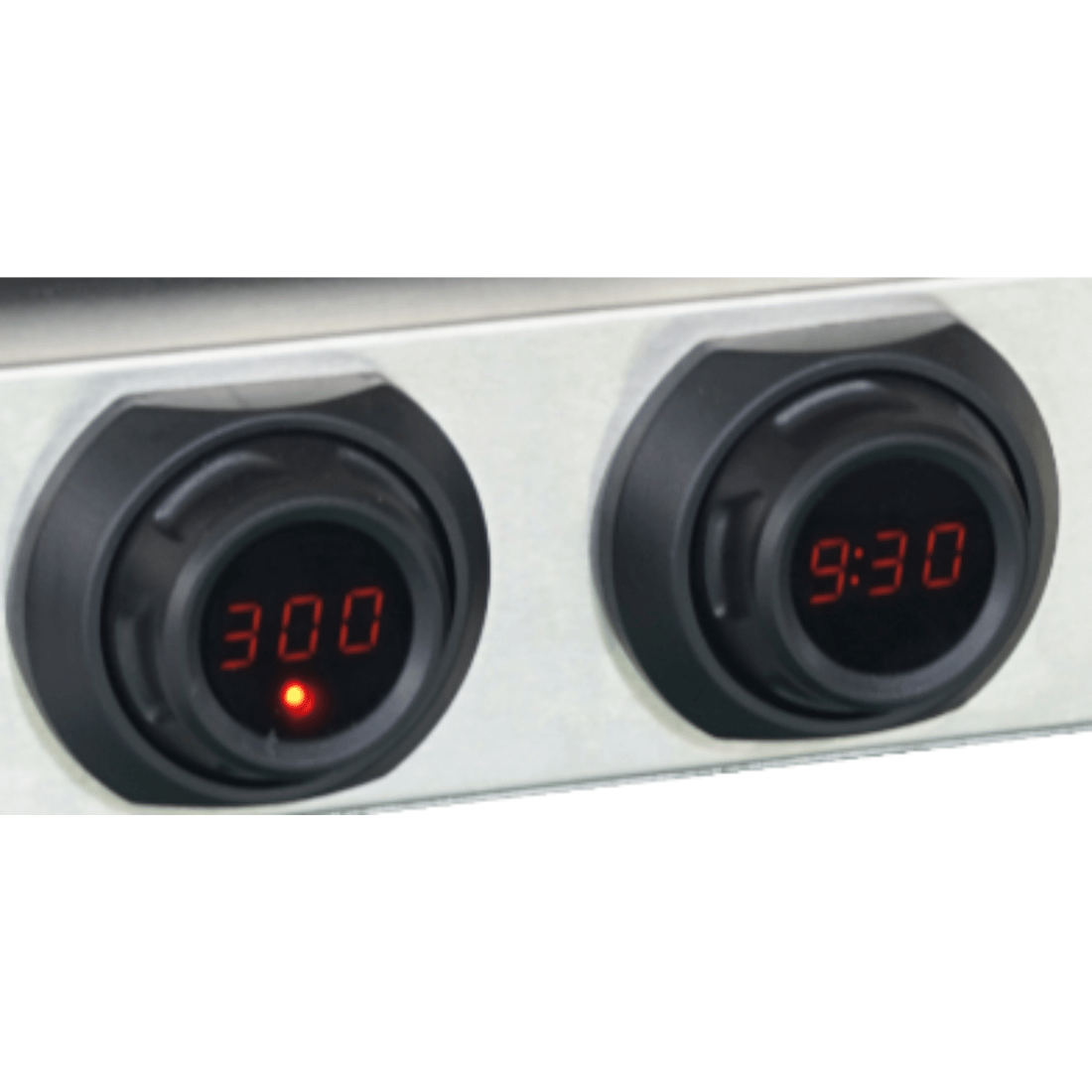

- Digital control panel for accurate temperature settings, 50–260°C
- Built-in grill for finishing and browning, switched with a change-over switch
- 62 litre chamber, stainless steel inside and out

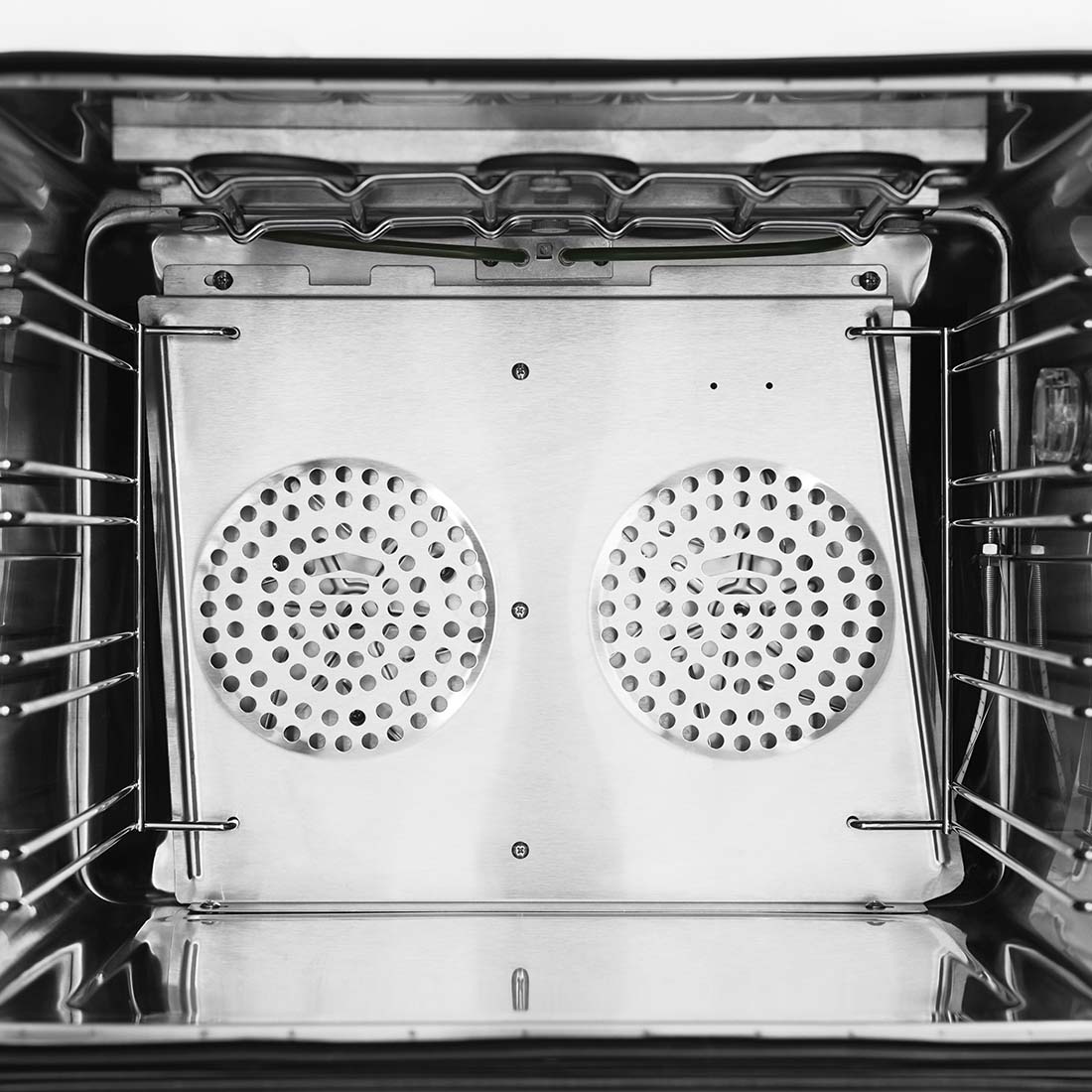

- Dual round heaters plus two high-speed fans, with a stainless steel baffle for even heat
- 120-minute timer with bell
- Switches to standby after 60 minutes of inactivity

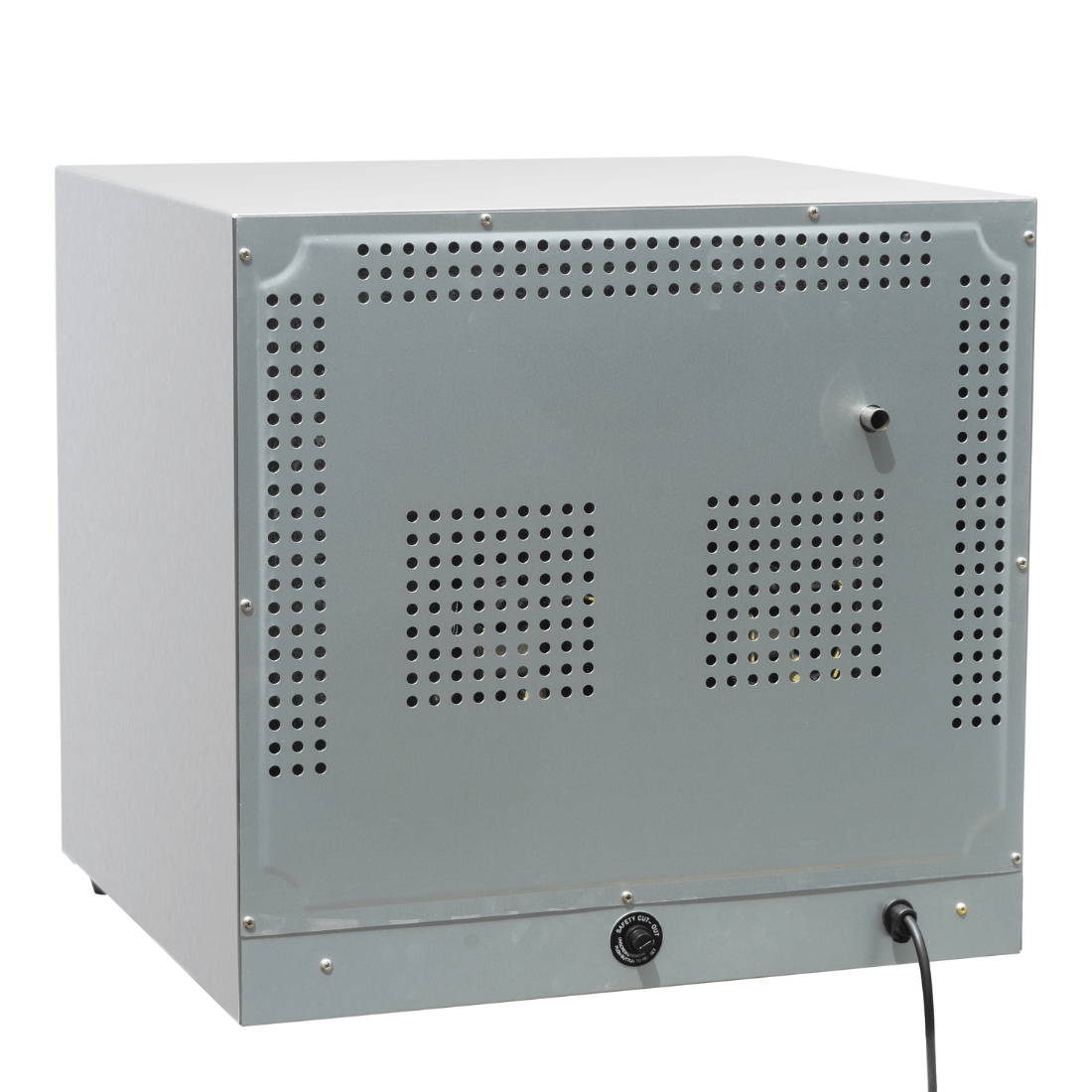

- 360°C safety cut-out with a reset button

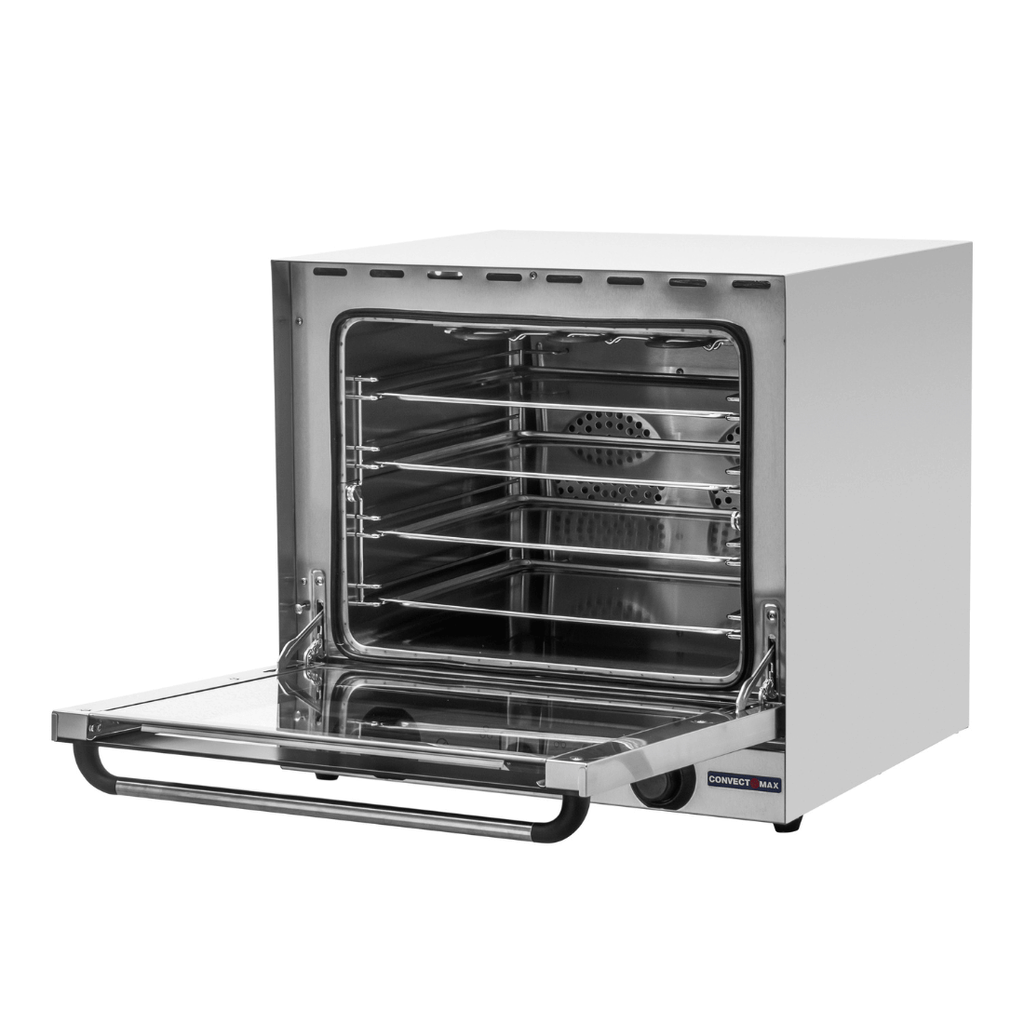

- Chamber light and double-glazed, cool-touch tempered glass door that latches open at 90°
- Four 437 x 314mm aluminium trays included, 75mm apart
Specifications:
- Model: ConvectMax YXD-3DI
- Capacity: 62 litres gross (60 litres net), 4 trays of 437 x 314mm (included)
- Tray spacing: 75mm
- Temperature range: 50–260°C
- Preheating time: about 22 minutes to 260°C
- Internal chamber: 460 W x 375 D x 360 H mm
- Dimensions: 595 W x 595 D x 585 H mm
- Weight: 38 kg
- Power: 2.4 kW, 240V, 10 A
- Water protection: IPX3
- Materials: AISI 430 stainless steel exterior, AISI 201 stainless steel interior, 5-side insulation
- Packed size for delivery: 660 W x 640 D x 640 H mm
Good to know before you buy:
- Power: plugs into a standard 240V, 10 A power point.
- Temperature: the digital model tops out at 260°C. If you need up to 300°C, the dial-controlled YXD-3AE goes higher.
- Accessories: a 325 x 450mm wire grid is available as an option. Ask us for a price.
Compare similar models:
- ConvectMax YXD-3AE: same oven with dial controls, 50–300°C
- ConvectMax YXD-1DI: compact digital 4 tray oven without grill, 530mm deep
- ConvectMax YXD-6A: larger 4 x GN 1/1 oven with grill and cook and hold
- ConvectMax YXD-8A/15E: 4 full-size 600 x 400mm trays with steam, 15 A
Common questions:
Are the trays included?
Yes. Four 437 x 314mm aluminium trays come with the oven, on nickel-coated supports spaced 75mm apart.
Does it turn itself off?
It switches to standby after 60 minutes of inactivity, which saves power during quiet periods.
What plug does it need?
A standard 240V, 10 A power point. It draws 2.4 kW.
See all our commercial convection ovens.
Warranty: 2 years parts and labour.
